Makita AN942 Nailer Parts

Makita AN942 Parts

31 Degree Clipped Head Framing Nailer

Download Schematic

Time to buy a new tool?

Makita AN942

31 Degree Clipped He...

$324.99

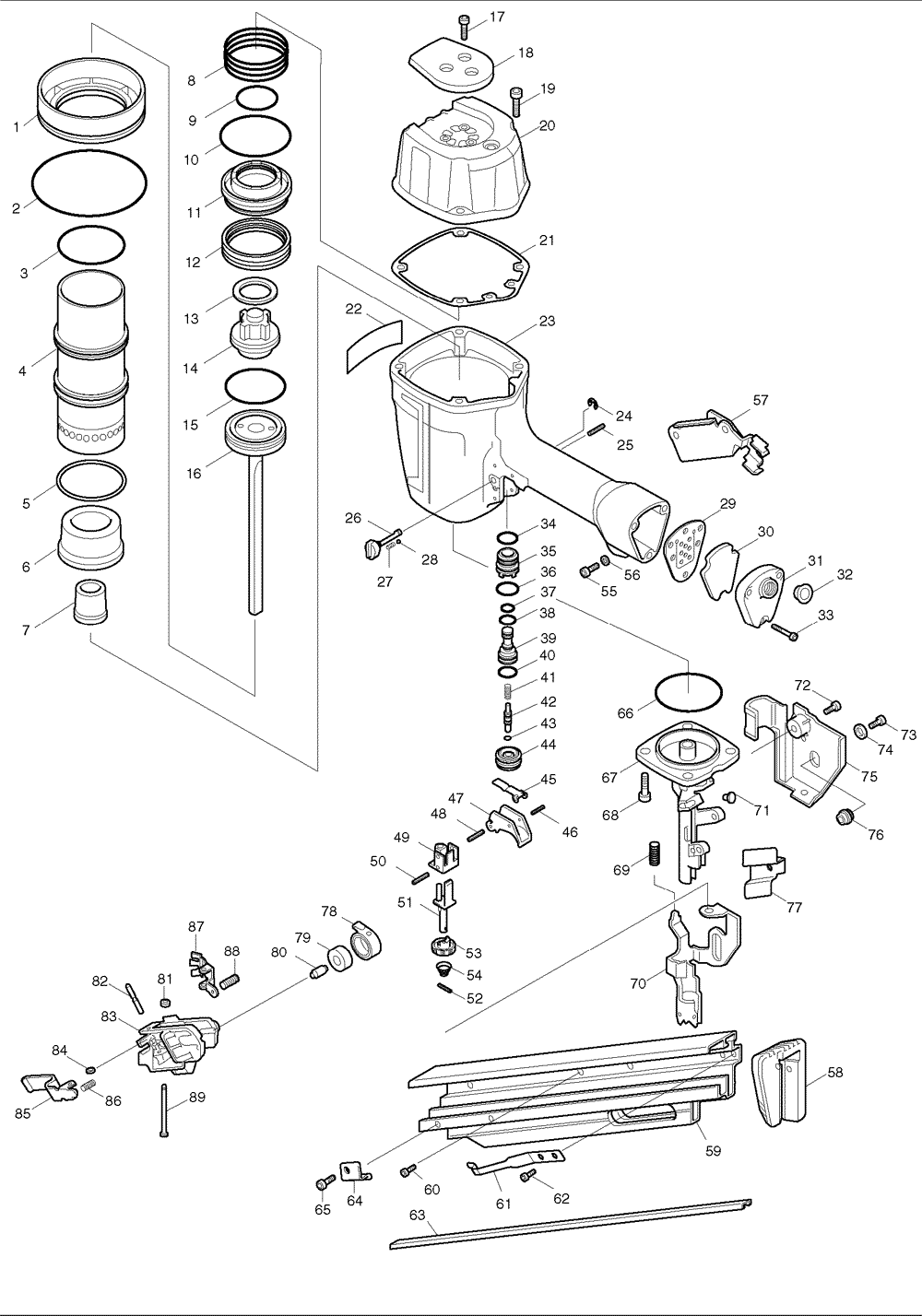

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	416892-1	CYLINDER SEPARATOR, AN922	$6.80
2	213809-3	O RING 87, HM1307CB	$5.15
3	213668-5	O RING 60, AN922	$1.85
4	331548-4	CYLINDER, AN922	$67.50
5	213667-7	O RING 61, HM1800	$15.71
6	421680-3	CUSHION F, AN922	$25.61
7	421687-9	CUSHION GUIDE, AN922	$9.22
8	233243-1	COMPRESSION SPRING 50, AN922	$3.50
9	213504-5	O RING, 9820-2	$1.96
10	213669-3	O RING 56, AN922	$1.74
11	416891-3	HEAD VALVE, AN922	$13.62
12	421679-8	VALVE SEAT, AN922	$7.68
13	267742-1	WASHER 34, AN922	$2.18
14	421678-0	CUSHION R, AN922	$13.62
15	213619-8	O RING 49, AN922	$1.41
16	151618-1	DRIVER CPL.,AN942	$127.85
17	265976-0	H.S.H. BOLT M5X10,9040L	$3.61
18	344764-9	EXHAUST COVER, AN922	$5.15
19	922342-1	H.S.H. BOLT M6X25, HR2511	$1.34
20	317168-8	TOP CAP, AN922	$51.90
21	162209-3	TOP CAP GASKET, AN922	$6.80
22	851639-0	NAME PLATE, AN942	$1.36
23	151731-5	HOUSING COMPLETE, AN922	$77.70
24	961011-9	STOP RING E-4, 4301BV	$1.48
25	951075-1	SPRING PIN 3-28, AN611	$0.90
26	162208-5	LOCK PIN 6, AN922, AN901	$12.19
27	231236-2	COMP. SPRING 3, AN611	$1.34
28	216008-6	STEEL BALL 4.0, 5007NK	$0.53
29	162210-8	INLET CAP GASKET, AN922	$6.14
30	416890-5	INLET FILTER, AN922	$5.15
31	317169-6	INLET CAP, AN922	$18.24
32	286221-0	CAP 15, AN8300	$0.82
33	922252-2	H.S.H. BOLT M5X30, AF501	$1.34
34	213176-6	O RING 14, AN922	$0.82
35	417695-6	TRIGGER VALVE GUIDE, AN922	$4.71
36	213262-3	O RING 18, 5005BA	$1.96
37	213039-6	O RING 6, AN922	$0.82
38	213040-1	O RING 8, AN922	$0.82
39	317520-0	PILOT VALVE, AN922	$10.65
39	417694-8	PILOT VALVE, AN922-T2	$3.61
40	213122-9	O RING 12, AN922	$0.82
41	233239-2	COMPRESSION SPRING 3, AN922	$2.07
42	323852-5	TRIGGER VALVE STEM, AN922	$5.15
43	213044-3	O RING 3, AN901	$0.82
44	317521-8	TRIGGER VALVE CASE, AN922	$7.68
44	416805-2	TRIGGER VALVE CASE, AN922	$5.92
45	344265-7	IDLER, AN611	$3.17
46	258004-8	SPRING PIN 2.5-16, 420S	$2.07
47	415790-6	TRIGGER, AN611	$1.85
48	951075-1	SPRING PIN 3-28, AN611	$0.90
49	310084-3	HOLDER, AN922	$16.70
50	951075-1	SPRING PIN 3-28, AN611	$0.90
51	310085-1	STOPPER, AN922	$26.52
52	951060-4	SPRING PIN 3-14, 3707FC	$0.86
53	310056-8	ADJUSTER, AN611	$16.70
54	231978-8	CONICAL COMP SPRING 9-16, AN611	$2.07
55	265973-6	H.S.H.BOLT M5X20, AG125	$1.96
56	941101-4	F. WASHER 5, 5007NK	$0.75
57	165252-1	JOINT, AN942	$24.20
58	416897-1	MAGAZINE CAP, AN942	$10.65
59	153958-3	MAGAZINE CPL., AN942	$122.81
60	266218-5	H.S.H. BOLT M6X10, AN922	$1.41
61	344767-3	NAIL STOPPER, AN922	$3.50
62	922216-6	H.S.H. BOLT M5X14, 5077B	$1.34
63	344768-1	MAGAZINE RAIL, AN942	$18.24
64	344765-7	HOLDER, AN922	$3.50
65	266218-5	H.S.H. BOLT M6X10, AN922	$1.41
66	213654-6	O RING 60, HR3851	$1.96
67	310070-4	DRIVER GUIDE, AN942	$236.69
68	265469-7	H.S.H. BOLT M8X25, AN922	$1.85
69	233080-3	COMPRESSION SPRING 8, AN922	$2.07
70	344773-8	CONTACT ARM, AN942	$38.35
71	421418-6	RUBBER PIN 9.5, AN611	$1.41
72	266218-5	H.S.H. BOLT M6X10, AN922	$1.41
73	265962-1	H.S.H. BOLT M6X20, AN8300	$3.17
74	253058-0	F. WASHER 7, 9030	$1.01
75	417614-2	COVER, AN942	$6.14
76	267743-9	SHOULDER WASHER 6, AN922	$3.72
77	344766-5	HOLDER, AN922	$5.15
78	163410-3	SPIRAL SPRING COMPLETE, AN922	$19.67
79	414639-7	SPRING GUIDE, AN922	$2.07
80	256428-2	PIN 5-8, AN8300	$3.50
81	262054-7	URETHANE RING 3, AN451	$1.85
82	256760-4	PIN 4, AN922	$1.85
83	416895-5	PUSHER LEVER, AN942	$8.45
84	262054-7	URETHANE RING 3, AN451	$1.85
85	344770-4	LOCK PLATE, AN922	$5.15
86	231309-1	.COMP. SPRING 5, AF502	$2.07
87	344771-2	PUSHER, AN942	$7.68
88	233038-2	COMPRESSION SPRING 5, AN451	$2.07
89	268027-8	PIN 4, AN611	$3.50
1002	181434-7	OIL SUPPLY 30CC, AF502	$4.50
1003	421677-2	NOSE ADAPTER, AN922	$4.40
2001	193006-6	FIRST AID KIT, AN922	$97.00
