Makita AN8300 Nailer Parts

Makita AN8300 Nailer Parts Image

Makita AN8300 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

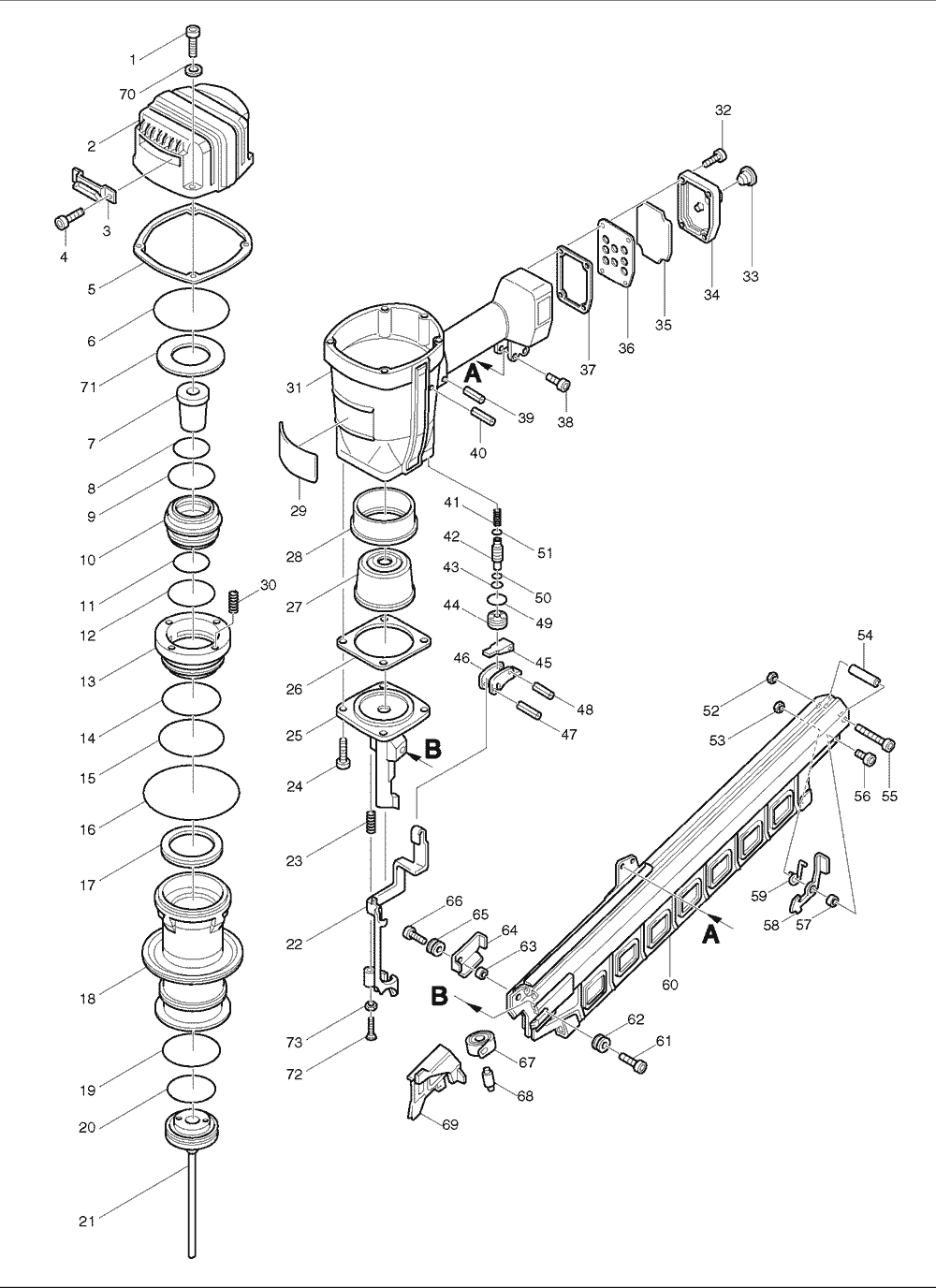

Makita AN8300 Nailer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 922342-1 H.S.H. BOLT M6X25, HR2511 $1.34
10 415425-9 MAIN VALVE, ,AN8300,T2 $97.40
2 150202-9 TOP CAP COMPLETE, AN8300 $100.30
18 150552-2 CYLINDER COMPLETE, AN8300 $97.98
33 286221-0 CAP 15, AN8300 $0.82
3 343737-9 EXHAUST COVER, AN8300 $5.15
4 922207-7 H.S.H. BOLT M5X10, JS1600 $1.34
18 150552-2 CYLINDER COMPLETE, AN8300 $97.98
52 931202-6 HEX NUT M5, HR2410 $0.79
5 442102-0 TOP CAP GASKET, AN8300 $11.75
6 213758-4 O RING 74, AN8300 $5.15
7 421371-6 CUSHION R, AN8300 $16.70
8 213558-2 O RING 42, LS1211 $3.61
9 213617-2 O RING 47, AN8300 $1.85
10 415425-9 MAIN VALVE, ,AN8300,T2 $97.40
11 213563-9 O RING 42, AN8300 $1.85
12 213617-2 O RING 47, AN8300 $1.85
13 316266-5 SUB VALVE, AN8300 $58.70
14 213658-8 O RING 56, AN8300 $4.71
15 213706-3 O RING 67, AN8300 $3.50
16 213809-3 O RING 87, HM1307CB $5.15
18 150552-2 CYLINDER COMPLETE, AN8300 $97.98
19 213664-3 O RING 60, AN8300 $1.85
20 213605-9 O RING 50, 6920B $3.28
21 150201-1 DRIVER COMPLETE, AN8300 $91.30
22 165067-6 CONTACT ARM,AN8300 $65.50
22 343735-3 CONTACT ARM, AN8300 $51.70
23 231489-3 COMP. SPRING 8, AN8300 $1.34
24 265386-1 H.S.H. BOLT M8X25, AN8300 $1.85
25 311934-5 DRIVER GUIDE, AN8300 $484.23
25 322355-6 DRIVER GUIDE, AN8300 $279.95
26 442101-2 DRIVER GUIDE GASKET, AN8300 $6.80
27 421372-4 CUSHION F, AN8300 $46.41
28 331359-7 CUSHION GUIDE, AN8300 $24.18
29 856601-0 NAME PLATE, AN8300 $1.36
30 231490-8 COMP. SPRING 5, AN8300 $1.34
31 159174-5 HOUSING COMP., AN8300 $159.76
32 922242-5 H.S.H. BOLT M5X25, AF502 $1.96
33 286221-0 CAP 15, AN8300 $0.82
34 316263-1 INLET CAP, AN8300 $24.84
35 414640-2 INLET FILTER, AN8300 $7.68
36 343892-7 FILTER HOLDER, AN8300 $5.15
37 442100-4 INLET CAP GASKET, AN8300 $7.68
38 266086-6 H.S.H.BOLT M5X16,DA4031 $1.48
38 265908-7 H.S.H. BOLT M5X16, JR3010 $1.96
39 258004-8 SPRING PIN 2.5-16, 420S $2.07
40 258010-3 SPRING PIN 2.5-25, AF502 $0.90
41 231398-6 COMP. SPRING 4, AF501 $0.90
42 322358-0 TRIGGER VALVE STEM, AN8300 $7.68
43 213005-3 O RING, 5277NB,5377NB $0.86
44 322357-2 TRIGGER VALVE CASE, AN8300 $21.10
45 341734-9 IDLER, AN8300 $3.50
46 343736-1 TRIGGER, AN8300 $6.14
47 951072-7 SPRING PIN 3-24, AN451 $0.90
48 951063-8 SPRING PIN 3-16, LC1230 $0.86
49 213218-6 O RING 16, AF502,HR2811F $0.82
50 213009-5 O RING 4, AF501 $0.53
51 213023-1 O RING 4, AF501 $0.82
52 931202-6 HEX NUT M5, HR2410 $0.79
53 931202-6 HEX NUT M5, HR2410 $0.79
54 322361-1 SLEEVE 5-36, AN8300 $5.15
55 265362-5 H.S.H. BOLT M5X45, AN8300 $4.71
56 265918-4 HEX SOCKET HEAD BOLT M5X12, 9627 $1.48
57 322362-9 SLEEVE 5-5, AN8300 $3.50
58 343734-5 LOCK LEVER, AN8300 $15.05
59 231596-2 TORSION SPRING 8, AN8300 $5.15
60 150265-5 MAGAZINE COMPLETE, AN8300 $198.95
61 265962-1 H.S.H. BOLT M6X20, AN8300 $3.17
62 322487-9 HOLDER , AN8300 $6.80
63 257635-0 SLEEVE 6, AN8300 $4.71
64 343733-7 CONTACT ARM GUIDE, AN8300 $7.02
65 322487-9 HOLDER , AN8300 $6.80
66 265963-9 H.S.H. BOLT M6X28, AN8300 $1.85
67 152389-3 SPIRAL SPRING COMP., AN8300 $15.05
68 256428-2 PIN 5-8, AN8300 $3.50
69 322356-4 PUSHER, AN8300 $64.50
70 253077-6 F. WASHER 6, 2040 $1.01
71 421486-9 URETHANE WASHER, AN8300 $10.10
72 265021-1 C.H. SCREW M8X50, AN8300 $4.71
73 931401-0 HEX NUT M8, 5201NA $1.34
1004 181434-7 OIL SUPPLY 30CC, AF502 $4.50
