Makita AN621 Nailer Parts

Makita AN621 Nailer Parts Image

Makita AN621 Parts
Pallet & Sheeting Coil Nailer

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita AN621
Pallet & Sheeting Co...
$369.99
Tool Diagram    (Click image to Zoom in) View larger Image

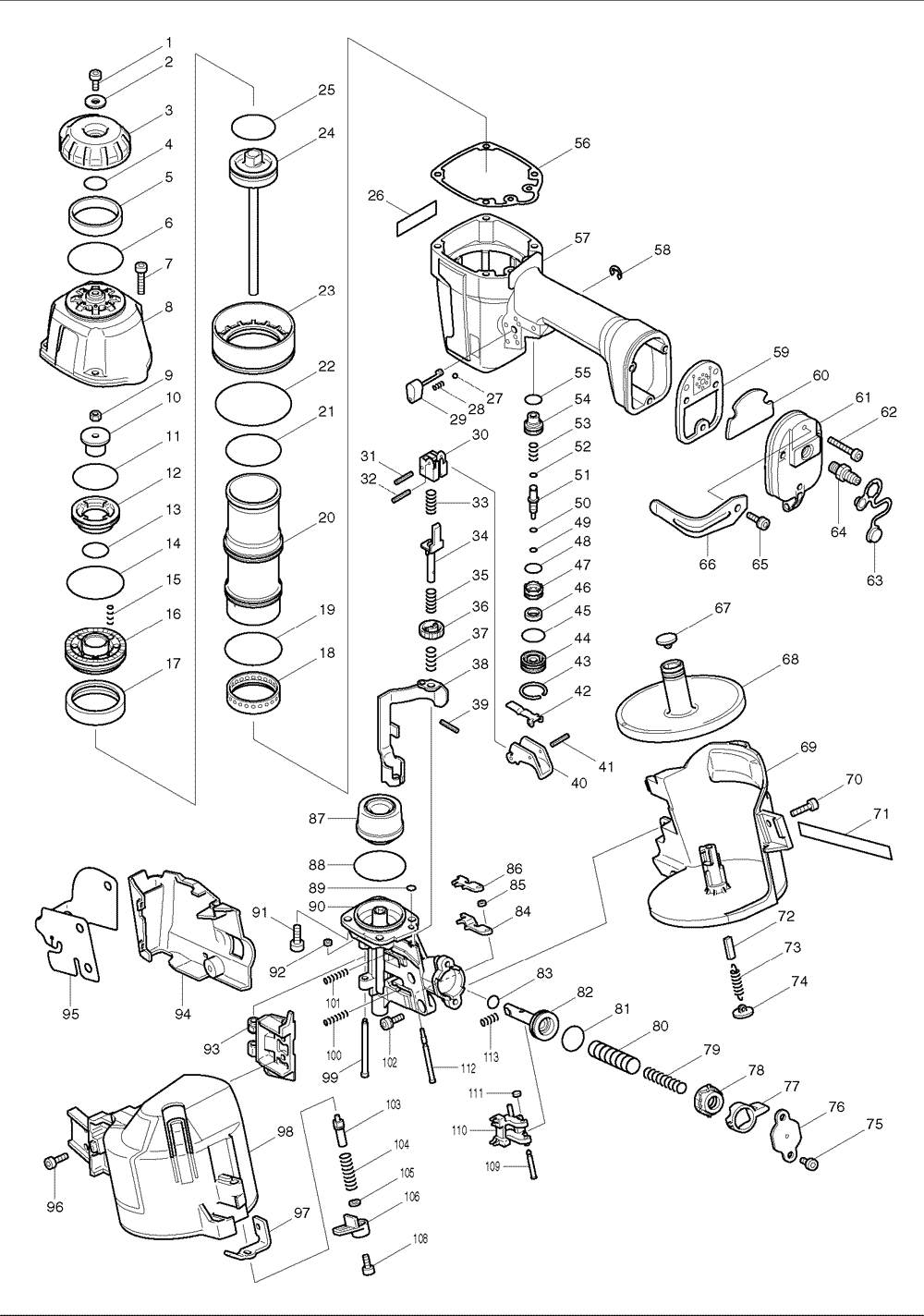

Makita AN621 Nailer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 265903-7 H.S.H.BOLT M5X12, AN451 $1.96
2 267171-8 FLAT WASHER 6, AN611 $1.63
3 317345-2 EXHAUST COVER, AN621 $12.19
4 213255-0 O RING 18, 4200H $0.86
5 323863-0 EXHAUST FILTER, AG125 $6.80
6 213604-1 O RING 50, 6911D $3.61
7 922242-5 H.S.H. BOLT M5X25, AF502 $1.96
8 317287-0 TOP CAP, AN611 $50.50
9 931202-6 HEX NUT M5, HR2410 $0.79
10 421573-4 CUSHION R, AN611 $9.22
11 213513-4 O RING 39, AN611 $1.41
12 416234-9 SEPARATOR, AN611 $5.15
13 213393-8 O RING 23, AN611 $0.82
14 213616-4 O RING 48, AN611 $1.41
15 233199-8 COMPRESSION SPRING 3, AN611 $1.34
16 416236-5 HEAD VALVE, AN611 $10.10
17 421576-8 VALVE SHEET, AN611 $6.14
18 323979-1 CUSHION GUIDE, AN621 $27.15
19 213616-4 O RING 48, AN611 $1.41
20 331573-5 CYLINDER, AN621 $43.86
21 213617-2 O RING 47, AN8300 $1.85
22 213706-3 O RING 67, AN8300 $3.50
23 416235-7 CYLINDER SEPARATOR, AN611 $9.22
24 152756-2 DRIVER CPL.,AN621 $85.90
25 213521-5 O RING 36, AN611 $1.41
26 852995-1 NAME PLATE, AN621 $0.89
27 216008-6 STEEL BALL 4.0, 5007NK $0.53
28 231236-2 COMP. SPRING 3, AN611 $1.34
29 162189-3 LOCK PIN 6, AN611 $10.65
30 344895-4 HOLDER, AN621 $3.17
31 951075-1 SPRING PIN 3-28, AN611 $0.90
32 951075-1 SPRING PIN 3-28, AN611 $0.90
33 233382-7 COMPRESSION SPRING 6, AN621 $1.96
34 310104-3 STOPPER, AN621 $27.94
35 233267-7 COMPRESSION SPRING 7, AN621 $1.96
36 310101-9 ADJUSTER, AN621 $22.64
37 233382-7 COMPRESSION SPRING 6, AN621 $1.96
38 344865-3 CONTACT ARM, AN621 $43.14
39 951010-9 SPRING PIN 2-14, AN611 $0.79
40 415790-6 TRIGGER, AN611 $1.85
41 258004-8 SPRING PIN 2.5-16, 420S $2.07
42 344265-7 IDLER, AN611 $3.17
43 258010-3 SPRING PIN 2.5-25, AF502 $0.90
44 323727-8 TRIGGER VALVE CASE, AN611 $15.16
45 213315-8 O RING 19, AN611 $0.82
46 257229-1 RING 12, AN621 $3.17
47 415789-1 PILOT VALVE, AN611 $3.50
48 213162-7 O RING 14, 2414B $0.86
49 213023-1 O RING 4, AF501 $0.82
50 213023-1 O RING 4, AF501 $0.82
51 323978-3 TRIGGER VALVE STEM, AN621 $10.65
52 213023-1 O RING 4, AF501 $0.82
53 233189-1 COMPRESSION SPRING 6, AN611 $0.90
54 416379-3 TRIGGER VALVE GUIDE, AN611 $5.15
55 213162-7 O RING 14, 2414B $0.86
56 162190-8 TOP CAP GASKET, AN611 $9.22
57 152844-5 HOUSING CPL.,AN621 $76.30
58 961011-9 STOP RING E-4, 4301BV $1.48
59 162198-2 INLET CAP GASKET, AN611 $8.45
60 415784-1 INLET FILTER, AN611 $5.15
61 317340-2 INLET CAP, AN901 $26.11
62 922252-2 H.S.H. BOLT M5X30, AF501 $1.34
63 286219-7 CAP 12, AF502 $1.41
65 922216-6 H.S.H. BOLT M5X14, 5077B $1.34
66 344720-9 HOOK, AN901 $8.45
67 414934-5 HOLDER CAP, AN451 $3.50
68 417173-6 CHANGE PLATE, AN621 $12.19
69 152843-7 MAGAZINE CPL.,AN621 $34.88
70 265973-6 H.S.H.BOLT M5X20, AG125 $1.96
71 813776-8 INDICATION LABEL, AN621 $1.65
72 423232-6 RUBBER PLATE 6-20, AN451 $0.82
73 231791-4 TENSION SPRING 5, AN611 $4.71
74 414934-5 HOLDER CAP, AN451 $3.50
75 265903-7 H.S.H.BOLT M5X12, AN451 $1.96
76 344864-5 CYLINDER COVER, AN621 $4.71
77 310102-7 CHANGE LEVER, AN621 $22.64
78 310103-5 PISTON STOPPER, AN621 $18.13
79 233198-0 COMPRESSION SPRING 9, AN611 $2.07
80 233268-5 COMPRESSION SPRING 14, AN621 $1.96
81 213379-2 O RING 21, HR4041C $0.82
82 323977-5 PISTON, AN621 $26.52
83 213055-8 O RING 10, HR3851 $0.53
84 344862-9 CHECK CLAW F, AN621 $6.14
85 262054-7 URETHANE RING 3, AN451 $1.85
86 344863-7 CHECK CLAW R, AN621 $7.68
87 421722-3 CUSHION F, AN621 $15.16
88 213569-7 O RING 45, AN611 $1.41
89 213017-6 O RING 6, 5177B $0.53
90 151924-4 DRIVER GUIDE CPL, AN621 $295.66
91 265844-7 H.S.H BOLT M6X20, AN611 $1.41
92 262054-7 URETHANE RING 3, AN451 $1.85
93 310106-9 DOOR, AN621 $43.14
94 417175-2 CONTACT ARM COVER, AN621 $16.70
95 417174-4 COVER, AN621 $1.74
96 266233-9 H.S.H. BOLT M5X12, AG125 $1.41
97 344861-1 MAGAZINE LOCK, AN621 $6.14
98 417176-0 MAGAZINE CAP, AN621 $40.39
99 268025-2 PIN 5, AN611 $5.15
100 233265-1 COMPRESSION SPSRING 5, AN621 $3.17
101 233265-1 COMPRESSION SPSRING 5, AN621 $3.17
102 922216-6 H.S.H. BOLT M5X14, 5077B $1.34
103 323976-7 LOCK PIN, AN621 $4.71
104 233197-2 COMPRESSION SPRING 7, AN611 $0.90
105 267010-2 F. WASHER 5, AN451 $1.63
106 414933-7 LOCK LEVER, AN451 $3.50
108 266233-9 H.S.H. BOLT M5X12, AG125 $1.41
109 268050-3 PIN 4, AN621 $3.17
110 310105-1 FEEDING CLAW, AN621 $22.64
111 262054-7 URETHANE RING 3, AN451 $1.85
113 233266-9 COMPRESSION SPRING 5, AN621 $3.61
1002 181434-7 OIL SUPPLY 30CC, AF502 $4.50
1003 783202-0 HEX WRENCH 4, JR3000V $3.24
