Makita AN453 Nailer Parts

Makita AN453 Nailer Parts Image

Makita AN453 Parts
1-3/4 Inch Roofing Coil Nailer

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita AN453
1-3/4 Inch Roofing C...
$243.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

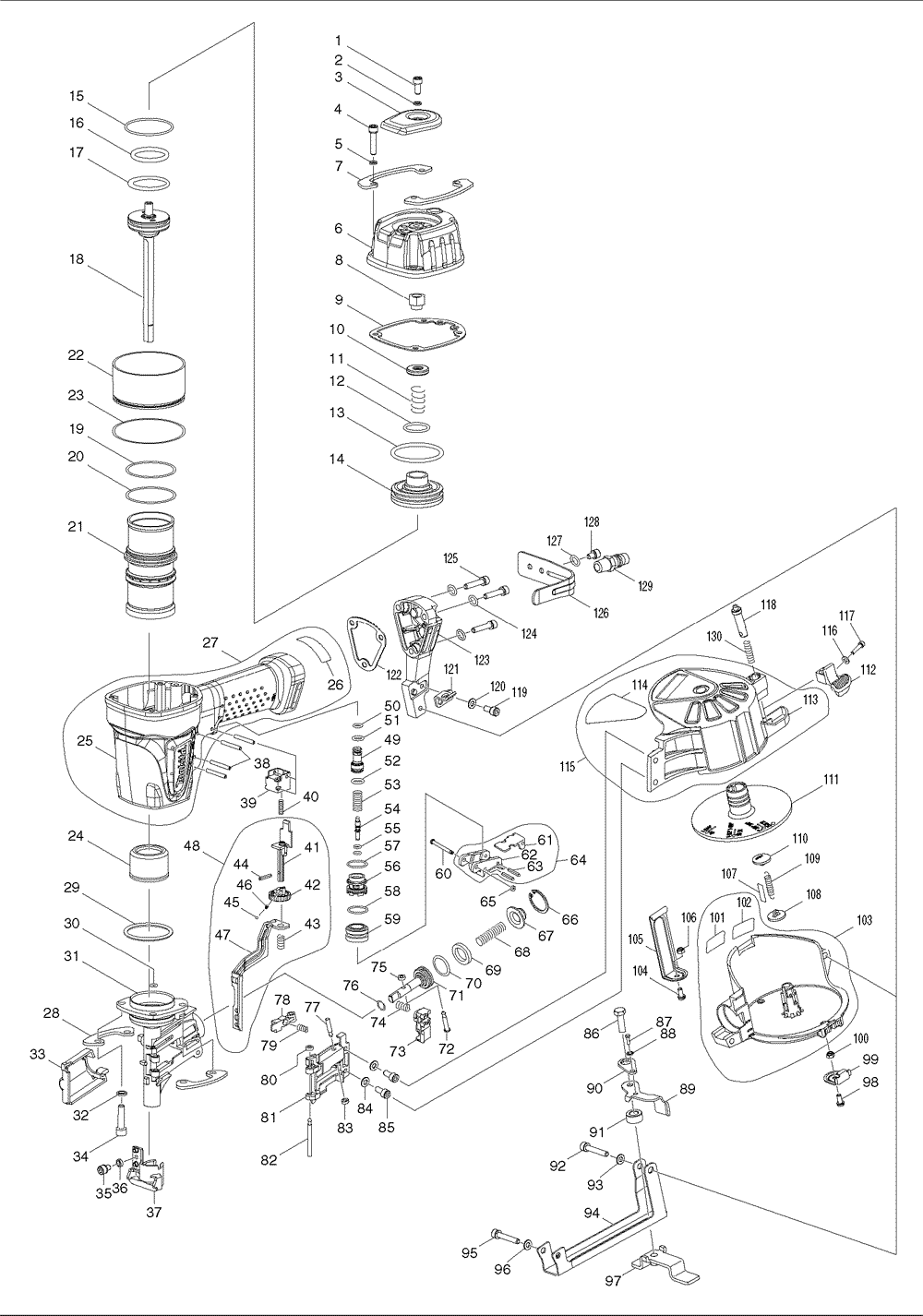

Makita AN453 Nailer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 HY00000155 HEX. SOCKET HEAD BOLT M5X12, AN453 $1.34
2 HY00000162 SPRING WASHER 5, AN453 $0.66
3 HY00000191 EXHAUST COVER, AN453 $1.34
4 HY00000156 HEX. SOCKET HEAD BOLT M5X25, AN453 $2.51
5 HY00000162 SPRING WASHER 5, AN453 $0.66
6 HY00000172 TOP CAP, AN453 $16.04
7 HY00000367 REAR HOUSING GUARD, AN453 $3.61
8 HY00000073 H.LOCK NUT M5, AF505 $1.34
9 HY00000197 TOP CAP GASKET, AN453 $0.90
10 HY00000205 CUSHION V, AN453 $1.34
11 HY00000151 COMPRESSION SPRING 10, AN453 $0.90
12 HY00000138 O-RING 21, AN453 $0.90
13 HY00000141 O-RING 45, AN453 $1.12
14 HY00000177 HEAD VALVE, AN453 $8.12
15 HY00000140 O-RING 42, AN453 $1.12
16 HY00000144 O-RING 30, AN453 $1.12
17 HY00000139 O-RING 35, AN453 $1.12
18 HY00000106 DRIVER CPL., AN453 $12.63
19 HY00000142 O-RING 45, AN453 $1.12
20 HY00000141 O-RING 45, AN453 $1.12
21 HY00000176 CYLINDER, AN453 $11.53
22 HY00000202 CYLINDER SEPARATER, AN453 $3.61
23 HY00000143 O-RING 67, AN453 $1.12
24 HY00000204 CUSHION F, AN453 $7.02
26 HY00000105 CAUTION LABEL, AN453 $0.64
27 HY00000103 HOUSING CPL., AN453 $33.86
28 HY00000192 FRONT HOUSING GUARD, AN453 $2.51
29 HY00000133 O-RING 42, AN453 $1.12
30 HY00000130 O-RING 5, AN453 $0.66
31 HY00000102 DRIVER GUIDE CPL., AN453 $41.20
32 HY00000163 SPRING WASHER 6, AN453 $0.66
33 HY00000201 COVER, AN453 $1.34
34 HY00000157 HEX. SOCKET HEAD BOLT M6X25, AN453 $1.34
35 HY00000154 HEX. SOCKET HEAD BOLT M5X8, AN453 $0.90
36 HY00000162 SPRING WASHER 5, AN453 $0.66
37 HY00000127 CONTACT TOP, AN453 $7.02
38 HY00000165 SPRING PIN 3-28, AN453 $1.34
39 HY00000194 HOLDER, AN453 $1.34
40 HY00000149 COMPRESSION SPRING 7, AN453 $0.66
41 HY00000110 STOPPER, AN453 $10.43
42 HY00000109 ADJUSTER, AN453 $9.22
43 HY00000113 COMPRESSION SPRING 7, AN453 $0.66
44 HY00000114 SPRING PIN 2.5-16, AN453 $1.34
45 HY00000112 STEEL BALL 2.3, AN453 $0.66
46 HY00000111 COMPRESSION SPRING 2, AN453 $0.44
47 HY00000108 CONTACT ARM, AN453 $2.51
48 HY00000107 CONTACT ARM ASS'Y, AN453 $19.45
49 HY00000182 PILOT VALVE, AN453 $1.34
50 HY00000131 O-RING 6, AN453 $0.66
51 HY00000132 O-RING 7, AN453 $0.66
52 HY00000134 O-RING 9, AN453 $0.66
53 HY00000146 COMPRESSION SPRING 4, AN453 $0.66
54 HY00000178 TRIGGER VALVE STEM, AN453 $1.34
55 HY00000037 O-RING 3, AF505 $0.82
56 HY00000203 TRIGGER VALVE GUIDE, AN453 $1.34
57 HY00000135 O-RING 15, AN453 $0.90
58 HY00000137 O-RING 17, AN453 $0.90
59 HY00000183 TRIGGER VALVE CASE, AN453 $8.12
60 HY00000045 PIN 3, AF505 $0.82
61 HY00000117 IDLER, AN453 $1.12
62 HY00000116 TRIGGER, AN453 $2.51
63 HY00000053 SPRING PIN 2.5-16, AF505 $0.90
64 HY00000115 TRIGGER ASS'Y, AN453 $3.61
65 HY00000043 RUBBER RING 2, AF505 $0.53
66 HY00000164 RETAINING RING R-24, AN453 $2.51
67 HY00000187 CUP WASHER 5, AN453 $1.34
68 HY00000150 COMPRESSION SPRING 7, AN453 $0.90
69 HY00000207 RUBBER RING 16, AN453 $1.12
70 HY00000136 O-RING 17, AN453 $0.90
71 HY00000179 PISTON, AN453 $5.92
72 HY00000168 PIN 4, AN453 $0.90
73 HY00000170 FEEDING CLAW, AN453 $4.71
74 HY00000148 COMPRESSION SPRING 6, AN453 $0.66
75 HY00000206 URETHAN RING 3, AN453 $1.12
76 HY00000129 O-RING 8, AN453 $0.66
77 HY00000166 PIN 4, AN453 $0.90
78 HY00000169 CHECK CLAW, AN453 $3.61
79 HY00000147 COMPRESSION SPRING 4, AN453 $0.66
80 HY00000206 URETHAN RING 3, AN453 $1.12
81 HY00000171 DOOR, AN453 $11.53
82 HY00000167 PIN 4, AN453 $0.90
83 HY00000206 URETHAN RING 3, AN453 $1.12
84 HY00000160 FLAT WASHER 5, AN453 $0.44
85 HY00000155 HEX. SOCKET HEAD BOLT M5X12, AN453 $1.34
86 HY00000158 HEX. BOLT M6X20, AN453 $0.66
87 HY00000153 PAN HEAD SCREW M4X10, AN453 $1.34
88 HY00000161 SPRING WASHER 4, AN453 $0.44
89 HY00000185 LEVER PLATE, AN453 $1.34
90 HY00000184 LOCK PLATE, AN453 $1.12
91 HY00000181 RING 9, AN453 $1.34
92 HY00000075 H.S.H.BOLT M5X30, AF505 $1.08
93 HY00000162 SPRING WASHER 5, AN453 $0.66
94 HY00000186 SINGLE GUIDE, AN453 $3.61
95 HY00000075 H.S.H.BOLT M5X30, AF505 $1.08
96 HY00000162 SPRING WASHER 5, AN453 $0.66
97 HY00000128 ADJUSTER PLATE, AN453 $2.51
98 HY00000153 PAN HEAD SCREW M4X10, AN453 $1.34
99 HY00000189 MAGAZINE GUARD L, AN453 $2.51
100 HY00000159 HEX. LOCK NUT M4, AN453 $0.90
101 HY00000120 CAUTION LABEL, AN453 $0.64
102 HY00000121 CAUTION LABEL, AN453 $0.64
103 HY00000118 MAGAZINE CPL., AN453 $7.02
104 HY00000153 PAN HEAD SCREW M4X10, AN453 $1.34
105 HY00000188 MAGAZINE GUARD R, AN453 $2.51
106 HY00000159 HEX. LOCK NUT M4, AN453 $0.90
107 HY00000208 RUBBER PLATE 6-19, AN453 $0.66
108 HY00000198 HOLDER CAP, AN453 $1.12
109 HY00000145 TENSION SPRING 5, AN453 $1.12
110 HY00000198 HOLDER CAP, AN453 $1.12
111 HY00000200 CHANGE PLATE, AN453 $3.61
112 HY00000199 LOCK LEVER, AN453 $1.34
114 HY00000126 CAUTION LABEL, AN453 $0.64
115 HY00000124 MAGAZINE CAP CPL., AN453 $5.92
116 HY00000162 SPRING WASHER 5, AN453 $0.66
117 HY00000154 HEX. SOCKET HEAD BOLT M5X8, AN453 $0.90
118 HY00000180 LOCK PIN, AN453 $3.61
119 HY00000155 HEX. SOCKET HEAD BOLT M5X12, AN453 $1.34
120 HY00000162 SPRING WASHER 5, AN453 $0.66
121 HY00000190 MAGAZINE ROCK, AN453 $1.12
122 HY00000196 INLET CAP GASKET, AN453 $0.90
123 HY00000173 INLET CAP, AN453 $5.92
124 HY00000162 SPRING WASHER 5, AN453 $0.66
125 HY00000156 HEX. SOCKET HEAD BOLT M5X25, AN453 $2.51
126 HY00000195 HOOK, AN453 $2.51
127 HY00000162 SPRING WASHER 5, AN453 $0.66
128 HY00000155 HEX. SOCKET HEAD BOLT M5X12, AN453 $1.34
129 HY00000079 ONE TOUCH JOINT, AF505 $1.74
130 HY00000152 COMPRESSION SPRING 8, AN453 $0.66
131 HY00000368 REAR BUMPER, AN453 $2.51
1002 181434-7 OIL SUPPLY 30CC, AF502 $4.50
1003 783202-0 HEX WRENCH 4, JR3000V $3.24
