Makita AN451 Nailer Parts

Makita AN451 Nailer Parts Image

Makita AN451 Parts
1-3/4 Inch Roofing Coil Nailer

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita AN451
1-3/4 Inch Roofing C...
$324.99

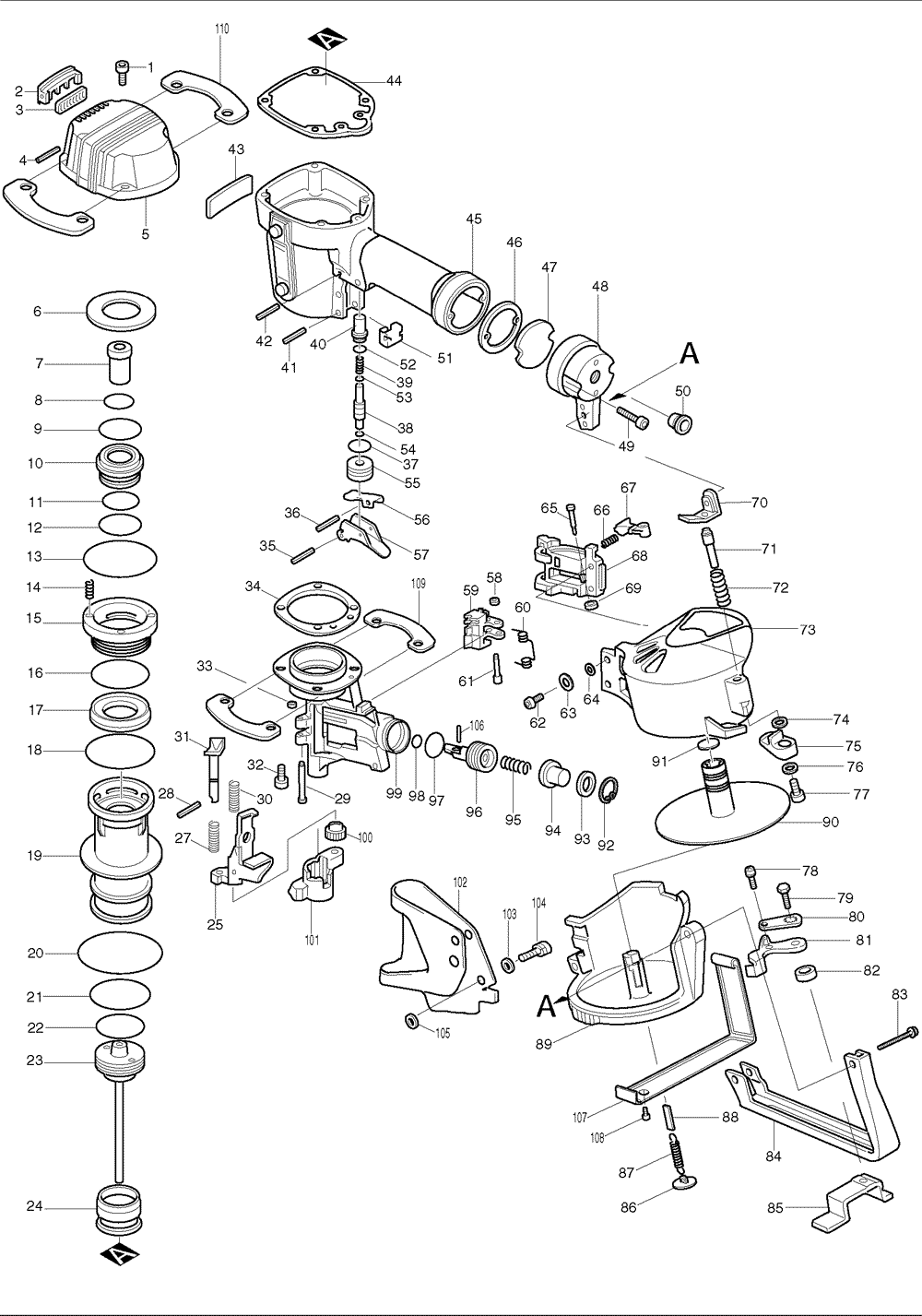

Tool Diagram    (Click image to Zoom in) View larger Image
Makita AN451 Nailer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 922241-7 H.S.H. BOLT M5X25, AN451-T2 $1.41
94 344597-2 CUP WASHER 5, AN451-T2 $5.26
2 414957-3 COVER, AN451 $5.15
21 213613-0 O RING 45, AF631 $3.50
3 415235-4 MUFFLER, AN451 $1.41
5 151605-0 TOP CAP COMPLETE, AN451-T2 $61.40
4 258018-7 SPRING PIN 2.5-9, JR3000V-T2 $0.86
25 165207-6 CONTACT ARM,AN451 $63.00
5 151605-0 TOP CAP COMPLETE, AN451-T2 $61.40
45 151604-2 HOUSING COMPLETE, AN451-T2 $96.70
6 261093-4 URETHANE WASHER 32, AN451 $3.72
70 344256-8 MAGAZINE LOCK, AN451,T2 $5.15
7 421399-4 CUSHION R, AN451 $8.45
59 310098-2 FEEDING CLAW, AN451,T2 $26.52
8 213416-2 O RING 26, AN451 $1.41
00 313040-2 MAGNET, AN451 $13.40
9 213462-5 O RING 33, AN451 $1.08
27 233097-6 COMPRESSION SPRING 7, AN451 $2.07
10 414935-3 MAIN VALVE, AN451 $63.00
11 213424-3 O RING 27, AN451 $1.41
12 213423-5 O RING 30, AN451 $1.08
13 213665-1 O RING 56, AN451 $1.85
14 233038-2 COMPRESSION SPRING 5, AN451 $2.07
15 316380-7 SUB VALVE, AN451 $44.47
16 213558-2 O RING 42, LS1211 $3.61
17 421400-5 VALVE SHEET, AN451 $19.89
18 213604-1 O RING 50, 6911D $3.61
18 213656-2 O RING 53, AN451 $1.85
19 316409-9 CYLINDER, AN451 $60.00
20 213706-3 O RING 67, AN8300 $3.50
21 213613-0 O RING 45, AF631 $3.50
22 213475-6 O RING 34, AN451 $1.41
23 150383-9 DRIVER COMPLETE, AN451 $95.90
24 421491-6 CUSHION F, AN451 $18.24
25 165207-6 CONTACT ARM,AN451 $63.00
27 233097-6 COMPRESSION SPRING 7, AN451 $2.07
28 258021-8 SPRING PIN 2-9, AN451 $0.79
29 256678-9 PIN 4, AN451 $5.15
30 233096-8 COMPRESSION SPRING 5, AN451 $1.63
31 162170-4 LEVER PIN 6, AN451 $13.40
32 265929-9 H.S.H. BOLT M6X22, AN451-T2 $1.96
33 262054-7 URETHANE RING 3, AN451 $1.85
34 442118-5 DRIVER GUIDE GASKET, AN451 $5.15
35 951072-7 SPRING PIN 3-24, AN451 $0.90
36 258004-8 SPRING PIN 2.5-16, 420S $2.07
37 213218-6 O RING 16, AF502,HR2811F $0.82
38 322530-4 TRIGGER VALVE STEM, AN451 $5.15
39 233425-5 COMPRESSION SPRING 3, AN451 $1.96
40 322531-2 PILOT VALVE, AN451 $16.70
41 951072-7 SPRING PIN 3-24, AN451 $0.90
42 258020-0 SPRING PIN 2.5-22, AF502 $0.90
43 857129-1 NAME PLATE, AN451 $1.21
44 442109-6 TOP CAP GASKET, AN451 $15.05
45 151604-2 HOUSING COMPLETE, AN451-T2 $96.70
46 442110-1 INLET CAP GASKET, AN451 $5.15
47 413054-2 INLET FILTER, AN451 $6.80
48 150988-5 INLET CAP, AN451-T2 $24.84
49 922242-5 H.S.H. BOLT M5X25, AF502 $1.96
50 286219-7 CAP 12, AF502 $1.41
51 343879-9 HOLDER, AN451 $3.50
52 213030-4 O RING 8, AN451 $0.82
53 213028-1 O RING 2, AF502 $0.82
53 213957-8 O RING 2, AN451 $0.82
54 213028-1 O RING 2, AF502 $0.82
54 213957-8 O RING 2, AN451 $0.82
55 322380-7 TRIGGER VALVE CASE, AN451 $27.64
56 344258-4 IDLER, AN451-T2 $5.15
57 165133-9 TRIGGER, AN451-T2 $15.16
58 262054-7 URETHANE RING 3, AN451 $1.85
59 310098-2 FEEDING CLAW, AN451,T2 $26.52
60 231603-1 TORSION SPRING 6, AN451 $5.15
61 256432-1 PIN 4-4.5, AN451 $3.50
62 265903-7 H.S.H.BOLT M5X12, AN451 $1.96
63 253999-0 WASHER 5, AN451 $1.85
64 267010-2 F. WASHER 5, AN451 $1.63
65 256679-7 PIN 4, AN451 . $5.15
66 233095-0 COMPRESSION SPRING 4, AN451 $2.07
67 311913-3 CHECK CLAW, AN451 $27.64
68 311914-1 DOOR, AN451 $84.50
69 262054-7 URETHANE RING 3, AN451 $1.85
70 344256-8 MAGAZINE LOCK, AN451,T2 $5.15
71 322532-0 LOCK PIN, AN451 $8.45
72 231307-5 COMP. SPRING 6, LS1013 $1.48
73 150384-7 MAGAZINE CAP COMP., AN451 $18.24
74 267010-2 F. WASHER 5, AN451 $1.63
75 414933-7 LOCK LEVER, AN451 $3.50
76 267010-2 F. WASHER 5, AN451 $1.63
77 266233-9 H.S.H. BOLT M5X12, AG125 $1.41
78 911105-0 P.H. SCREW M4X6, AN451 $1.08
79 921322-4 HEX BOLT M6X16,AN451 $1.34
80 341718-7 LOCK PLATE, AN451 $1.85
81 343977-9 LEVER PLATE, AN451 $10.10
82 257166-9 RING 9, AN451 $6.80
83 265919-2 H.S.H. BOLT M5X30, AN451 $1.85
84 343978-7 SINGLE GUIDE, AN451 $26.11
85 165250-5 ADJUST PLATE, AN451-T2 $6.80
86 414934-5 HOLDER CAP, AN451 $3.50
87 231793-0 TENSION SPRING 5, AN451 $3.50
88 423232-6 RUBBER PLATE 6-20, AN451 $0.82
89 415170-6 MAGAZINE, AN451, T1 $17.25
89 415779-4 MAGAZINE, AN451 $21.54
90 415169-1 CHANGE PLATE, AN451 $11.75
91 414934-5 HOLDER CAP, AN451 $3.50
92 962112-6 RETAINING RING R-22, AN451 $1.41
93 262055-5 RUBBER RING 16, AN451 $1.85
94 344597-2 CUP WASHER 5, AN451-T2 $5.26
95 233057-8 COMPRESSION SPRING 11, AN451 $2.07
96 322579-4 PISTON, AN451 $27.64
97 213261-5 O RING 17, AN451 $3.50
98 213007-9 O RING 8, AF502 $0.82
99 150386-3 DRIVER GUIDE COMP., AN451 $294.30
100 311891-7 ADJUSTER, AN451 $38.35
101 165073-1 CONTACT TOP, AN451 $60.00
102 413060-7 SAFETY COVER, AN451 $15.05
103 253999-0 WASHER 5, AN451 $1.85
104 265919-2 H.S.H. BOLT M5X30, AN451 $1.85
105 253999-0 WASHER 5, AN451 $1.85
106 951054-9 SPRING PIN 3-10, AN451 $0.90
107 344254-2 MAGAZINE GUARD, AN451 $6.80
108 911110-7 SCREW M4X8, AN451 $1.08
109 344747-9 HOUSING GUARD F, AN451 $5.15
110 344748-7 HOUSING GUARD R, AN451 $6.14
111 266233-9 H.S.H. BOLT M5X12, AG125 $1.41
1001 181434-7 OIL SUPPLY 30CC, AF502 $4.50
