Makita AG090 Nailer Parts

Makita AG090 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

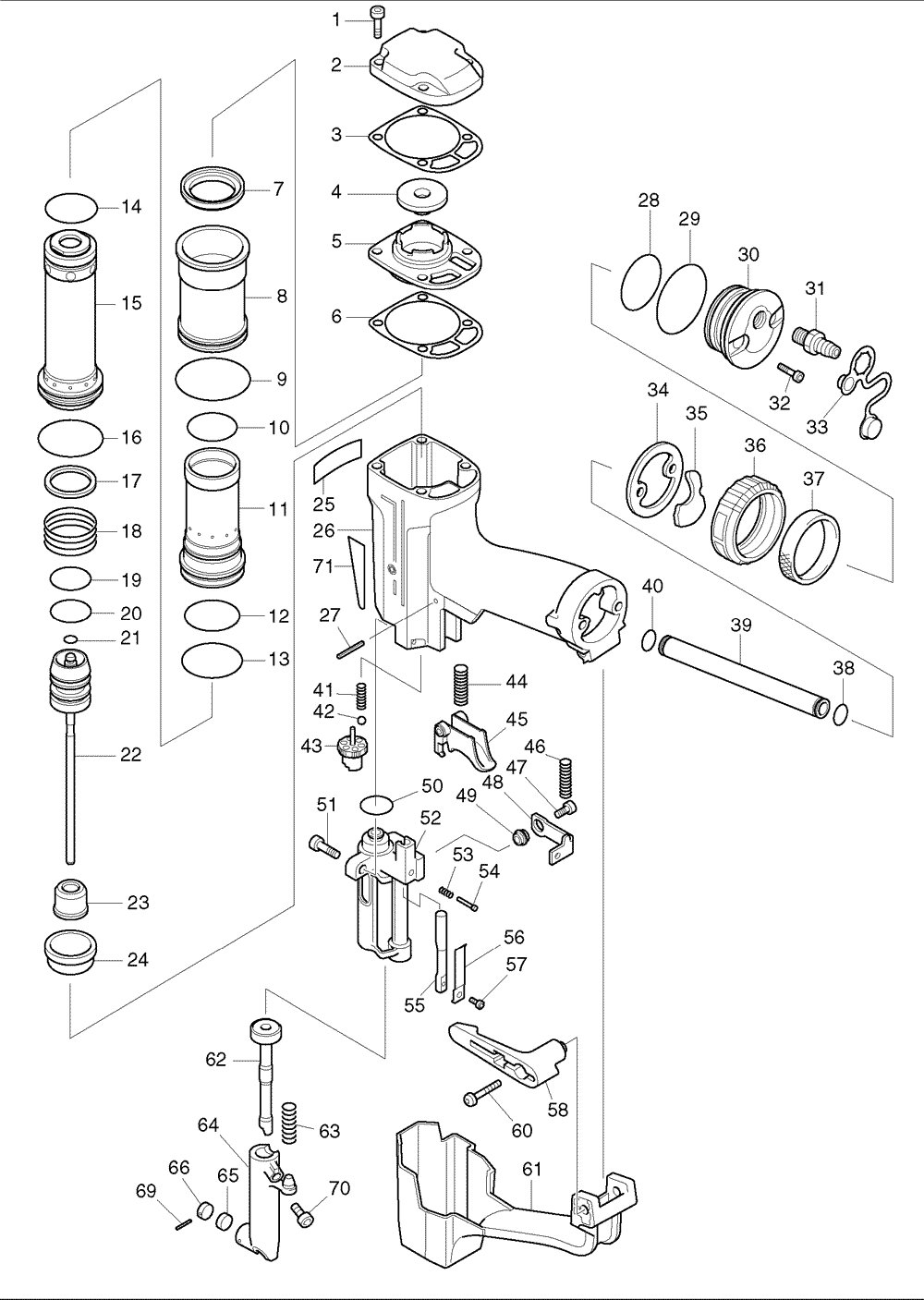

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	922241-7	H.S.H. BOLT M5X25, AN451-T2	$1.41
2	317190-5	TOP CAP, AG125	$21.54
3	162211-6	TOP CAP GASKET, AG125	$5.15
4	421682-9	CUSHION R, AG125	$5.15
5	317318-5	SEPARATOR, AG125	$15.05
6	162211-6	TOP CAP GASKET, AG125	$5.15
7	421683-7	VALVE SEAT, AG125	$5.15
8	416900-8	VALVE GUIDE, AG125	$5.15
9	213513-4	O RING 39, AN611	$1.41
10	213437-4	O RING 28, AG125	$1.08
11	331569-6	VALVE, AG125	$47.53
12	213427-7	O RING 30, AG125	$1.08
13	213486-1	O RING 35, AG125	$1.41
14	213952-8	O RING 25, AG125	$1.08
15	151982-0	CYLINDER COMPLETE, AG090	$82.30
16	213484-5	O RING 33, AG125	$1.08
17	262081-4	URETHANE RING 28, AG125	$3.50
18	233245-7	COMP. SPRING 31, AG125	$2.07
19	213379-2	O RING 21, HR4041C	$0.82
20	213322-1	O RING 20, AG125	$0.82
21	213009-5	O RING 4, AF501	$0.53
22	151868-8	DRIVER CPL., AG090	$69.20
23	421681-1	CUSHION F, AG125	$6.80
24	323903-4	CUSHION GUIDE, AG125	$8.45
25	853695-6	NAME PLATE, AG090	$1.48
26	151894-7	HOUSING CPL.,AG125	$75.00
27	951075-1	SPRING PIN 3-28, AN611	$0.90
28	213513-4	O RING 39, AN611	$1.41
29	213561-3	O RING 42, GA4030	$3.17
30	317339-7	INLET CAP, AG125	$29.17
32	922256-4	H.S.H. BOLT M5X35, 2012	$2.40
33	286219-7	CAP 12, AF502	$1.41
34	162212-4	INLET CAP GASKET, AG125	$5.15
35	416902-4	INLET FILTER, AG125	$3.50
36	416899-7	EXHAUST COVER, AG125	$5.15
37	323863-0	EXHAUST FILTER, AG125	$6.80
38	213070-2	O RING 10, AG125	$0.82
39	331552-3	JOINT PIPE, AG125	$6.80
40	213070-2	O RING 10, AG125	$0.82
41	233252-0	COMP. SPRING 3, AG125	$1.34
42	216008-6	STEEL BALL 4.0, 5007NK	$0.53
43	310080-1	ADJUSTER, AG125	$19.89
44	233068-3	COMP. SPRING 6, AG125	$1.63
45	310079-6	TRIGGER, AG125	$30.70
46	233237-6	COMP. SPRING 5, AG125	$2.07
47	266233-9	H.S.H. BOLT M5X12, AG125	$1.41
48	344775-4	CONTACT ARM, AG125	$5.15
49	323905-0	SHOULDER WASHER 5, AG125	$3.72
50	213223-3	O RING 16, AF502	$0.82
51	265973-6	H.S.H.BOLT M5X20, AG125	$1.96
52	310082-7	DRIVER GUIDE R, AG090	$72.30
53	231368-5	COMP. SPRING 4, AG125	$0.90
54	268042-2	PIN 3, AG125	$3.50
55	323901-8	ROD 6, AG125	$9.22
56	232191-1	LEAF SPRING, AG125	$5.15
57	265911-8	H.S.H. BOLT M4X8, AG125	$1.96
58	415000-1	HOOK, AG125	$6.80
60	266200-4	H.S. BOLT M5X40, AG125	$1.34
61	153401-2	COVER, AG090	$13.29
62	310081-9	DRIVER GUIDE F, AG090	$51.90
63	233244-9	COMPRESSION SPRING 6, AG090	$1.63
64	310083-5	NAIL GUIDE, AG090	$159.76
65	313090-7	MAGNET PIECE, AG125	$6.14
66	323904-2	MAGNET CAP, AG125	$6.14
69	951010-9	SPRING PIN 2-14, AN611	$0.79
70	265913-4	H.S.H. BOLT M5X8, AG125	$1.96
71	800479-3	INDICATION LABEL	$1.48
1002	181434-7	OIL SUPPLY 30CC, AF502	$4.50
1003	783201-2	HEX WRENCH 3, AF501	$3.40
