Makita AF632 Nailer Parts

Makita AF632 Nailer Parts Image

Makita AF632 Parts
15 gauge, Large Capacity, Finish Nailer

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita AF632
15 gauge, Large Capa...
$224.99
Tool Diagram    (Click image to Zoom in) View larger Image

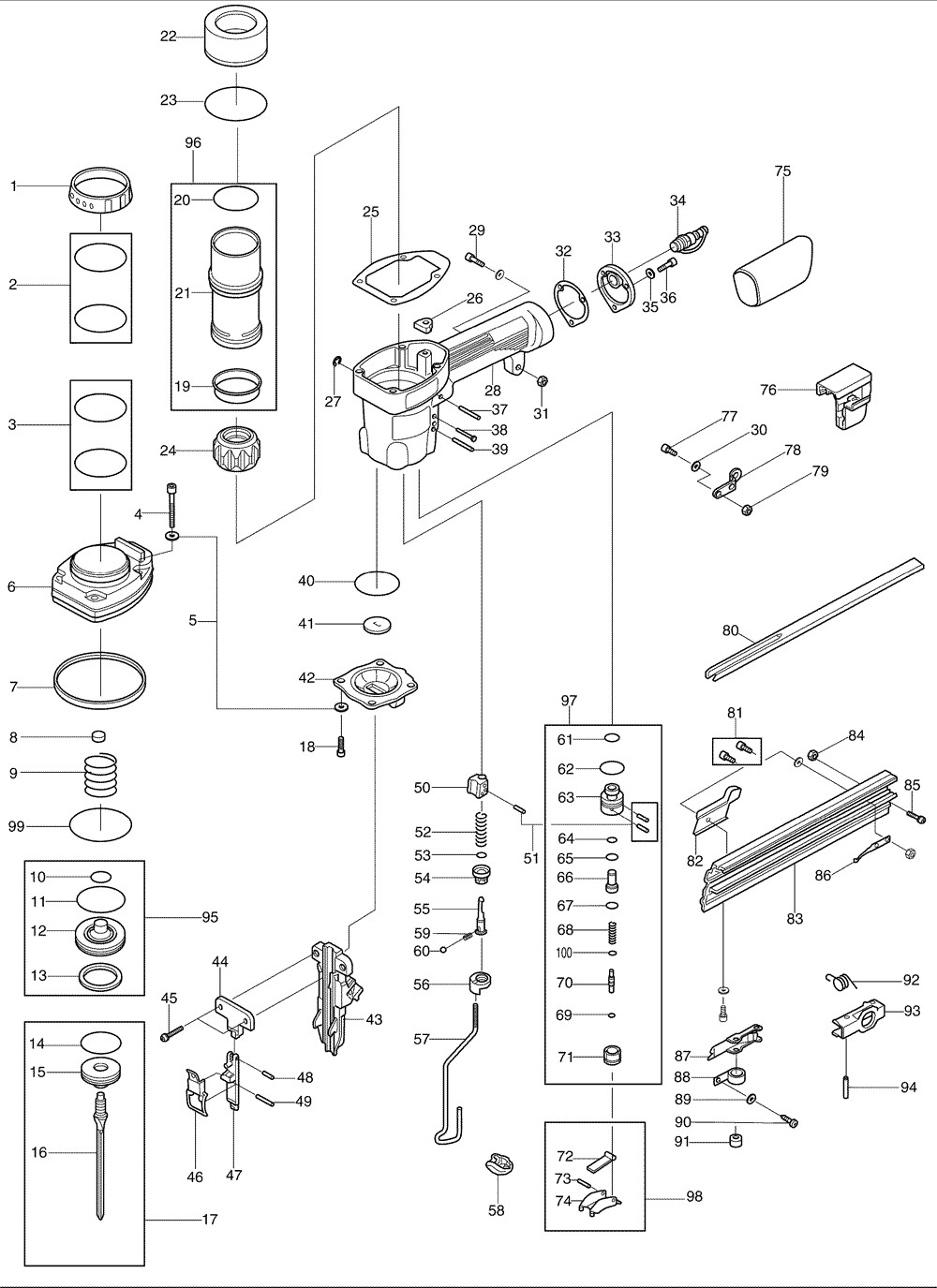

Makita AF632 Nailer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 A0304-0311 EXHAUST VALVE COLLAR,AF632 $3.17
00 A0000-0091 SCREW 5X20, AF632 $1.41
2 A0103-0091 SAFETY SPRING, AF632 $1.63
3 A0200-1241 O-RING 49X1.8W, AF632 $1.74
4 A0000-0441 NYLOK SCREW 6X45, AF632 $3.17
5 A0005-0021 WASHER #6X1.5T, AF632 $1.34
6 A0301-0241 CYLINDER CAP, AF632 $26.52
7 A0204-0121 HANDLE GRIP, AF633 $4.71
8 A0005-0281 WASHER, AF632 $1.63
9 A0100-0041 COMPRESSION SPRING, AF632 $3.61
10 A0200-0051 O-RING 13.8X2.4, AF632 $1.08
11 A0200-0311 O-RING 50X2.5, AF632 $1.74
12 A0308-0121 PISTON HEAD, AF632 $19.67
13 A0311-0191 SEAL AIR, AF632 $4.71
14 A0200-0131 O-RING 35X3.5, AF632 $1.74
15 A0601-0221 DRIVER BLADE PISTON, AF632 $16.70
16 A0600-0941 DRIVER BLADE, AF632 $51.90
17 K0600-0521 PISTON SET, AF632 $61.40
18 A0000-0471 NYLOK SCREW 6X20, AF632 $3.17
19 A0201-0031 RING, AF632 $3.17
20 A0200-0371 O-RING 44.5X2.5, AF632 $1.74
21 A0303-0271 CYLINDER, AF632 $34.88
22 A0305-0041 COLLAR, AF632 $26.52
23 A0200-0561 O-RING 58X3, AF632 $3.17
24 A0309-0231 BUMPER, AF632 $10.65
25 A0205-0011 GASKET, AF632 $6.14
26 A0311-0051 SEAL AIR, AF632 $3.17
27 A0005-0041 E-RING 2.5, AF632 $1.08
28 A0401-0531 BODY, AF632 $53.20
29 A200-09 SCREW 5-20, AT638 $1.12
30 A0005-0031 WASHER #5X1.1T, AF632 $1.34
31 A0004-0021 NYLON NUT M5, AF632 $1.34
32 A0205-0021 GASKET, AF632 $3.17
33 A0306-0011 TAIL COVER, AF632 $7.68
34 K0300-0421 AIR PLUG W/DUSTER, AF632 $4.71
35 A0005-0051 WASHER #4X0.9T, AF632 $1.34
36 A0000-0021 SCREW 4X16, AF632 $1.41
37 A0011-0151 SPRING PIN 3X28, AF632 $1.34
38 A0006-0291 STEP PIN 5X28, AF632 $3.50
39 A0011-0161 SPRING PIB, AF632 $1.34
40 A0200-0061 O-RING 40X1, AF632 $1.41
41 A0310-0071 NOZZLE WASHER, AF632 $3.72
42 A0302-0001 LOWER COVER, AF632 $30.70
43 A0713-0111 OUTLET SITE, AF632 $58.70
44 A0800-0011 STOPPER, AF632 $19.67
45 A0000-0411 NYLOK SCREW 5X20, AF632 $1.74
46 B0800-0011 CLICK LEVER SET, AF632 $6.14
47 A0713-0151 OUTLET SITE COVER, AF632 $24.18
48 A0011-0301 PIN 3X14, AF632 $1.41
49 A0011-0311 PIN 3X22, AF632 $1.41
50 A0712-0191 CATCH GUIDE, AF632 $16.04
51 A0006-0092 PIN 3X14, AF632 $1.74
52 A0100-0761 SPRING, AF632 $1.63
53 A0005-0231 C-RING, AF632 $1.08
54 A0004-0121 SAFETY ADJUSTMENT WHEEL, AF632 $9.22
55 A0711-0641 RELEASE CATCH (B), AF632 $13.62
56 A0711-0901 JOINTER, AF632 $27.15
57 A0711-0631 RELEASE CATCH (A), AF632 $6.14
58 A0204-0161 GRIP, AF632 $4.71
59 A0100-0731 SAFETY SPRING, AF632 $1.96
60 A0009-0011 STEEL BALL, AF632 $1.41
61 A0200-0361 O-RING 12.5X1.8, AF632 $1.08
62 A0200-0581 O-RING 19.8X2, AF632 $1.41
63 A0503-0161 TRIGGER VALVE SITE, AF632 $12.19
64 A0200-1501 O-RING 3.8X1.9, AF632 $1.41
65 A0200-1801 O-RING 6X2, AF632 $1.41
66 A0504-0121 PILOT VALVE, AF632 $9.22
67 A0200-1871 O-RING 8X1.8, AF632 $1.74
68 A0100-0441 SPRING, AF632 $1.63
69 A0200-1531 O-RING 2.5X1.5, AF632 $1.74
70 A0504-0131 TRIGGER VALVE STEM, AF632 $4.71
71 A0503-0171 TRIGGER GUIDE VALVE, AF632 $7.68
72 A0501-0101 RELEASING BLADE, AF632 $3.17
73 A0011-0171 SPRING PIN 3X16, AF632 $1.63
74 A0500-0141 TRIGGER, AF632 $3.17
75 A0204-0091 HANDLE GRIP, AF632 $6.14
76 A0718-0081 TAIL COVER, AF632 $4.71
77 A0000-0181 SCREW 5X10, AF632 $1.74
78 A0706-0451 MAGAZINE SUPPORT, AF632 $4.71
79 A0004-0001 HEX. NUT M5, AF632 $1.96
80 A0702-0231 NAIL RAIL, AF632 $7.68
81 A0000-0221 SCREW 5X8, AF632 $1.74
82 A0712-0221 GUARD COVER, AF632 $4.71
83 A0701-0711 MAGAZINE, AF632 $50.50
84 A0004-0011 NYLON NUT M4, AF632 $1.34
85 A0000-0571 SCREW 4X12, AF632 $1.41
86 A0105-0021 SPRING PLATE, AF632 $3.61
87 A0707-0731 PUSHER, AF632 $10.65
88 A211-09 SPRING SET, AF632 $5.92
88 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
89 A0005-0211 WASHER, AF632 $1.34
90 A0000-0331 SCREW 5X6, AF632 $1.41
91 A0703-0131 WHEEL GUIDE, AF632 $1.41
92 A0101-0161 SPRING, AF632 $1.96
93 A0707-0741 PUSHER SITE, AF632 $6.14
94 A207-31 GUIDE PIN, AF632 $2.51
95 K0300-0521 DISC VALVE ASS'Y, AF632 $22.64
96 K0300-0381 CYLINDER SET, AF632 $34.88
97 K0500-0141 TRIGGER VALVE ASS'Y, AF632 $27.94
98 B0500-0051 TRIGGER SET, AF632 $4.71
99 A0103-0131 SPRING 54.6X2.2, AF632 $1.63
100 A0200-1541 O-RING 2X1.5, AF632 $1.41
