Makita AF505 Nailer Parts

Makita AF505 Nailer Parts Image

Makita AF505 Parts
2 Inch Brad Nailer

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita AF505
2 Inch Brad Nailer
$87.99
Tool Diagram    (Click image to Zoom in) View larger Image

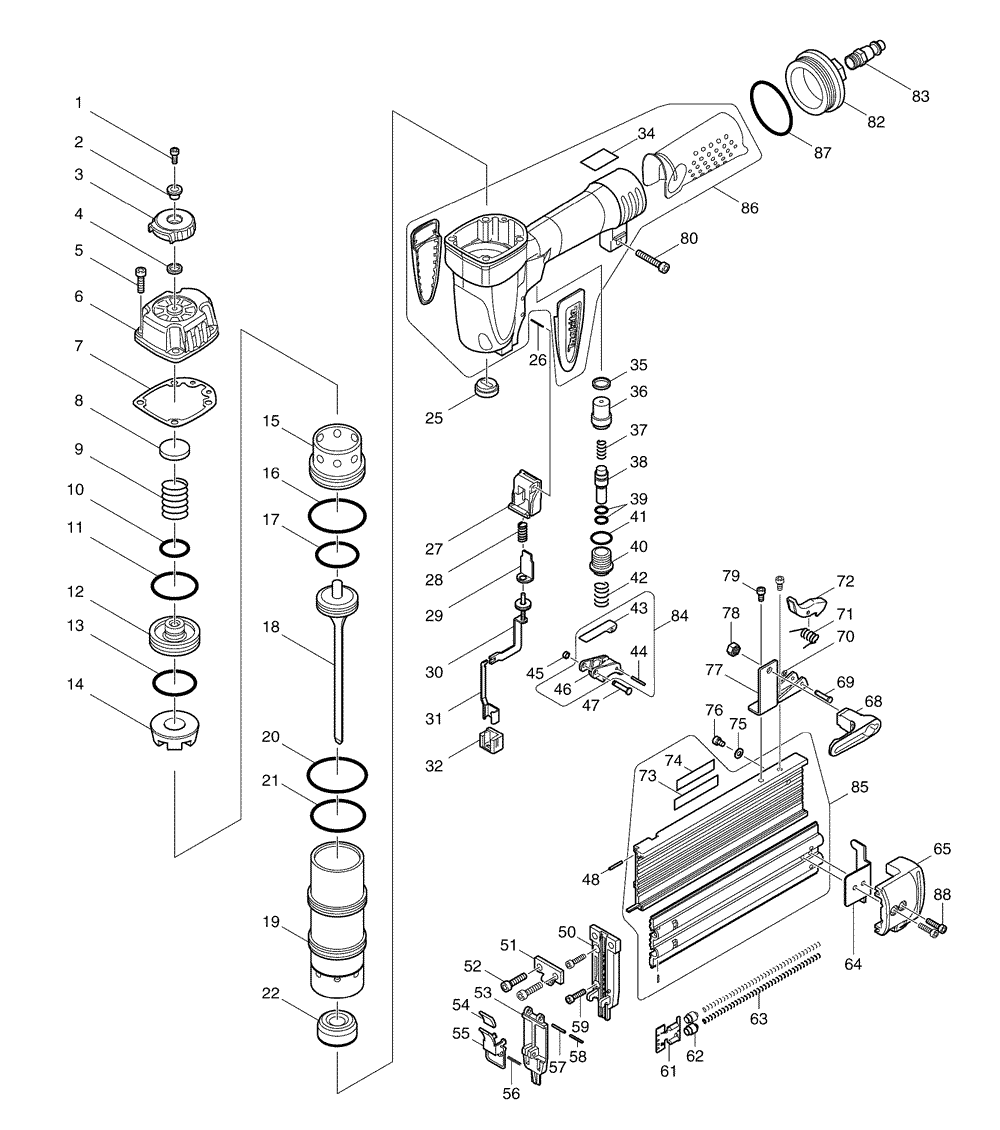

Makita AF505 Nailer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 HY00000001 H.S.H.BOLT M4X10, AF505 $1.08
2 HY00000002 SLEEVE 4, AF505 $0.82
3 HY00000003 EXHAUST COVER, AF505 $1.41
4 HY00000004 RUBBER WASHER 7, AF505 $1.34
5 HY00000005 H.S.H.BOLT M5X20, AF505 $1.96
6 HY00000006 TOP CAP, AF505 $6.14
7 HY00000007 TOP CAP GASKET, AF505 $4.71
8 HY00000008 CUSHION V, AF505 $1.08
9 HY00000009 COMP. SPRING 7, AF505 $1.34
10 HY00000010 O-RING 12, AF505 $0.82
11 HY00000011 O-RING 33, AF505 $1.08
12 HY00000012 HEAD VAKVE, AF505 $3.17
13 HY00000013 O-RING 29, AF505 $1.08
14 HY00000014 CUSHION P, AF505 $1.08
15 HY00000015 CYLINDER SEPARATER, AF505 $3.17
16 HY00000016 O-RING 46, AF505 $1.08
17 HY00000017 O-RING 24, AF505 $1.08
18 HY00000018 DRIVER CPL.,AF505 $9.22
19 HY00000019 CYLINDER, AF505 $6.14
20 HY00000020 O-RING 36, AF505 $1.41
21 HY00000021 O-RING, AF505 $1.08
22 HY00000022 CUSHION F, AF505 $3.17
25 HY00000023 FRONT SEAL, AF505 $1.08
26 HY00000024 SPRING PIN 3-26, AF505 $0.90
27 HY00000025 HOLDER, AF505 $1.41
28 HY00000026 COMP. SPRING 5, AF505 $0.90
29 HY00000027 STOPPER, AF505 $1.41
30 HY00000028 CONTACT ARM, AF505 $3.17
31 HY00000029 CONTACT TOP, AF505 $1.41
32 HY00000030 NOSE ADAPTER, AF505 $1.08
34 HY00000031 CAUTION LABEL, AF505 $1.52
35 HY00000033 RUBBER RING 8, AF505 $0.82
36 HY00000034 TRIGGER VALVE GUIDE, AF505 $1.74
37 HY00000035 COMP. SPRING 4, AF505 $0.90
38 HY00000036 TRIGGER VALVE STEM, AF505 $1.41
39 HY00000037 O-RING 3, AF505 $0.82
40 HY00000038 TRIGGER VALVE CASE, AF505 $1.74
41 HY00000039 O-RING 11, AF505 $0.82
42 HY00000040 COMP. SPRING 10, AF505 $0.90
43 HY00000041 IDLER, AF505 $0.82
44 HY00000042 SPRING PIN 2.5-17, AF505 $0.90
45 HY00000043 RUBBER RING 2, AF505 $0.53
46 HY00000044 TRIGGER, AF505 $1.41
47 HY00000045 PIN 3, AF505 $0.82
48 HY00000046 PIN 2, AF505 $0.82
50 HY00000047 DRIVER GUIDE, AF505 $7.68
51 HY00000048 PLATE, AF505 $3.17
52 HY00000049 H.S.H.BOLT M5X22, AF505 $1.34
53 HY00000050 DOOR, AF505 $4.71
54 HY00000051 CAP, AF505 $0.82
55 HY00000052 LEVER CPL.,AF505 $1.08
56 HY00000053 SPRING PIN 2.5-16, AF505 $0.90
57 HY00000054 SPRING PIN 2.5-18, AF505 $0.90
58 HY00000055 SPRING PIN 1.5-18, AF505 $0.90
59 HY00000056 H.S.H.BOLT M4X16,AF505 $1.96
61 HY00000057 PUSHER, AF505 $1.41
62 HY00000058 PIN 7, AF505 $0.82
63 HY00000059 COMP. SPRING 6, AF505 $1.96
64 HY00000060 MAGAZINE PLATE, AF505 $1.74
65 HY00000061 SLIDE DOOR COVER, AF505 $3.17
68 HY00000062 HOOK, AF505 $1.74
69 HY00000063 PIN 3, AF505 $0.82
70 HY00000064 STOP RING E-2.5, AF505 $0.53
71 HY00000065 TORSION SPRING, AF505 $1.34
72 HY00000066 LOCK LEVER, AF505 $0.82
73 HY00000067 CAUTION LABEL, AF505 $0.46
74 HY00000069 CAUTION LABEL, AF505 $0.46
75 HY00000070 WASHER, AF505 $0.75
76 HY00000071 H.S.H.BOLT M4X6, AF505 $1.08
77 HY00000072 JOINT, AF505 $3.17
78 HY00000073 H.LOCK NUT M5, AF505 $1.34
79 HY00000074 H.S.H.BOLT M4X8, AF505 $1.08
80 HY00000075 H.S.H.BOLT M5X30, AF505 $1.08
82 HY00000076 INLET CAP, AF505 $3.17
83 HY00000079 ONE TOUCH JOINT, AF505 $1.74
84 HY00000083 TRIGGER CPL.,AF505 $1.41
85 HY00000084 MAGAZINE ASS'Y, AF505 $18.13
86 HY00000087 HOUSING CPL.,AF505 $21.10
87 HY00000020 O-RING 36, AF505 $1.41
88 HY00000056 H.S.H.BOLT M4X16,AF505 $1.96
1003 181434-7 OIL SUPPLY 30CC, AF502 $4.50
