Makita AF503 Nailer Parts

Makita AF503 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

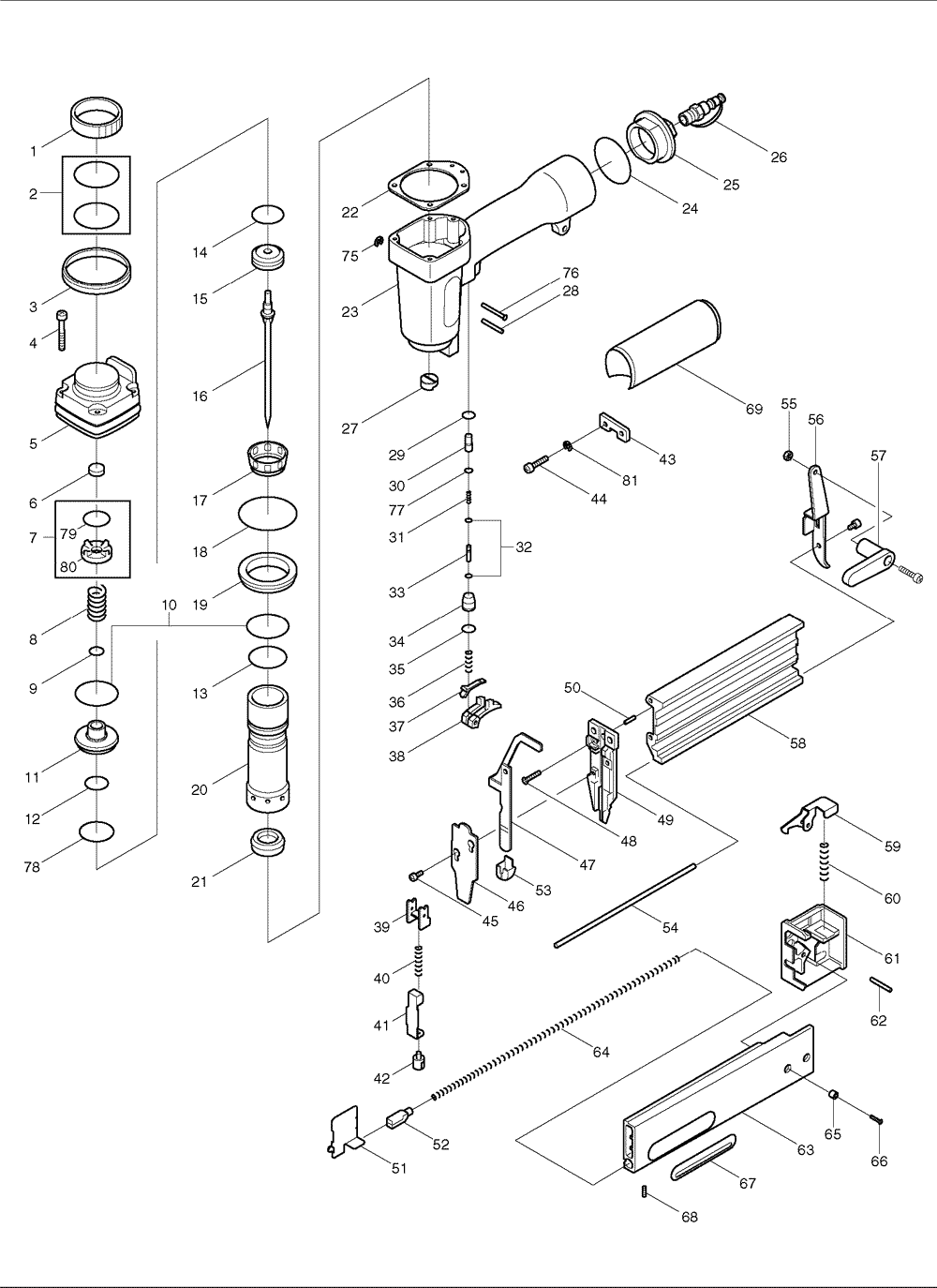

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	A346-07	EXHAUST VALVE COLLAR, AT638	$1.85
56	B271-91	MAGAZINE ASS'Y, AF503	$41.82
2	A311-OK	O RING 35.5-1.8, AT638	$1.85
3	A312-03	COVER GRIP, AT638	$3.50
4	A200-20	SCREW 5-35, AT638	$1.41
5	I230-NO	EXHAUST COVER, AT638	$21.54
6	A343-29	AIR SEAL, AT638	$1.41
7	B346-06	EXHAUST VALVE ASS'Y, AT638	$3.50
8	A210-25	SPRING, AT638	$3.61
9	A311-OP	O RING 9.8-2.4, AT638	$1.08
10	A311-96	O RING 32-2.5, AT638	$1.41
11	A340-06	HEAD VALVE PISTON, AT638	$4.71
12	A311-OR	O RING 13-3, AT638	$1.41
13	A311-40	O RING 26.59-2.95, AT638	$1.41
14	A311-54	O RING 22.9-2.7, AT638	$1.41
15	A262-10	PISTON HEAD, AF503	$5.15
16	A260-20	DRIVE BLADE, AF503	$36.82
17	A334-02	SLEEVE RETAINER, AT638	$1.41
18	A311-OT	O RING 44.8, 2.6, AT638	$1.85
19	A344-02	SPACER, AT638	$3.50
20	A232-23	CYLINDER, AT638	$16.70
21	A341-21	BUMPER, AT638	$10.65
22	A343-24	GASKET, AT638	$5.15
23	I22N-08	BODY, AT638	$42.94
24	A311-OU	O RING, AT638	$1.85
25	A235-AO	TAIL COVER, AT638	$4.71
26	K0300-0421	AIR PLUG W/DUSTER, AF632	$4.71
27	A342-01	NOZZLE, AT638	$1.41
28	A0011-0161	SPRING PIB, AF632	$1.34
29	A311-A2	O RING 11-1.05, AF503	$1.08
30	A351-03	UPPER REMOTE HOUSING, AF503	$1.85
31	A210-A0	CONICAL SPRING, AF503	$1.63
32	A311-22	O RING 1.9-1.2, AT638	$1.08
33	A251-16	REMOTE CORE, AF503	$1.85
34	A251-22	REMOTE HOUSING, AF503	$6.80
35	A311-11	O RING 9.8-1.9, AT638	$1.08
36	A210-02	COMPRESSION SPRING, AF503	$1.34
37	A250-04	TRIGGER A, AF503	$8.45
38	A350-04	TRIGGER B, AF503	$1.85
39	A281-22	GUIDE PLATE, AF503	$3.50
40	A210-96	SPRING, AT638	$1.63
41	A280-47	RELEASE CATCH (B), AF503	$3.50
43	A290-14	SPACER, AF503	$3.50
44	A200-09	SCREW 5-20, AT638	$1.12
45	A200-09	SCREW 5-20, AT638	$1.12
46	A295-30	DRIVER GUIDE COVER, AF503	$5.15
47	A280-46	RELEASE CATCH (A), AF503	$10.10
48	A201-03	SCREW 4-18, AT638	$1.41
49	A294-44	DRIVER GUIDE, AF503	$39.88
50	A206-12	INNER SPRING PIN 2.5-10,AT638	$1.34
51	A275-A1	PUSHER, AF503	$3.50
52	A374-02	SPRING HOLDER, AF503	$3.50
53	A349-04	PAD, AF503	$1.85
54	A276-24	STEEL BAR, AF503	$1.41
55	A0004-0021	NYLON NUT M5, AF632	$1.34
56	A274-66	MAGAZINE SUPPORT, AF503	$7.68
57	A349-06	BELT HOOK, AT638	$1.85
59	A277-16	CLICK LEVER, AF503	$5.15
60	A210-97	SPRING, AF503	$1.63
61	A335-01	PLASTIC COVER, AF503	$3.50
62	A206-49	PIN, AF503	$1.85
64	A210-61	COMPRESSION SPRING, AF503	$2.07
65	A278-21	SPACER, AF503	$1.85
66	A203-27	SCREW 4-25, AF503	$1.08
67	A349-05	SCALEBOARD, AF503	$3.50
68	A203-28	SCREW 3-12, AF503	$1.41
69	A312-04	HANDLE GRIP, AT638	$6.80
75	A0005-0041	E-RING 2.5, AF632	$1.08
76	A0006-0291	STEP PIN 5X28, AF632	$3.50
77	A311-A1	O RING 8-1, AF503	$1.08
78	A311-B9	O RING 24.5-3, AT638	$1.41
79	A311-OQ	O RING 22-1.5, AT638	$1.41
80	A346-06	EXHAUST VALVE SET, AT638	$3.17
81	A0005-0031	WASHER #5X1.1T, AF632	$1.34
401	783201-2	HEX WRENCH 3, AF501	$3.40
402	783202-0	HEX WRENCH 4, JR3000V	$3.24
403	181434-7	OIL SUPPLY 30CC, AF502	$4.50
404	824563-A	PLASTIC TOOL CASE, AT638	$30.20
