Makita AF501 Nailer Parts

Makita AF501 Nailer Parts Image

Makita AF501 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

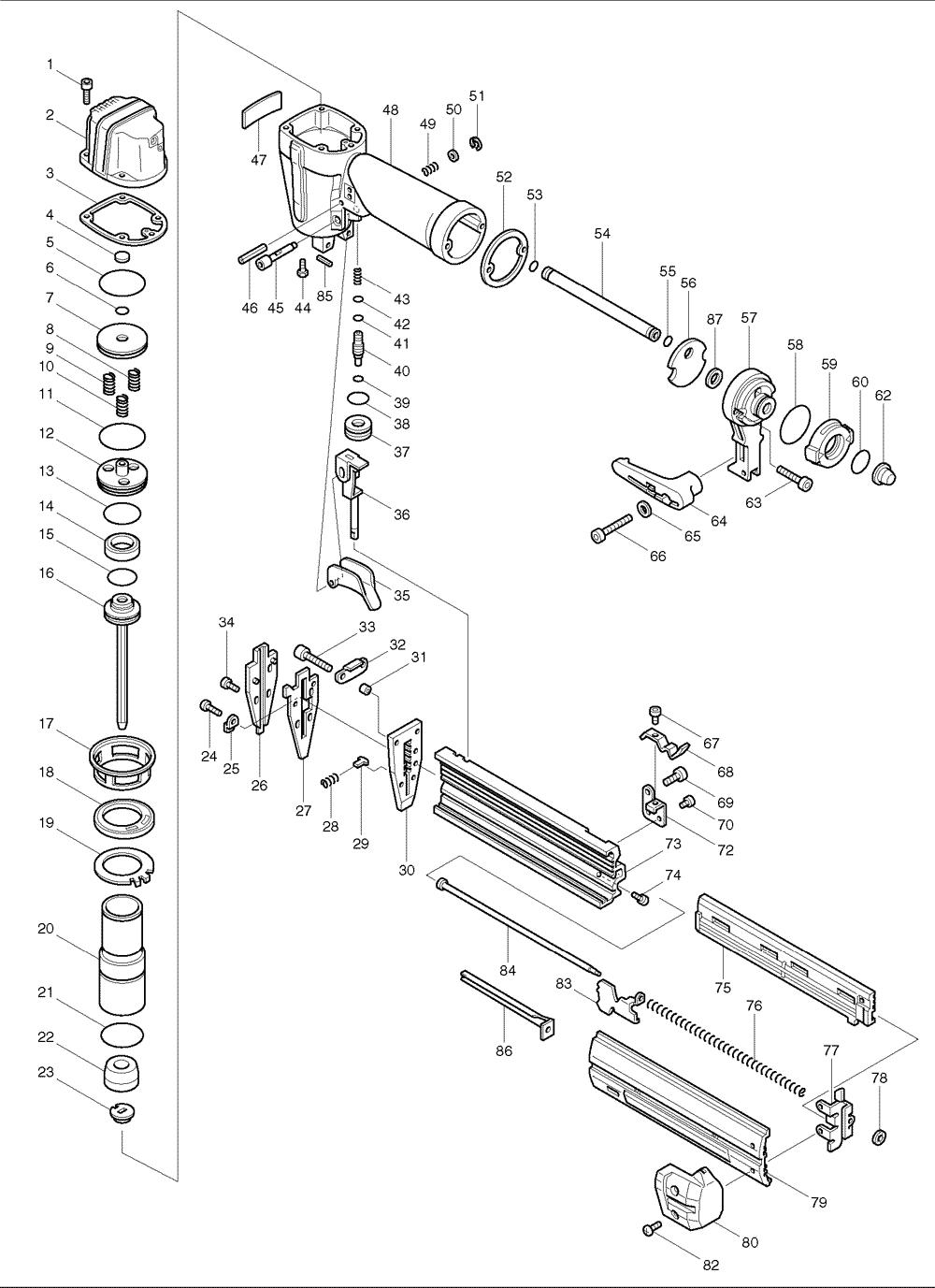

Makita AF501 Nailer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 922127-5 H.S.H. BOLT M4X16, AF502 $1.08
2 151418-9 TOP CAP CPL., AF501 $105.74
3 442113-5 TOP CAP GASKET, AF502 $8.45
4 421429-1 CUSHION V, AF502 $16.70
5 213466-7 O RING 35, AF502 $3.50
6 213007-9 O RING 8, AF502 $0.82
7 315448-6 SEPARATOR, AF502 $16.70
8 231326-1 COMP. SPRING, AF502 $1.34
9 231326-1 COMP. SPRING, AF502 $1.34
10 231326-1 COMP. SPRING, AF502 $1.34
11 213466-7 O RING 35, AF502 $3.50
12 315447-8 HEAD VALVE, AF502 $29.17
13 213413-8 O RING 28, AF502 $1.41
14 421551-4 CUSHION P, AF502 $6.80
14 421189-5 CUSHION P, AF501,T1 $21.76
15 213370-0 O RING 22, AF502 $1.08
16 150370-8 DRIVER CPL., AF501, T1 $99.10
16 150615-4 DRIVER COMPLETE, AF501, T2 $76.30
17 415870-8 COLLAR, AF502 $3.50
18 421807-5 CYLINDER SEPARATOR, AF502 $3.17
19 343913-5 BACKUP RING, AF502 $5.15
20 331411-1 CYLINDER, AF501 $36.21
21 213461-7 O RING 32, AF502 $1.41
24 265014-8 P.H. SCREW M4X12, AF501 $2.95
25 343961-4 HOLDER, AF501 $3.50
27 343917-7 CENTER PLATE, AF501 $29.17
28 233047-1 COMPRESSION SPRING 2, AF501 $2.07
29 331413-7 NAIL STOPPER, AF501 $5.15
30 311906-0 SET PLATE, AF501 $110.97
31 257651-2 SLEEVE 5, AF501 $4.71
32 343971-1 SUPPORTER, AF501 $3.50
33 922242-5 H.S.H. BOLT M5X25, AF502 $1.96
34 922112-8 H.S.H. BOLT M4X10, BO5001 $1.08
35 343918-5 TRIGGER, AF501 $15.05
36 165006-6 RINK, AF501 $35.29
37 322546-9 TRIGGER VALVE CASE, AF501 $23.96
38 213218-6 O RING 16, AF502,HR2811F $0.82
39 213009-5 O RING 4, AF501 $0.53
40 322547-7 TRIGGER VALVE STEM, AF501 $10.10
41 213009-5 O RING 4, AF501 $0.53
42 213023-1 O RING 4, AF501 $0.82
43 231398-6 COMP. SPRING 4, AF501 $0.90
44 265978-6 ADJUST BOLT M4X10, AF501 $6.80
45 162161-5 LOCK PIN 3, AF501 $24.84
46 258020-0 SPRING PIN 2.5-22, AF502 $0.90
47 857441-9 NAME PLATE, AF501 $1.12
48 151417-1 HOUSING CPL., AF501 $188.77
49 231309-1 .COMP. SPRING 5, AF502 $2.07
50 941001-8 FLAT WASHER, AF502 $0.75
51 257903-1 STOP RING E2.3, 3901 $0.49
51 257939-0 STOP RING E-2.3, AF501 $0.53
52 442111-9 INLET CAP GASKET, AF502 $5.15
53 213026-5 O RING 7, AF502 $1.08
54 331412-9 JOINT PIPE, AF502 $9.22
55 213026-5 O RING 7, AF502 $1.08
56 413057-6 INLET FILTER, AF502 $6.14
57 316572-8 INLET CAP, AF502-T1 $52.50
58 213459-4 O RING 32, HK1810 $1.19
58 213488-7 0-RING 32, AF502 $1.08
59 414999-7 EXHAUST COVER, AF502 $5.15
60 213223-3 O RING 16, AF502 $0.82
62 286219-7 CAP 12, AF502 $1.41
63 922242-5 H.S.H. BOLT M5X25, AF502 $1.96
64 415000-1 HOOK, AG125 $6.80
65 941102-2 F. WASHER 5, HM1100C $0.75
66 922252-2 H.S.H. BOLT M5X30, AF501 $1.34
67 922102-1 H.S.H. BOLT M4X6, AF502 $1.08
68 232120-4 LEAF SPRING, AF501 $11.75
69 922212-4 H.S.H. BOLT M5X12, HR3851 $1.08
70 922102-1 H.S.H. BOLT M4X6, AF502 $1.08
72 343903-8 JOINT, AF501 $13.40
73 154407-3 MAGAZINE CPL., AF501 $89.90
74 265401-1 H.S.H. BOLT M4X8, AF501 $3.50
75 415010-8 NAIL GUIDE, AF501 $15.05
76 233062-5 COMPRESSION SPRING 6, AF501 $9.22
77 343901-2 RECEIVER, AF501 $11.75
78 259026-1 PUSH NUT 2.6, AF501 $0.79
79 151416-3 SLIDE DOOR CPL., AF501 $100.40
80 415001-9 DOOR KNOB, AF501 $8.45
82 911113-1 P.H. SCREW M4X10, 4301BV $0.86
83 343905-4 PUSHER, AF501 $3.94
84 322656-2 PUSHER GUIDE, AF501 $4.71
85 258018-7 SPRING PIN 2.5-9, JR3000V-T2 $0.86
86 344092-2 SPRING COVER, AF501 $7.68
87 261094-2 RUBBER WASHER 8, AF502 $1.63
1001 181434-7 OIL SUPPLY 30CC, AF502 $4.50
1002 783202-0 HEX WRENCH 4, JR3000V $3.24
1003 783201-2 HEX WRENCH 3, AF501 $3.40
1004 421444-5 NOSE ADAPTOR, AF502 $4.40
