Makita 9924DB Sander & Polisher Parts

Makita 9924DB Sander & Polisher Parts Image

Makita 9924DB Parts
3 Inch x 24 Inch Belt Sander.

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 9924DB
3 Inch x 24 Inch Bel...
$222.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

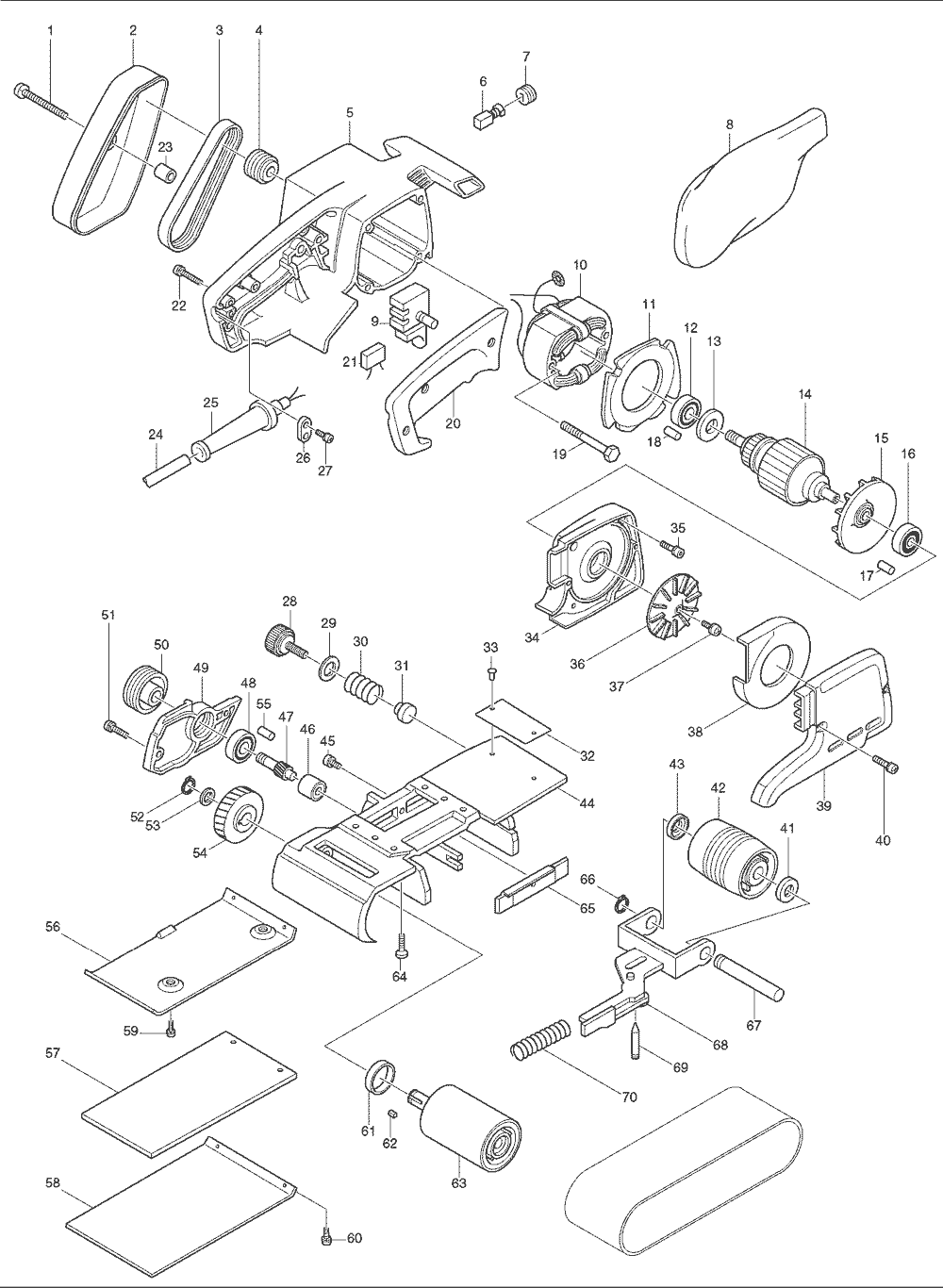

Makita 9924DB Sander & Polisher Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 911261-6 P.H. SCREW M5X40, 9900B $1.19
58 341705-6 STEEL PLATE, 9924DB (T2) $4.49
2 343270-1 BELT COVER, 9924DB $5.92
00 423028-5 GRAPHITE PLATE, 9924DB (T1) $4.49
3 225008-5 POLY V-BELT 5-304, 9900B $27.59
44 151189-8 FRAME, 9924DB $81.30
4 222010-9 V-PULLEY 5-25L, 9900B $7.46
5 156490-6 MOTOR HOUSING, 9924DB $49.57
6 194982-7 CARBON BRUSH SET CB-124 (2/PK), 9045B $5.92
7 643600-9 BRUSH CAP 6-10, 9005B $1.63
8 122296-4 DUST BAG, 9900B $14.94
9 651225-5 SWITCH,JN3200 $21.76
11 411322-7 BAFFLE PLATE, 9900B $3.06
12 211066-7 B. BEARING 6200LLB, BO4552 $10.98
13 681623-9 INS. WASHER, 2012NB $1.63
15 241809-3 FAN 75, 9900B $5.92
17 263002-9 RUBBER PIN 4, 5007NK $0.86
18 263002-9 RUBBER PIN 4, 5007NK $0.86
19 911270-5 P.H. SCREW M5X45, 9924DB $1.74
20 411321-9 HANDLE COVER, 9900B $7.46
22 911158-9 P.H. SCREW M4X30, 9045B $0.86
23 257504-5 SLEEVE 6, 9900B $1.26
24 664026-2 CORD (2X18X16 SJT), 9900B $22.86
25 682502-4 CORD GUARD 8-85, HP2010N $2.51
25 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
26 687001-1 STRAIN RELIEF, 6013BR $0.97
26 687002-9 STRAIN RELIEF, 9217SPC $0.97
27 911133-5 P.H. SCREW M4X18, N9501B $0.86
29 253707-9 F. WASHER 16, 6802BV $1.34
30 231225-7 COMP. SPRING 16, 9900B $1.48
31 411594-4 SHOE, 9900B $1.26
32 862386-8 NAME PLATE, 9924DB $1.12
33 953106-2 RIVET 0-5, HM1500 $0.49
34 152208-3 DUST COLLECTOR BRACKET $18.90
34 312810-6 DUST COLLECTOR BRACKET, 9900B $21.76
35 911241-2 P.H. SCREW M5X25, 9005B $0.86
36 241611-4 FAN 74, 9900B $10.32
37 911211-1 P.H. SCREW M5X12, HM1500B $0.86
38 343271-9 SEPARATOR, 9900B $5.92
39 312809-1 DUST COLLECTOR COVER, 9900B $14.61
40 911131-9 P.H. SCREW M4X18, HR3851 $0.53
41 253922-5 CUP WASHER 12, 9900B $1.63
42 152104-5 TENSION ROLLER, 9900B $21.76
43 253922-5 CUP WASHER 12, 9900B $1.63
44 151189-8 FRAME, 9924DB $81.30
45 911211-1 P.H. SCREW M5X12, HM1500B $0.86
46 212003-4 N. BEARING 810, 6300LR $5.92
47 221193-2 H. GEAR 10, 9900B $18.24
48 211066-7 B. BEARING 6200LLB, BO4552 $10.98
49 312808-3 GEAR COVER, 9900B $12.19
50 222011-7 V-PULLEY 5-45, 9900B $17.47
51 911131-9 P.H. SCREW M4X18, HR3851 $0.53
52 961052-5 RETAINING RING S-12, 9218PBL $0.86
53 253312-2 WASHER 12, 9900B $1.01
54 221070-8 H. GEAR 48, 9900B $21.32
55 263002-9 RUBBER PIN 4, 5007NK $0.86
56 341647-4 BASE PLATE, 9924DB (T2) $7.46
57 423035-8 CORK PLATE, 9924DB (TYPE 2) $5.92
58 341705-6 STEEL PLATE, 9924DB (T2) $4.49
59 911111-5 P.H. SCREW M4X10, LS1011 $0.53
60 911114-9 P.H. SCREW M4X10, LS1013FL $0.86
61 253922-5 CUP WASHER 12, 9900B $1.63
62 254202-2 KEY 4, 9924DB $1.26
63 151113-1 DRIVING ROLLER, 9900B $44.26
64 912227-9 C.S.H. SCREW M5X18, 9900B $0.86
65 155326-6 EDGE SLIDER, 9924B $4.49
66 961052-5 RETAINING RING S-12, 9218PBL $0.86
67 325458-5 TENSION ROLLER SHAFT, 9900B $7.46
68 163104-0 TENSION ROLLER ARM, 9924DB $18.90
69 323634-5 SUPPORT PIN, 9900B $3.06
70 231033-6 COMP. SPRING 11, 9900B $2.07
5001 810146-2 CAUTION LABEL, 6906 $1.17
