Makita 9921 Sander & Polisher Parts

Makita 9921 Sander & Polisher Parts Image

Makita 9921 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

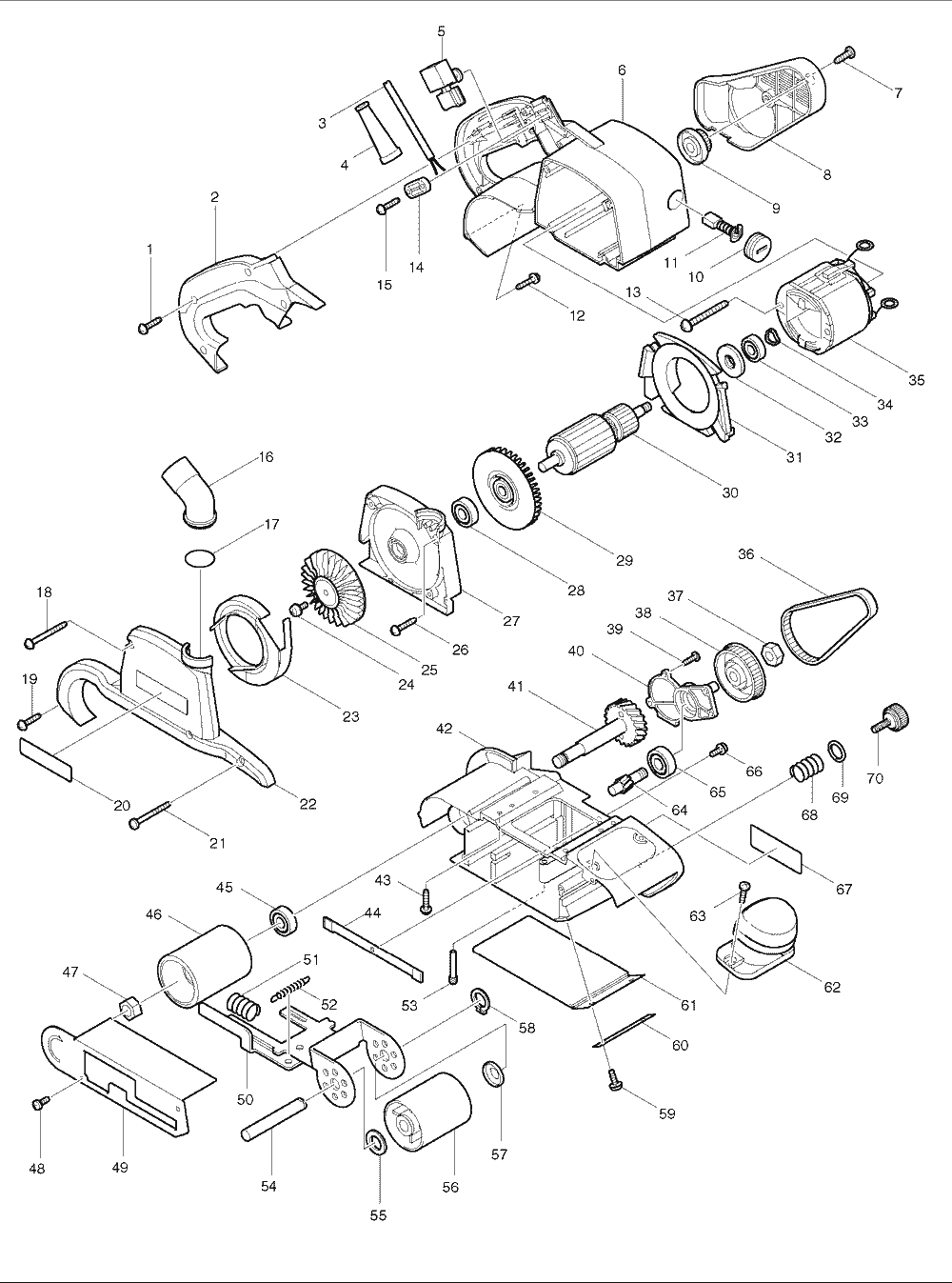

Makita 9921 Sander & Polisher Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
00 214116-7 PLANE BEARING 12, 9921 $2.84
2 416496-9 HANDLE COVER, 9921 $10.65
00 421647-1 CORK RUBBER PLATE, 9921 $5.48
3 664276-9 CORD (2X16X16 SJ), HR5000 $28.15
3 EC162 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 16... $14.19
4 682505-8 CORD GUARD, 2711 $2.51
4 Boot-A This item will be shipped Free Strain Relief fits 14/3 AWG only $4.19
5 650230-9 SWITCH, 9403 $11.53
5 651284-9 SWITCH, 2107F $13.84
6 150981-9 MOTOR HOUSING CPL., 9921 $34.88
7 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
8 416495-1 BELT COVER, 9921 $5.92
9 222147-2 PULLEY 10-24.1, 9921 $9.33
10 643750-0 BRUSH HOLDER CAP, HM1100C $1.63
11 194996-6 CARBON BRUSH CB-303 SET, 9227C $8.99
12 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
13 266056-5 T. SCREW FLANGE PT5X45,9046 $3.28
14 687063-9 STRAIN RELIEF, 4323K $1.26
15 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
16 416497-7 DUST NOZZLE, 9921 $3.06
17 213415-4 O RING 28, 5005BA $1.96
18 266069-6 T. SCREW FLANGE PT4X45 HR2410 $1.74
19 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
20 819064-1 MAKITA MARK, 5402NA $1.26
21 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
23 416494-3 SEPARATOR, 9921 $1.63
24 911213-7 P.H. SCREW M5X12, LS1040 $0.86
25 241662-7 FAN 80, 9921 $8.01
26 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
27 317021-8 DUST COLLECTOR BRACKET, 9921 $12.52
28 211088-7 BALL BEARING 6000DDW, 9005B $13.07
29 240013-1 FAN 84, 9403 $4.49
30 516781-1 ARMATURE ASS'Y 115V, 9921 $88.40
31 416498-5 BAFFLE PLATE, 9921 $3.06
32 681649-1 INSULATION WASHER, 9921 $1.63
33 211088-7 BALL BEARING 6000DDW, 9005B $13.07
34 267715-4 WAVE WASHER 20, 9403 $1.34
35 596191-8 FIELD ASS'Y 115V, 9403 $40.18
36 225081-5 SYNCHRO BELT, 9921 $6.80
38 222148-0 PULLEY 11-55.6, 9921 $10.65
39 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
40 317020-0 GEAR COVER, 9921 $9.22
41 153265-4 HELICAL GEAR 43, 9921-T1 $18.35
41 153291-3 HELICAL GEAR 43 COMPLETE, 9921 $21.65
42 150983-5 FRAME CPL., 9921 $57.80
43 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
44 150846-5 EDGE SLIDER, 9921 $4.49
45 211131-2 BALL BEARING 6001DDW,BO4556 $13.07
46 162200-1 DRIVING ROLLER, 9921 $22.42
47 252087-0 HEX NUT M12-19, 9921 $2.51
48 266026-4 TAPPING SCREW 4X12,5477NB $0.86
49 344622-9 SAFETY COVER, 9921 $4.49
50 163399-5 TENSION ROLLER ARM, 9921 $15.93
51 233235-0 COMP. SPRING 12, 9921 $1.96
52 231819-8 TENSION SPRING 4, 9921 $1.63
53 321980-0 SUPPORT PIN, 9901 $3.06
54 325458-5 TENSION ROLLER SHAFT, 9900B $7.46
55 253922-5 CUP WASHER 12, 9900B $1.63
56 150982-7 TENSION ROLLER CPL., 9921 $21.10
57 253922-5 CUP WASHER 12, 9900B $1.63
58 961052-5 RETAINING RING S-12, 9218PBL $0.86
59 911118-1 P.H. SCREW M4X12, 6221D $0.86
60 344624-5 STRAP WASHER, 9921 $2.18
61 344621-1 STEEL PLATE, 9921 $4.16
62 416499-3 FRONT GRIP, 9403 $5.92
63 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
64 226506-2 HELICAL GEAR 12, 9921-T1 $8.12
64 226551-7 HELICAL GEAR 12, 9921 $8.78
65 211066-7 B. BEARING 6200LLB, BO4552 $10.98
66 911213-7 P.H. SCREW M5X12, LS1040 $0.86
67 859607-7 NAME PLATE, 9921 $2.51
68 231225-7 COMP. SPRING 16, 9900B $1.48
69 253707-9 F. WASHER 16, 6802BV $1.34
1002 122562-9 DUST BAG ASS'Y, 9921 $16.60
5001 654575-7 TERMINAL BLOCK, PC5000C $3.61
