Makita 9911 Sander & Polisher Parts

Makita 9911 Sander & Polisher Parts Image

Makita 9911 Parts
3 Inch x 18 Inch Variable Speed Belt Sander

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 9911
3.2 mm Tungsten Carb...
$8.99

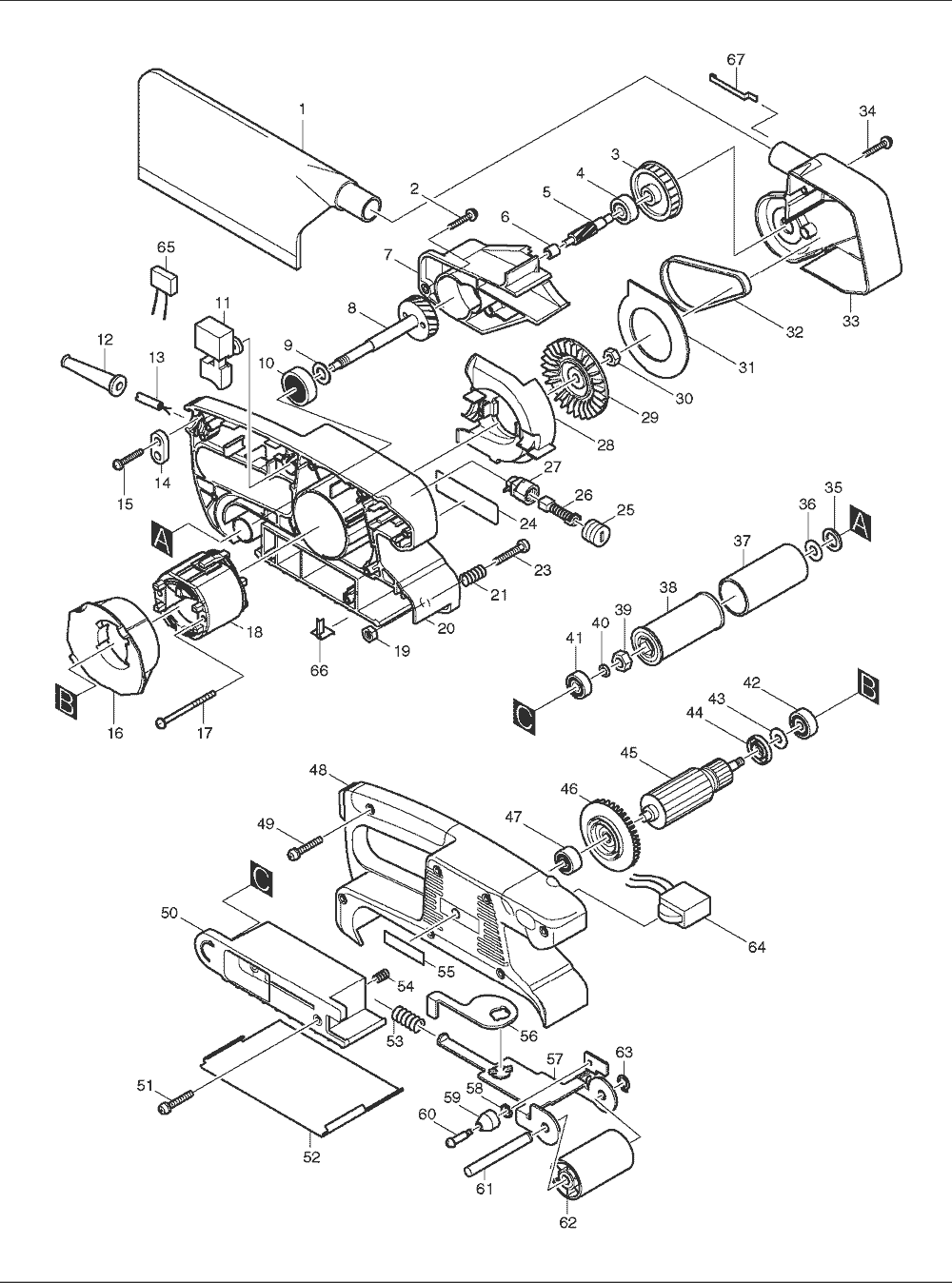

Tool Diagram    (Click image to Zoom in) View larger Image
Makita 9911 Sander & Polisher Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 122548-3 DUST BAG ASS'Y, 9910 $16.60
3 222144-8 PULLEY 8.5-45.1,9910 $10.32
4 210005-4 BALL BEARING 608DDW, 9031 $13.07
5 226494-3 HELICAL GEAR 6, 9910 $8.78
6 212009-2 NEEDLE BEARING 509, 9910 $4.49
7 416420-2 BRACKET, 9910 $5.92
8 153252-3 HELICAL GEAR 31 CPL., 9910 $15.93
9 253758-2 F. WASHER 10, 9901 $1.01
10 211061-7 B. BEARING 6000LLB, 6222DWE $10.98
11 650232-5 SWITCH, 9911 $10.43
11 651285-7 SWITCH, 9910, GV5010 $10.43
12 682502-4 CORD GUARD 8-85, HP2010N $2.51
12 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
13 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
13 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
14 687063-9 STRAIN RELIEF, 4323K $1.26
15 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
16 416418-9 BAFFLE PLATE, 9910 $3.06
18 633391-0 FIELD 115V, 9910 $17.03
19 931202-6 HEX NUT M5, HR2410 $0.79
20 150958-4 HOUSING L, CPL.,9911 $27.59
21 233219-8 COMPRESSION SPRING 6, 9910 $0.86
23 911252-7 P.H. SCREW M5X30, 2711 $0.86
24 859230-8 NAME PLATE, 9911 $2.51
25 643550-8 BRUSH CAP , 9031 $1.63
26 195008-8 CARBON BRUSH 408 SET, 3901 $8.12
27 643922-7 BRUSH HOLDER, JN1601 $3.06
28 416416-3 SCROLL PLATE, 9910 $3.06
29 241660-1 FAN 68, 9910 $11.97
30 252153-3 HEX NUT M6-10, 9910 $1.96
31 344584-1 PLATE, 9910 $1.63
32 225079-2 SYNCHRO BELT 6-300, 9910 $4.49
33 183021-8 BELT COVER SET, 9910 $8.01
35 267177-6 FLAT WASHER 12, 9910 $1.63
36 253865-1 F. WASHER 8, HR5000 $2.18
37 422032-1 RUBBER SLEEVE 29, 9910 $1.63
38 316971-4 DRIVING ROLLER, 9910 $7.46
39 252154-1 HEX NUT M8-13, 9910 $1.96
40 253077-6 F. WASHER 6, 2040 $1.01
41 210022-4 BALL BEARING 626DDW, 9910 $6.69
42 210023-2 BALL BEARING 627DDW, 9910 $6.69
43 253823-7 F. WASHER 7, LS1011 $1.34
44 681658-0 INSULATION WASHER, 9910 $3.06
45 517241-6 ARMATURE ASS'Y 115V, 9910 $50.59
46 240008-4 FAN 60, 9910 $2.84
47 211021-9 BALL BEARING 607LLB, LS1013 $8.78
48 182982-9 HOUSING R, 9911 $20.33
50 416419-7 SHOE, 9910 $5.92
52 344586-7 STEEL PLATE, 9910 $4.16
53 233221-1 COMP. SPRING 12, 9910 $1.48
54 231038-6 COMP. SPRING 5.5, LS1011 $1.63
55 819063-3 MAKITA LABEL, DA3010F $0.96
56 344585-9 LEVER, 9910 $4.16
57 150837-6 TENSION ROLLER ARM CPL., 9910 $10.65
58 267731-6 CUP WASHER, 9910 $1.63
59 416417-1 ROLLER, 9903 $1.63
60 265059-6 SHOULDER SCREW M4, 9910 $1.96
61 323776-5 TENSION ROLLER SHAFT, 9910 $4.49
62 152585-3 TENSION ROLLER CPL., 9910 $5.92
63 961004-6 RETAINING RING S-8, DA391D $0.53
64 631675-0 CONTROLLER, 4304 $18.35
66 344703-9 EARTH SUPPORTER, 9910 $1.52
67 344701-3 EARTH PLATE, 9910 $1.26
