Makita 9902 Sander & Polisher Parts

Makita 9902 Sander & Polisher Parts Image

Makita 9902 Parts
3 Inch x 21 inch Belt Sander

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 9902
Tungsten Carbide Cu...
$8.99
Tool Diagram    (Click image to Zoom in) View larger Image

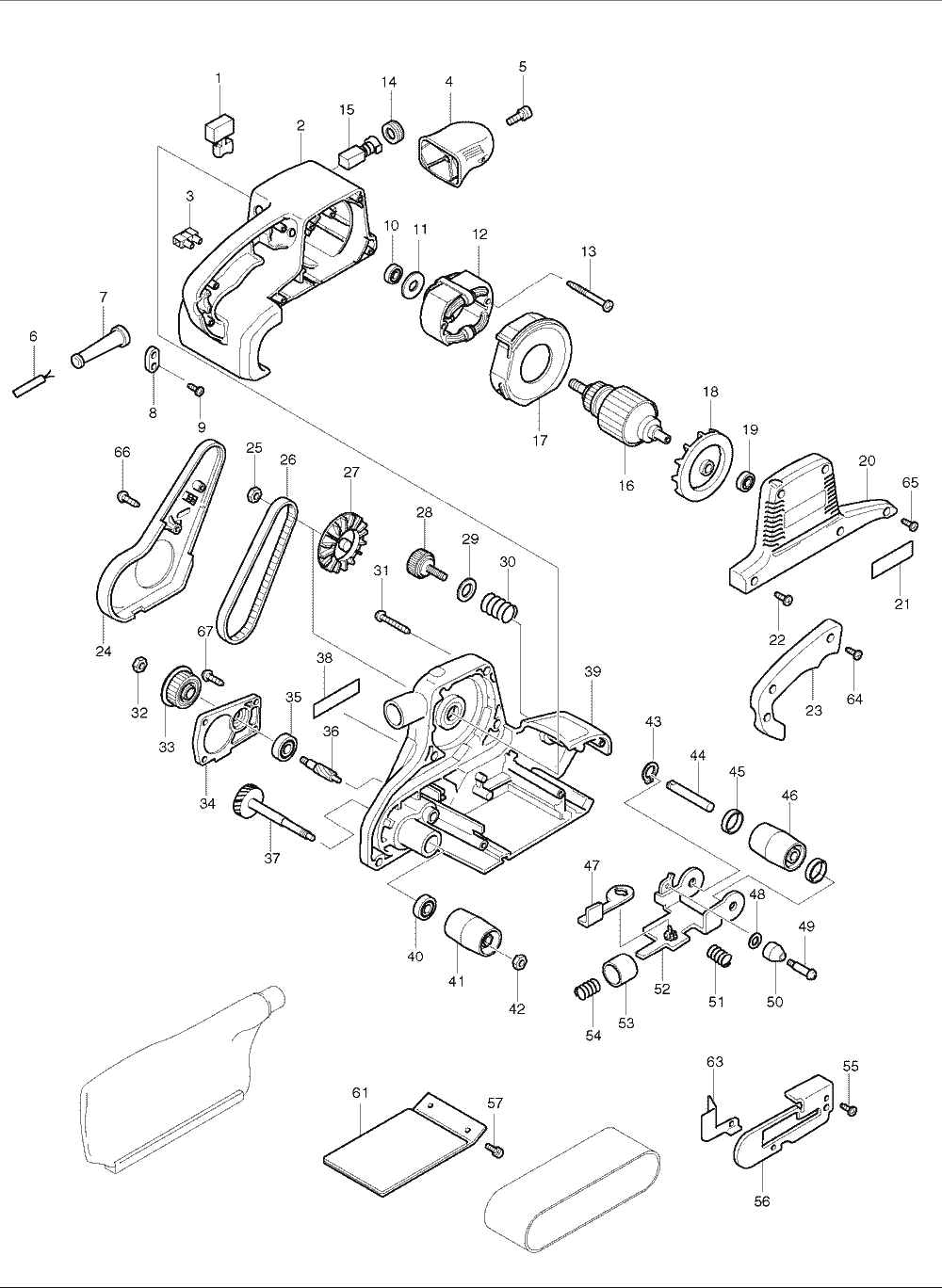

Makita 9902 Sander & Polisher Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 651284-9 SWITCH, 2107F $13.84
2 151743-8 MOTOR HOUSING CPL., 9903 $35.39
3 654532-5 TERMINAL BLOCK, BO4556 $3.06
4 417049-7 FRONT GRIP, 9903 $5.48
5 266173-1 T. SCREW FLANGE PT5X3, GA7011c $1.19
7 682503-2 CORD GUARD 8-90, 9005B $2.51
7 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
8 687063-9 STRAIN RELIEF, 4323K $1.26
9 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
10 211088-7 BALL BEARING 6000DDW, 9005B $13.07
11 681649-1 INSULATION WASHER, 9921 $1.63
12 523401-0 FIELD ASS'Y, 9903 $43.65
13 266056-5 T. SCREW FLANGE PT5X45,9046 $3.28
14 643750-0 BRUSH HOLDER CAP, HM1100C $1.63
15 194996-6 CARBON BRUSH CB-303 SET, 9227C $8.12
16 513336-3 ARMATURE ASS'Y 115V, 9903 $90.60
17 417050-2 BAFFLE PLATE, 9903 $2.84
18 240026-2 FAN 75, 9903 $4.16
19 210023-2 BALL BEARING 627DDW, 9910 $6.69
20 417046-3 MOTOR COVER, 9902 $11.97
21 819001-5 MAKITA LABEL, 9005B $0.96
22 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
23 417051-0 HANDLE COVER, 9903 $5.48
24 417052-8 BELT COVER, 9903 $4.16
25 252153-3 HEX NUT M6-10, 9910 $1.96
26 225084-9 SYNCHRO BELT 6-330, 9903 $5.48
27 241663-5 FAN 76, 9903 $13.29
29 253707-9 F. WASHER 16, 6802BV $1.34
30 231225-7 COMP. SPRING 16, 9900B $1.48
31 266050-7 P.T. SCREW 4X30, 4304 $1.19
32 931402-8 HEX NUT M8, 5037NB $1.34
33 222156-1 PULLEY 9.5-46.0, 9903 $9.33
34 317273-1 GEAR COVER, 9903 $8.45
35 211092-6 B. BEARING 629DDW, BO4556 $10.98
36 226520-8 HELICAL GEAR 10, 9903 $10.21
37 151755-1 HELICAL GEAR 39 CPL., 9903 $17.36
38 852049-4 NAME PLATE, 9902 $1.12
39 151746-2 FRAME COMPLETE, 9903 $72.80
40 211088-7 BALL BEARING 6000DDW, 9005B $13.07
41 162217-4 DRIVING ROLLER, 9903 $17.25
42 252154-1 HEX NUT M8-13, 9910 $1.96
43 961052-5 RETAINING RING S-12, 9218PBL $0.86
44 323931-9 TENSION ROLLER SHAFT, 9903 $4.16
45 253922-5 CUP WASHER 12, 9900B $1.63
46 151753-5 TENSION ROLLER CPL., 9903 $18.57
47 344823-9 LEVER, 9903 $4.16
48 267731-6 CUP WASHER, 9910 $1.63
49 265059-6 SHOULDER SCREW M4, 9910 $1.96
50 416417-1 ROLLER, 9903 $1.63
51 233249-9 COMPRESSION SPRING 7, 9903 $0.86
52 151744-6 TENSION ROLLER ARM CPL., 9903 $10.65
53 267746-3 CUP WASHER 17, 9903 $3.72
54 233250-4 COMPRESSION SPRING 12, 9903 $1.63
55 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
56 344821-3 SAFETY COVER, 9903 $6.80
57 911116-5 P.H. SCREW M4X12, 4301BV $0.53
61 151749-6 STEEL PLATE CPL,9903 $6.80
63 344829-7 GUARD, 9903 $1.52
64 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
65 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
66 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
67 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
1001 122591-2 DUST BAG ASS'Y, 9903 $16.60
