Makita 9900B Sander & Polisher Parts

Makita 9900B Sander & Polisher Parts Image

Makita 9900B Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

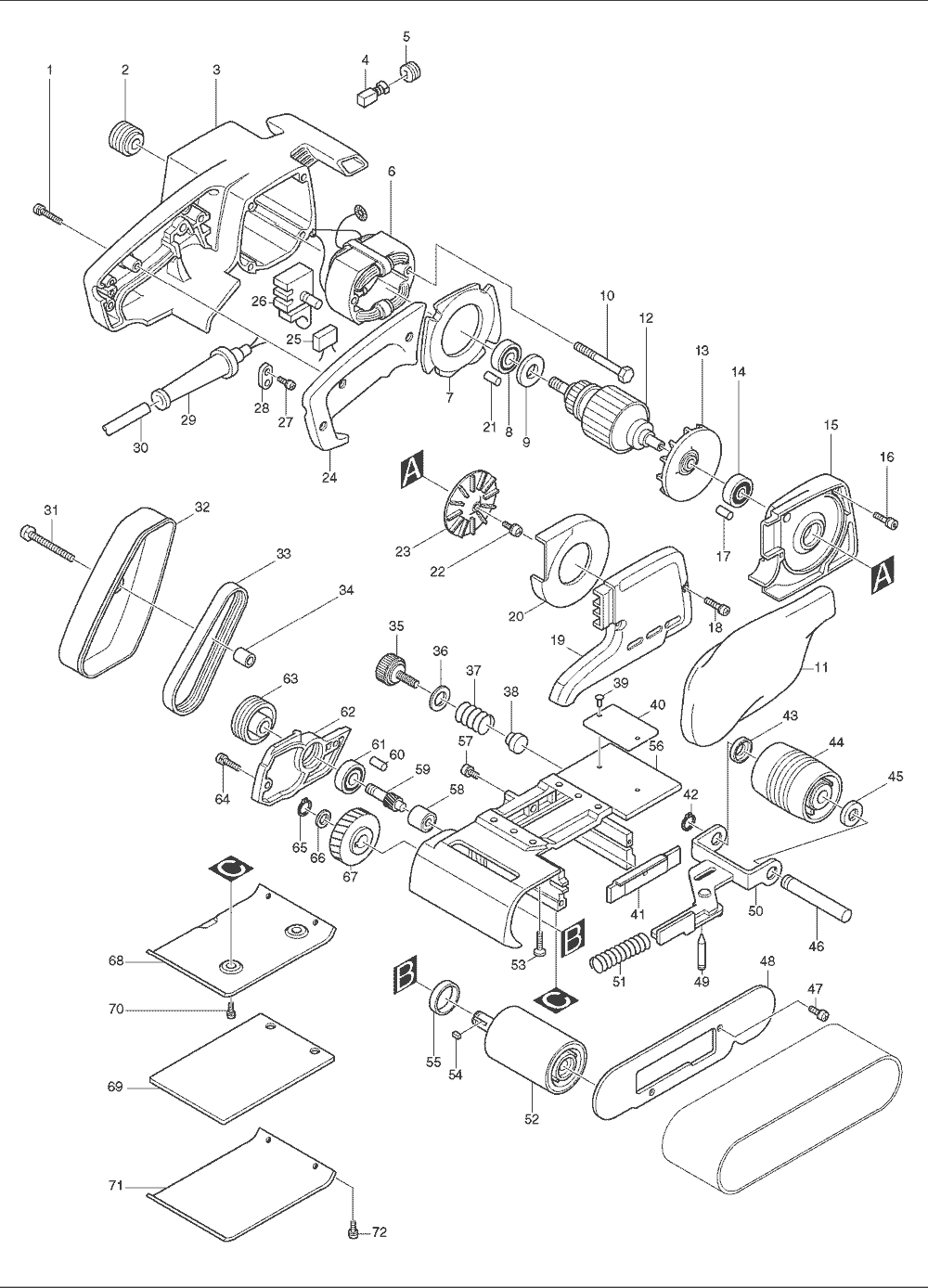

Makita 9900B Sander & Polisher Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 911158-9 P.H. SCREW M4X30, 9045B $0.86

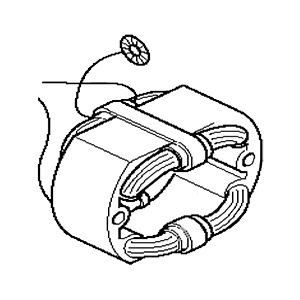

00 623122-5 FIELD, 9900B $54.60
2 222010-9 V-PULLEY 5-25L, 9900B $7.46
4 191945-4 CARBON BRUSH SET CB-124 (2/PK), 9045B $8.99
4 K24 This item will be shipped Free Carbon Brush Set Makita (CB-124), 191945-4, 6431... $8.50
3 156490-6 MOTOR HOUSING, 9924DB $49.57
00 613292-8 ARMATURE, 9900B $109.42
4 194982-7 CARBON BRUSH SET CB-124 (2/PK), 9045B $5.92
5 643600-9 BRUSH CAP 6-10, 9005B $1.63
71 342466-1 STEEL PLATE, 9900B $4.49
41 155325-8 EDGE SLIDER, 9401 $5.92
7 411322-7 BAFFLE PLATE, 9900B $3.06
00 214101-0 P. BEARING 12, 9900B $3.06
8 211066-7 B. BEARING 6200LLB, BO4552 $10.98
11 122296-4 DUST BAG, 9900B $14.94
9 681623-9 INS. WASHER, 2012NB $1.63
10 911270-5 P.H. SCREW M5X45, 9924DB $1.74
11 122296-4 DUST BAG, 9900B $14.94
13 241809-3 FAN 75, 9900B $5.92
15 152208-3 DUST COLLECTOR BRACKET $18.90
15 312810-6 DUST COLLECTOR BRACKET, 9900B $21.76
16 911241-2 P.H. SCREW M5X25, 9005B $0.86
17 263002-9 RUBBER PIN 4, 5007NK $0.86
18 911131-9 P.H. SCREW M4X18, HR3851 $0.53
19 312809-1 DUST COLLECTOR COVER, 9900B $14.61
20 343271-9 SEPARATOR, 9900B $5.92
21 263002-9 RUBBER PIN 4, 5007NK $0.86
22 911211-1 P.H. SCREW M5X12, HM1500B $0.86
23 241611-4 FAN 74, 9900B $10.32
24 411321-9 HANDLE COVER, 9900B $7.46
26 651225-5 SWITCH,JN3200 $21.76
27 911133-5 P.H. SCREW M4X18, N9501B $0.86
28 687001-1 STRAIN RELIEF, 6013BR $0.97
29 682502-4 CORD GUARD 8-85, HP2010N $2.51
29 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
30 664026-2 CORD (2X18X16 SJT), 9900B $22.86
31 911261-6 P.H. SCREW M5X40, 9900B $1.19
32 343270-1 BELT COVER, 9924DB $5.92
33 225008-5 POLY V-BELT 5-304, 9900B $27.59
34 257504-5 SLEEVE 6, 9900B $1.26
36 253707-9 F. WASHER 16, 6802BV $1.34
37 231225-7 COMP. SPRING 16, 9900B $1.48
38 411594-4 SHOE, 9900B $1.26
39 953106-2 RIVET 0-5, HM1500 $0.49
40 815002-1 NAME PLATE, 9900B $2.51
41 155326-6 EDGE SLIDER, 9924B $4.49
42 961052-5 RETAINING RING S-12, 9218PBL $0.86
43 253922-5 CUP WASHER 12, 9900B $1.63
44 152104-5 TENSION ROLLER, 9900B $21.76
45 253922-5 CUP WASHER 12, 9900B $1.63
46 325458-5 TENSION ROLLER SHAFT, 9900B $7.46
47 911111-5 P.H. SCREW M4X10, LS1011 $0.53
48 341359-9 SAFETY COVER, 9900B $4.49
49 323634-5 SUPPORT PIN, 9900B $3.06
50 163083-2 TENSION ROLLER ARM, 9900B $17.47
51 231033-6 COMP. SPRING 11, 9900B $2.07
52 151113-1 DRIVING ROLLER, 9900B $44.26
53 912227-9 C.S.H. SCREW M5X18, 9900B $0.86
54 254202-2 KEY 4, 9924DB $1.26
55 253922-5 CUP WASHER 12, 9900B $1.63
57 911211-1 P.H. SCREW M5X12, HM1500B $0.86
58 212003-4 N. BEARING 810, 6300LR $5.92
59 221193-2 H. GEAR 10, 9900B $18.24
60 263002-9 RUBBER PIN 4, 5007NK $0.86
61 211066-7 B. BEARING 6200LLB, BO4552 $10.98
62 312808-3 GEAR COVER, 9900B $12.19
63 222011-7 V-PULLEY 5-45, 9900B $17.47
64 911131-9 P.H. SCREW M4X18, HR3851 $0.53
65 961052-5 RETAINING RING S-12, 9218PBL $0.86
66 253312-2 WASHER 12, 9900B $1.01
67 221070-8 H. GEAR 48, 9900B $21.32
68 343269-6 BASE PLATE, 9900B $8.78
70 911111-5 P.H. SCREW M4X10, LS1011 $0.53
71 342466-1 STEEL PLATE, 9900B $4.49
72 911114-9 P.H. SCREW M4X10, LS1013FL $0.86
400 342466-1 STEEL PLATE, 9900B $4.49
904 819063-3 MAKITA LABEL, DA3010F $0.96
