Makita 9741 Sander & Polisher Parts

Makita 9741 Sander & Polisher Parts Image

Makita 9741 Parts
4-Inch Long Cylinder Wheel Sander

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 9741
4-Inch Long Cylinder...
$496.99
Tool Diagram    (Click image to Zoom in) View larger Image

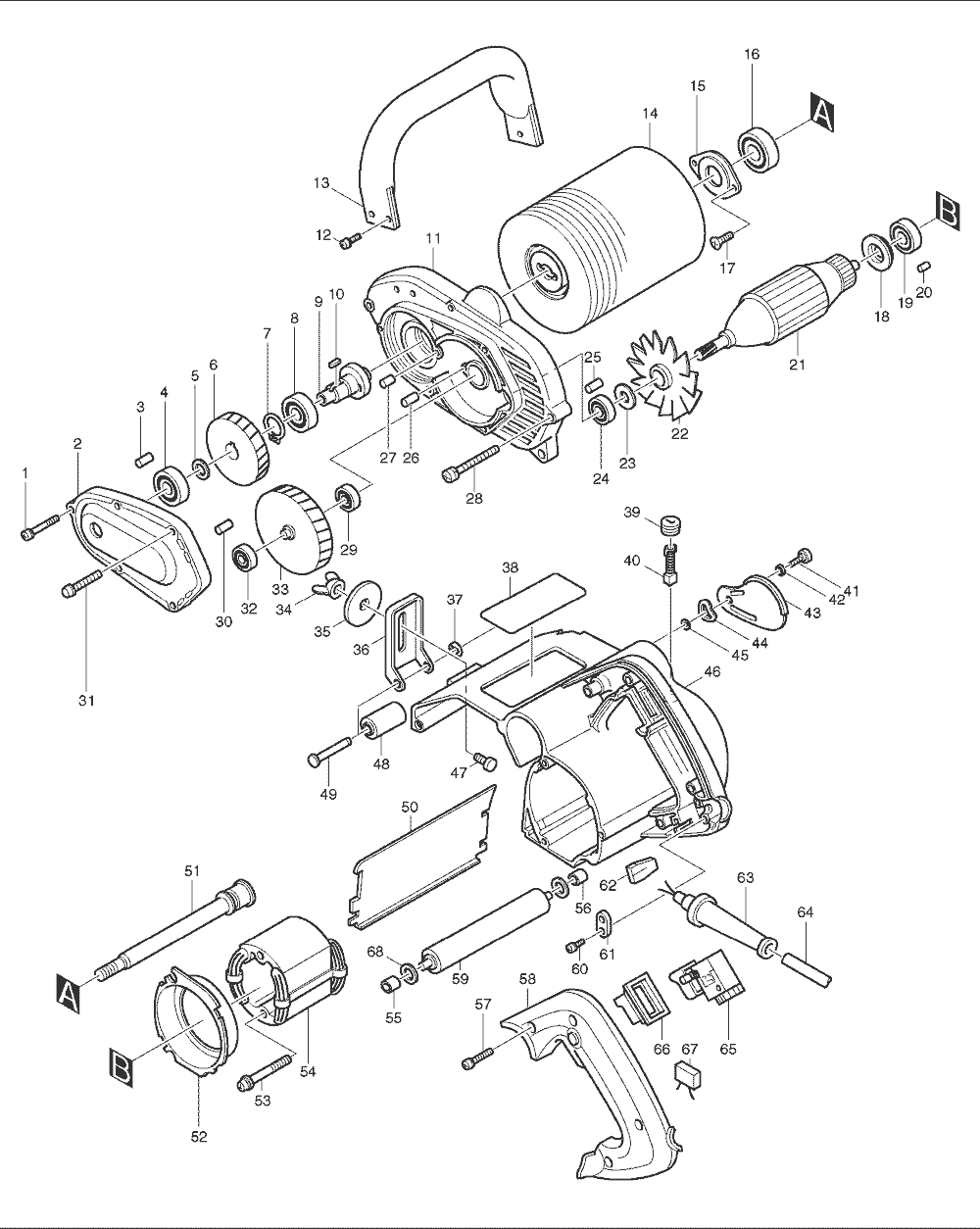

Makita 9741 Sander & Polisher Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 911248-8 P.H. SCREW M5X28, HM1500 $1.19
12 911218-7 P.H. SCREW M5X14, DA6300 $0.86
1 911248-8 P.H. SCREW M5X28, HM1500 $1.19
2 157777-9 GEAR HOUSING COVER, 9741 $8.45
3 263002-9 RUBBER PIN 4, 5007NK $0.86
28 911258-5 P.H. SCREW M5X35, 9045N $1.19
4 211101-1 BALL BEARING 6001LLB,9218PB $13.07
31 911278-9 P.H. SCREW M5X55, HR2000 $1.19
5 253744-3 F. WASHER 12, HR2410 $1.34
21 512926-9 ARMATURE ASSEMBLY, 9741 $109.42
6 221756-4 HELICAL GEAR 53, 9741 $24.51
00 622686-6 FIELD, 9741 $59.90
7 961055-9 RETAINING RING S-15, 5007F $1.19
8 211236-8 BALL BEARING 6002DDW, 5007NK $13.07
5 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
9 163269-8 SPINDLE, 9741 $30.49
10 254219-5 KEY 4, 9741 $2.84
11 157776-1 GEAR HOUSING, 9741 $18.02
12 911218-7 P.H. SCREW M5X14, DA6300 $0.86
13 273623-9 GRIP, 9741 $18.57
14 794379-6 NYLON BRUSH WHEEL 120-100, 9741 $299.00
15 285661-9 BEARING RETAINER, 2012 $3.17
16 211275-8 BALL BEARING 6003DDW, 5007NK $19.56
17 912122-3 C.S.H SCREW M4X14,5005BA $0.53
18 681625-5 INS. WASHER, 5007NK $1.63
19 211031-6 BALL BEARING 608LLB, 9227C $10.98
20 263014-2 RUBBER PIN 4, 9217SPC $1.19
21 512926-9 ARMATURE ASSEMBLY, 9741 $109.42
22 241113-0 FAN $5.92
23 253024-7 F. WASHER 10, LS0714 $1.34
23 213059-0 DUST SEAL, DA6300 $3.06
24 211061-7 B. BEARING 6000LLB, 6222DWE $10.98
24 211088-7 BALL BEARING 6000DDW, 9005B $13.07
25 263002-9 RUBBER PIN 4, 5007NK $0.86
26 263002-9 RUBBER PIN 4, 5007NK $0.86
27 263005-3 RUBBER PIN 6, BHP452 $0.86
28 911258-5 P.H. SCREW M5X35, 9045N $1.19
29 211019-6 BALL BEARING 626, 9901 $10.98
30 263002-9 RUBBER PIN 4, 5007NK $0.86
31 911278-9 P.H. SCREW M5X55, HR2000 $1.19
32 211019-6 BALL BEARING 626, 9901 $10.98
33 153168-2 GEAR COMPLETE 64, 9741 $38.25
34 934301-3 WING NUT M6, N1900B $1.96
35 253196-8 F. WASHER 6, 2012 $2.18
36 343434-7 DEPTH GUIDE, 9741 $4.16
37 961018-5 STOP RING E-5, LS1011 $0.53
38 855929-3 NAME PLATE, 9741 $1.36
39 643600-9 BRUSH CAP 6-10, 9005B $1.63
40 194982-7 CARBON BRUSH SET CB-124 (2/PK), 9045B $5.92
41 251323-1 P.H. SCREW M4, 9741 $3.28
42 253308-3 T. WASHER 6, JN1600 $1.01
43 343436-3 COVER PLATE, 9741 $4.16
44 253980-1 WAVE WASHER 14, 9741 $1.34
45 253874-0 F. WASHER 4, LS1016L $1.34
46 157798-1 HOUSING, 9741 $53.80
47 251919-8 C.S.N. BOLT M6X20, 5402NA $1.34
48 162134-8 FRONT ROLLER, 9741 $4.16
49 256655-1 PIN 7, 9741 $3.28
50 343435-5 PLATE, 9741 $4.16
51 322071-0 ARBOR, 9741 $23.74
52 410957-1 BAFFLE PLATE, 9741 $4.16
53 911285-2 P.H. SCREW M5X60, 4200H $1.96
55 262515-7 SLEEVE 6, 9741 $1.52
56 262515-7 SLEEVE 6, 9741 $1.52
57 911153-9 P.H. SCREW M4X28, JR3000V $0.86
58 410954-7 HANDLE COVER, 9741 $10.65
59 162133-0 ROLLER, 9741 $8.01
60 911133-5 P.H. SCREW M4X18, N9501B $0.86
61 687002-9 STRAIN RELIEF, 9217SPC $0.97
62 423096-8 SPONGE SEAL, 9741 $0.66
63 682502-4 CORD GUARD 8-85, HP2010N $2.51
63 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
65 651332-4 SWITCH, 9741 $31.00
66 421323-7 SWITCH COVER, 9741 $2.84
68 941152-7 F. WASHER 6, HM1500 $0.75
401 783204-6 HEX WRENCH 6, 3705, HR5000 $3.40
