Makita 9566CV Grinder Parts

Makita 9566CV Parts

6 Inch 12.0 amps industrial cut-off Angle Grinder

Download Schematic

Time to buy a new tool?

Makita 9566CV

6 Inch 12.0 amps ind...

$177.99

Free Shipping

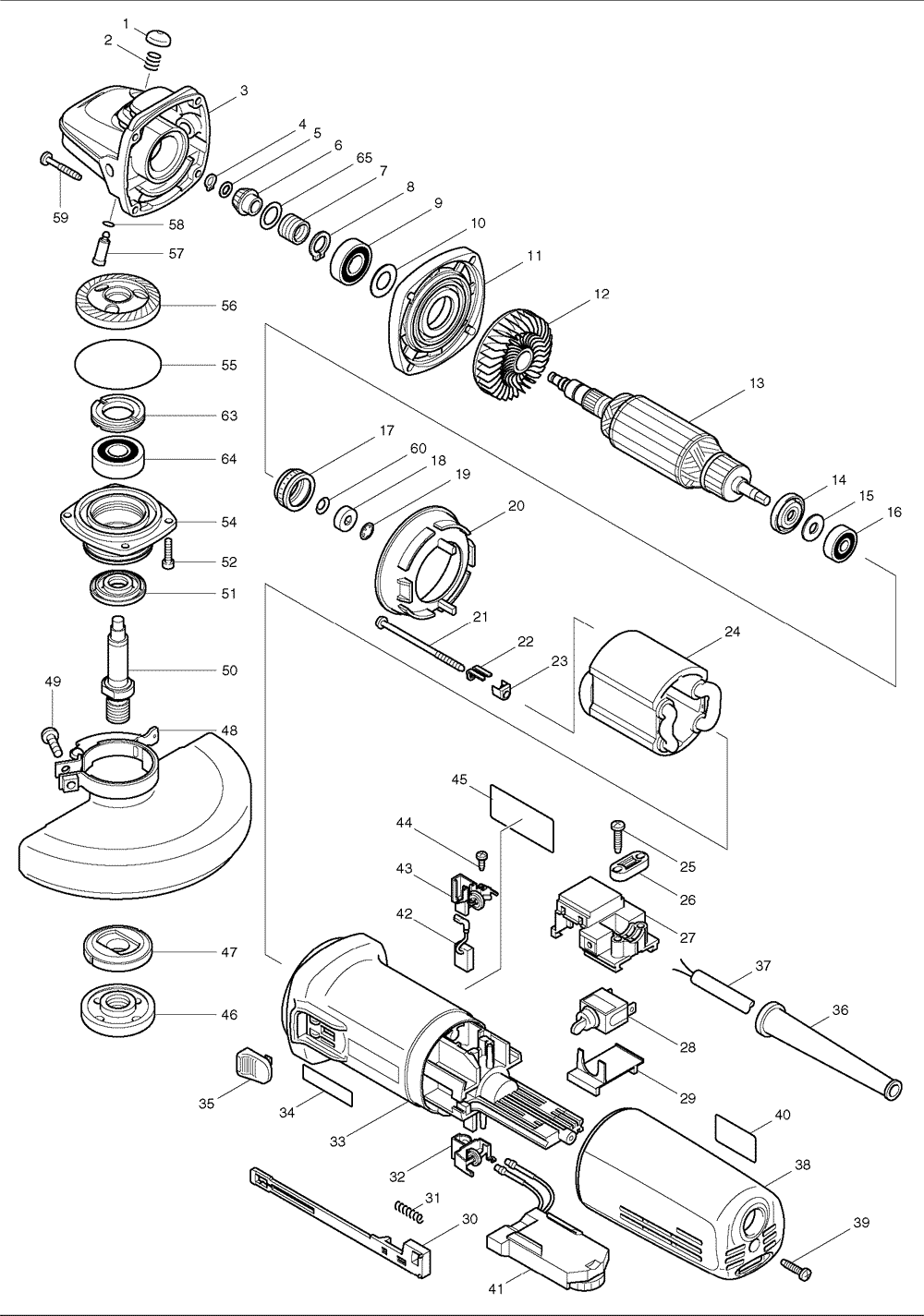

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	417236-8	PIN CAP, 9566CV	$1.52
1	418067-8	PIN CAP, PW5001C	$1.52
2	233072-2	COMPRESSION SPRING 8, 9523NB	$0.86
3	153488-4	GEAR HOUSING CPLT., PW5001C	$23.41
4	961002-0	RETAINING RING S-6, 6012HDW	$0.53
5	253077-6	F. WASHER 6, 2040	$1.01
6	227429-7	SPIRAL BEVEL GEAR 9, 9566CV	$12.52
7	233901-9	LOCK SPRING 12, GD0800C	$4.93
8	961052-5	RETAINING RING S-12, 9218PBL	$0.86
9	211142-7	BALL BEARING 6001LLB, 9565CV	$9.99
10	253084-9	F. WASHER 12, 5014NB	$1.63
11	317359-1	GEAR HOUSING COVER, 9564CV	$12.52
12	240033-5	FAN 57, BO6040	$5.48
13	515206-2	ARMATURE ASS'Y 115V, 9566CV	$99.14
14	681656-4	INSULATION WASHER, GD0800C	$1.34
15	253823-7	F. WASHER 7, LS1011	$1.34
16	210027-4	BALL BEARING 627DDW, BO6040	$6.03
17	421738-8	LABYRINTH RUBBER RING 22, BO6040	$8.01
18	688117-5	MAGNET SLEEVE, GD0800C	$4.16
19	259039-2	SELF LOCK 6, 3707FC	$0.49
20	413076-2	BAFFLE PLATE, GD0800C	$2.84
21	266258-3	TAPPING SCREW 4X70, 9563CV	$1.48
22	344871-8	RETAINER, GD0800C	$1.26
23	417237-6	INSULATION COVER, 9564CV	$1.52
24	626501-6	FIELD 115V, 9564CV	$61.60
25	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
26	687063-9	STRAIN RELIEF, 4323K	$1.26
27	632999-7	SWITCH BLOCK, GD0800C	$8.01
28	651418-4	SWITCH, 9564CV	$17.25
29	687113-0	COVER, GD0800C	$1.52
30	417186-7	SWITCH LEVER, 9563CV	$2.84
31	233071-4	COMPRESSION SPRING 4, JN1601	$0.86
32	643760-7	BRUSH HOLDER, 9557NB	$4.16
33	153775-1	MOTOR HOUSING CPL., 9564CV	$15.93
35	417813-6	SWITCH KNOB, BO6040	$1.52
36	682566-8	CORD GUARD 10, 9564CV	$2.51
36	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
38	417185-9	REAR COVER, BO6040	$8.01
38	158315-0	REAR COVER, 9566CV	$9.77
39	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
40	816807-2	INDICATION LABEL, 9566CV	$2.40
41	631493-6	CONTROLLER, 9566CV	$53.70
42	194999-0	CARBON BRUSH SET CB-318,GD0800C	$10.43
43	643760-7	BRUSH HOLDER, 9557NB	$4.16
44	266256-7	TAPPING SCREW PT3X10, GD0800C	$0.86
45	853737-6	NAME PLATE, 9556CV	$1.21
46	224574-9	LOCK NUT 5/8-48, 9566CV	$10.60
47	224390-9	INNER FLANGE 48, 9566CV	$10.60
48	165486-6	COVER FOR CUT OFF WHEEL, 9566CV	$41.40
49	251391-4	P.H.SCREW M5X16,9523NB	$1.96
50	324038-4	SPINDLE, 9561CV	$10.65
51	415300-9	LABYRINTH RING, 9564CV	$1.52
52	265490-6	HEX BOLT M4 X 16, 9560CV	$1.08
54	318302-3	BEARING BOX W/O BEARING, 9566CV	$5.15
55	213673-2	O RING 52, 9561CV	$1.74
56	227430-2	SPIRAL BEVEL GEAR 35, 9566CV	$18.02
57	256459-1	PIN, 9564CV	$1.74
58	213048-5	O RING 6, 9561CV	$0.86
59	266257-5	TAPPING SCREW M4X28, 9561CV	$1.19
60	267756-0	WAVE WASHER 6, 9561CV	$1.01
63	285841-7	BEARING RETAINER 19-33, 9566CV	$2.84
64	211129-9	BALL BEARING 6201DDW, GA4030	$13.07
65	253052-2	F. WASHER 12, 9031	$1.34
66	819329-1	CLEAR LABEL, 9564CV	$0.42
1001	153489-2	GRIP 36, 9557NB	$2.84
1002	782412-6	LOCK NUT WRENCH 28, GA7911	$8.40
