Makita 9565PC Grinder Parts

Makita 9565PC Parts

5 Inch Angle Grinder with Paddle Switch (Replacement of 9565)

Download Schematic

Time to buy a new tool?

Makita 9565PC

5 Inch Angle Grinder...

$161.99

Free Shipping

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	418067-8	PIN CAP, PW5001C	$1.52

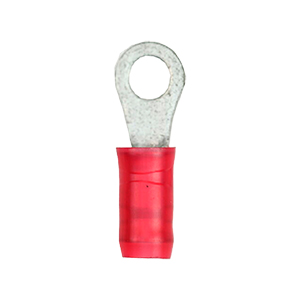

00	654233-5	INSULATED TERMINAL, 9565PC	$0.75
2	233072-2	COMPRESSION SPRING 8, 9523NB	$0.86
3	153488-4	GEAR HOUSING CPLT., PW5001C	$23.41
4	931303-0	HEX NUT M6, 2012	$0.79
5	253077-6	F. WASHER 6, 2040	$1.01
6	227513-8	SPIRAL BEVEL GEAR 11, 9564CV	$5.37
8	233901-9	LOCK SPRING 12, GD0800C	$4.93
9	961052-5	RETAINING RING S-12, 9218PBL	$0.86
10	210105-0	BALL BEARING 6001LLU, PW5001C	$8.01
11	253084-9	F. WASHER 12, 5014NB	$1.63
12	317359-1	GEAR HOUSING COVER, 9564CV	$12.52
13	240033-5	FAN 57, BO6040	$5.48
15	681656-4	INSULATION WASHER, GD0800C	$1.34
16	253823-7	F. WASHER 7, LS1011	$1.34
17	210027-4	BALL BEARING 627DDW, BO6040	$6.03
18	421738-8	LABYRINTH RUBBER RING 22, BO6040	$8.01
19	267756-0	WAVE WASHER 6, 9561CV	$1.01
20	688117-5	MAGNET SLEEVE, GD0800C	$4.16
21	259039-2	SELF LOCK 6, 3707FC	$0.49
22	413076-2	BAFFLE PLATE, GD0800C	$2.84
23	266258-3	TAPPING SCREW 4X70, 9563CV	$1.48
24	344871-8	RETAINER, GD0800C	$1.26
25	417237-6	INSULATION COVER, 9564CV	$1.52
26	626501-6	FIELD 115V, 9564CV	$61.60
26	626596-9	FIELD 115V, 9564PC	$17.25
27	266257-5	TAPPING SCREW M4X28, 9561CV	$1.19
28	213048-5	O RING 6, 9561CV	$0.86
29	256459-1	PIN, 9564CV	$1.74
30	227514-6	SPRIVAL BEVEL GEAR 38, 9564CV	$9.88
31	213673-2	O RING 52, 9561CV	$1.74
32	285841-7	BEARING RETAINER 19-33, 9566CV	$2.84
33	211129-9	BALL BEARING 6201DDW, GA4030	$13.07
34	318302-3	BEARING BOX W/O BEARING, 9566CV	$5.15
35	265490-6	HEX BOLT M4 X 16, 9560CV	$1.08
36	415300-9	LABYRINTH RING, 9564CV	$1.52
37	324038-4	SPINDLE, 9561CV	$10.65
38	251391-4	P.H.SCREW M5X16,9523NB	$1.96
39	135108-2	TOOLLESS WHEEL COVER, 9565CV	$16.60
40	224399-1	INNER FLANGE 45, 9554NB	$10.60
41	193465-4	LOCK NUT 5/8-45, 9005B REPLACES 224568-4	$12.60
42	158518-6	MOTOR HOUSING COMPLETE, 9564PC	$12.41
43	864145-6	NAME PLATE,9565PC	$1.17
44	631786-1	CONTROLLER, 9564PC	$37.02
47	188364-3	REAR COVER SET, 9564PC	$7.68
48	266048-4	T. SCREW 4X40, BO4556	$1.19
49	682566-8	CORD GUARD 10, 9564CV	$2.51
49	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
51	687169-3	STRAIN RELIEF, HP1621F	$0.97
52	266192-7	TAPPING SCREW 4X14, 2012NB	$1.19
53	643760-7	BRUSH HOLDER, 9557NB	$4.16
54	266256-7	TAPPING SCREW PT3X10, GD0800C	$0.86
55	194999-0	CARBON BRUSH SET CB-318,GD0800C	$10.43
56	650579-7	SWITCH, BGA452	$11.53
57	265954-0	TAPPING SCREW BIND PT3X8, GA4030	$0.53
58	345504-8	PLATE, 9557PB	$1.30
59	154584-1	SWITCH LEVER B ,9564PC	$2.73
60	188364-3	REAR COVER SET, 9564PC	$7.68
61	819356-8	CLEAR LABEL, 9565PCV	$2.40
1001	153489-2	GRIP 36, 9557NB	$2.84
1003	782424-9	LOCK NUT WRENCH 28, BGA452	$8.40
