Makita 9554NB Grinder Parts

Makita 9554NB Parts

4-1/2 Inch Angle Grinder

Download Schematic

Time to buy a new tool?

Makita 9554NB

4-1/2 Inch Angle Gri...

$57.99

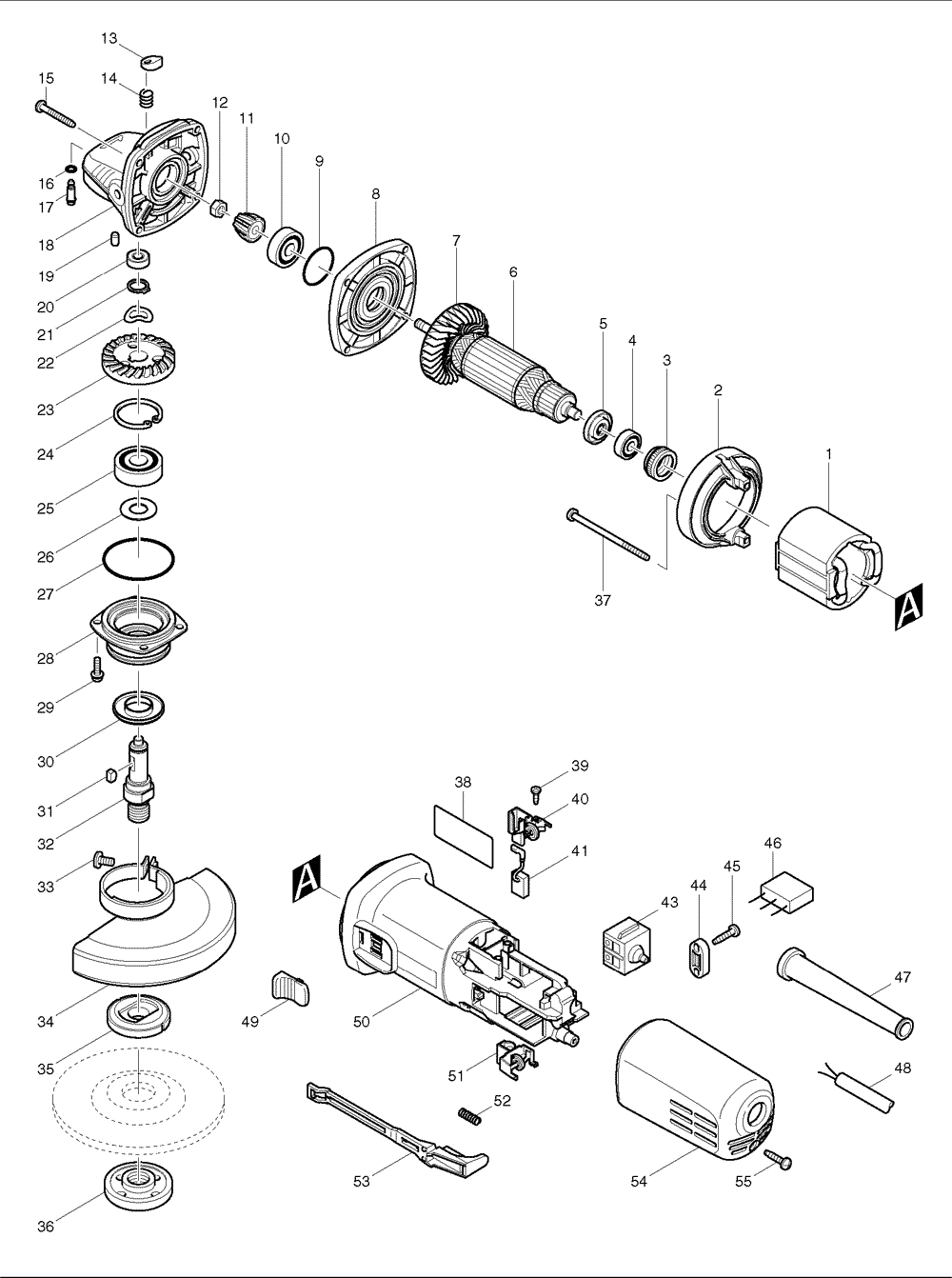

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	621711-0	FIELD 115V, 9553NB	$15.16
2	418795-5	BAFFLE PLATE, 9553NB	$0.97
3	421868-5	LABYRINTH RUBBER RING, GA4030	$1.52
4	210034-7	BALL BEARING 607LLB, BO4556	$4.16
5	681636-0	INSULATION WASHER, GA4030	$3.72
6	515616-3	ARMATURE ASS'Y 115V, 9553NB	$19.45
7	240076-7	FAN 56, 9557PB	$1.52
8	317821-6	GEAR HOUSING COVER, 9553NB	$4.27
9	213445-5	O-RING 26,9557NB	$0.86
10	210042-8	BALL BEARING 629LLB, 5277NB	$6.03
11	227464-5	SPIRAL BEVEL GEAR 10,9554NB	$4.27
12	252186-8	HEX. NUT M6, GA4030	$0.79
13	417771-6	PIN CAP, 9557NB	$0.75
14	233376-2	COMPRESSION SPRING 8, 9557NB	$0.79
15	266361-0	TAPPING SCREW 4X30,9553NB	$0.53
16	213960-9	O RING 5, GA4530	$0.53
17	256486-8	SHOULDER PIN 4, 9553NB	$1.19
18	317814-3	GEAR HOUSING, 9553NB	$5.70
19	263002-9	RUBBER PIN 4, 5007NK	$0.86
20	210033-9	BALL BEARING 696ZZ, GA4030	$4.16
21	961052-5	RETAINING RING S-12, 9218PBL	$0.86
22	267794-2	WAVE WASHER 12, 9557NB	$1.01
23	227505-7	SPIRAL BEVEL GEAR 37, 9557PB	$4.27
24	962151-6	RETAINING RING R-32, 9005B	$1.48
25	211129-9	BALL BEARING 6201DDW, GA4030	$13.07
26	267238-2	FLAT WASHER 12, 9557NB	$0.75
27	213622-9	O RING 45, 9557PB	$0.53
28	317819-3	BEARING BOX, 9553NB	$4.16
29	265099-4	P.H. SCREW M4X14, 9557NB	$0.53
30	345464-4	LABYRINTH RING, GA4030	$0.75
31	254011-9	WOODRUFF KEY 4, 9557PB	$1.26
32	324474-4	SPINDLE, 9554NB	$4.16
33	265103-9	P.H. SCREW M5X14, BGA452	$0.53
34	125273-5	WHEEL COVER ASS'Y, 9554NB	$12.60
35	224399-1	INNER FLANGE 45, 9554NB	$10.60
36	193465-4	LOCK NUT 5/8-45, 9005B REPLACES 224568-4	$12.60
37	266325-4	TAPPING SCREW 4X70, GA4030	$0.86
38	861243-7	NAME PLATE, 9554NB	$0.96
39	266007-8	TAPPING SCREW 3X10, 9557NB	$0.53
40	643760-7	BRUSH HOLDER, 9557NB	$4.16
41	195001-2	CARBON BRUSH CB325,9553NB	$4.71
43	650560-8	SWITCH DPX-2110-R, GA4030	$9.22
43	650621-4	SWITCH PS-10, 9554NB	$7.99
44	687123-7	STRAIN RELIEF, JV0600K	$0.75
45	266326-2	TAPPING SCREW PT 4X18, 5007MG	$0.53
47	682559-5	CORD GUARD 8, 6824	$2.51
47	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
48	664064-4	CORD (2X18X8 SJ), BO4556	$16.04
48	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
49	419566-3	SWITCH KNOB, GA4030	$0.75
50	154504-5	MOTOR HOUSING CPL.,9553NB	$7.02
51	643760-7	BRUSH HOLDER, 9557NB	$4.16
52	233121-5	COMP. SPRING 4, GA4030	$0.90
53	418796-3	SWITCH LEVER C, 9553NB	$0.97
54	418726-4	REAR COVER, 9553NB	$2.84
55	266326-2	TAPPING SCREW PT 4X18, 5007MG	$0.53
1001	153489-2	GRIP 36, 9557NB	$2.84
1002	782424-9	LOCK NUT WRENCH 28, BGA452	$8.40
1002	782422-3	LOCK NUT WRENCH 28, 9557PB	$8.40
