Makita 9524NB Grinder Parts

Makita 9524NB Grinder Parts Image

Makita 9524NB Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

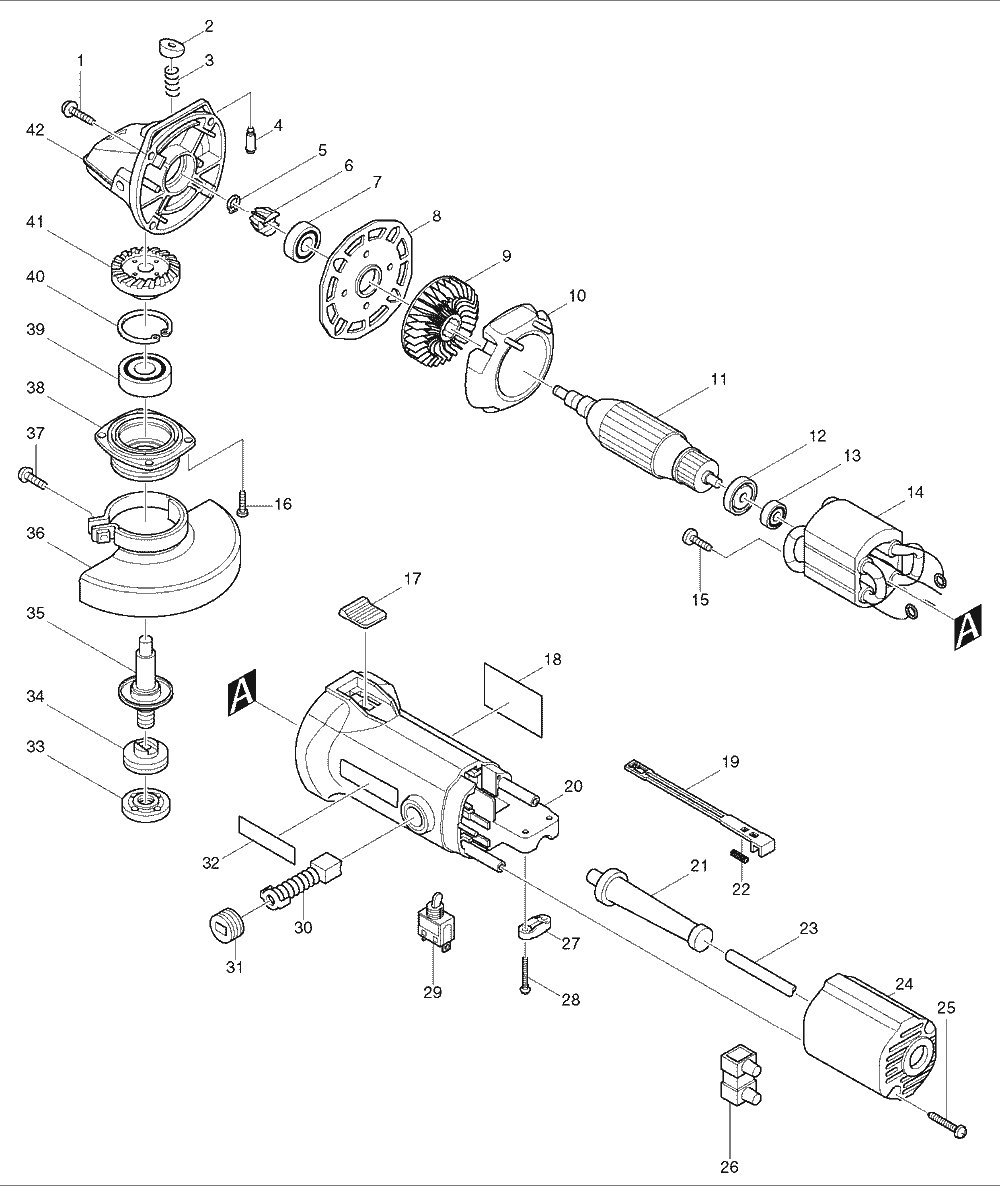

Makita 9524NB Grinder Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B $1.96
2 415491-6 PIN CAP, 9523NB $0.97
3 233072-2 COMPRESSION SPRING 8, 9523NB $0.86
4 256437-1 PIN 4, 9523NB $1.96
5 961002-0 RETAINING RING S-6, 6012HDW $0.53
6 226733-1 SPIRAL BEVEL GEAR 11,9524NB,T1 $10.21
6 226799-1 SPIRAL BEVEL GEAR 11, 9524NB $5.70
7 211062-5 B. BEARING 6000ZZ, LS1016L $10.98
8 285684-7 BEARING RETAINER 52, 9524NB $3.06
9 241890-4 FAN 57, 9524NB $4.49
10 415954-2 BAFFLE PLATE, 9524NB $3.06
11 517301-4 ARMATURE, 9524NB $39.88
12 681638-6 INSULATING WASHER, 9523NB $1.63
13 211012-0 BALL BEARING 606ZZ, HR2410 $15.27
14 521621-0 FIELD ASS'Y 115V, 9524NB $27.04
15 266007-8 TAPPING SCREW 3X10, 9557NB $0.53
16 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
17 415952-6 SWITCH KNOB, 9527NB $3.06
18 859963-5 NAME PLATE, 9524NB $2.51
19 415953-4 SWITCH LEVER, 9527NB-T1 $2.73
19 417352-6 SWITCH LEVER, 9523NB-T2 $1.52
20 153529-6 MOTOR HOUSING, 9523NBH $15.93
21 682502-4 CORD GUARD 8-85, HP2010N $2.51
21 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
22 233285-5 COMP. SPRING 4, 9527NB-T2 $0.86
22 233153-2 COMP. SPRING 4, 9527NB-T1 $0.75
24 415955-0 REAR COVER, 9527NB $7.46
25 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
26 654532-5 TERMINAL BLOCK, BO4556 $3.06
27 687063-9 STRAIN RELIEF, 4323K $1.26
28 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
29 651433-8 SWITCH, 9523NB $11.31
30 195008-8 CARBON BRUSH 408 SET, 3901 $8.12
31 643928-5 HOLDER CAP, 9523NB $1.63
32 819063-3 MAKITA LABEL, DA3010F $0.96
33 193465-4 LOCK NUT 5/8-45, 9005B REPLACES 224568-4 $12.60
34 224378-9 INNER FLANGE 45, 9005B $10.60
34 224361-6 INNER FLANGE 82, 9505BH $10.60
35 152538-2 SPINDLE COMPLETE, 9527PB,9528PB $13.18
36 165053-7 4-1/2 WHEEL COVER,9524NB $12.60
37 251391-4 P.H.SCREW M5X16,9523NB $1.96
38 316800-1 BEARING BOX, 9523NB $17.47
39 211129-9 BALL BEARING 6201DDW, GA4030 $13.07
39 211107-9 BALL BEARING 6201ZZ, 1912B $13.07
40 962151-6 RETAINING RING R-32, 9005B $1.48
41 226798-3 SPIRAL BEVEL GEAR 36,9524NB $5.70
41 226728-4 SPIRAL BEVEL GEAR 36,9524NB,T1 $12.63
42 159867-4 GEAR HOUSING COMPLETE, 9524NB $29.47
1001 153489-2 GRIP 36, 9557NB $2.84
1003 782412-6 LOCK NUT WRENCH 28, GA7911 $8.40
