Makita 9218SB Sander & Polisher Parts

Makita 9218SB Sander & Polisher Parts Image

Makita 9218SB Parts
7 inch 5.2 amps Disc Sander

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 9218SB
7 inch 5.2 amps Disc...
$198.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

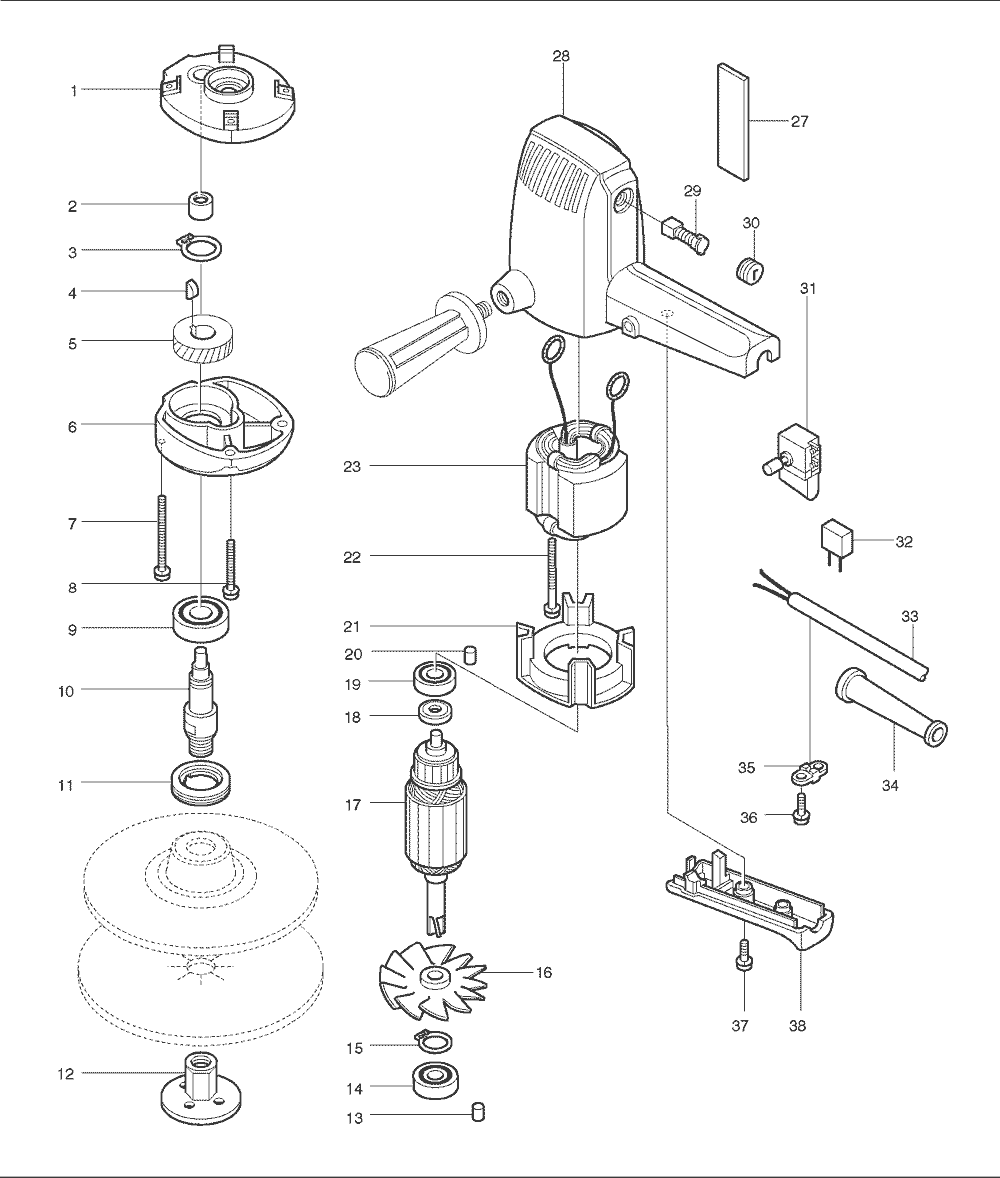

Makita 9218SB Sander & Polisher Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 156993-0 GEAR HOUSING COVER, 9201 $16.81
23 522222-7 FIELD, 9218SB $56.50
2 212004-2 N.BEARING 810,4200N $5.92
17 512402-3 ARMATURE, 9218SB $125.81
3 961055-9 RETAINING RING S-15, 5007F $1.19
1 156993-0 GEAR HOUSING COVER, 9201 $16.81
4 254001-2 WOODRUFF KEY 4, HM1810 $1.26
10 321957-5 SPINDLE, 9218SB $21.76
5 221273-4 H. GEAR, 9218SB $18.24
6 312368-5 GEAR HOUSING, 9218SB $25.83
7 911171-7 P.H. SCREW M4X45, 9218SB $1.19
8 911161-0 P.H. SCREW M4X35, 9218SB $0.86
9 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
10 321957-5 SPINDLE, 9218SB $21.76
11 285809-3 BEARING RETAINER 23-36, 5477NB $3.06
13 263002-9 RUBBER PIN 4, 5007NK $0.86
14 211101-1 BALL BEARING 6001LLB,9218PB $13.07
15 961052-5 RETAINING RING S-12, 9218PBL $0.86
16 241044-3 FAN 68, 9218SB $4.49
17 512402-3 ARMATURE, 9218SB $125.81
18 213002-9 DUST SEAL 8, 6013BR $1.63
19 211033-2 B. BEARING 608LB, 5091D $8.78
20 263002-9 RUBBER PIN 4, 5007NK $0.86
21 411241-7 BAFFLE PLATE, 9218SB $4.49
22 911681-4 P.H. SCREW M5X60, 9218PBL $1.96
23 522222-7 FIELD, 9218SB $56.50
27 811828-9 NAME PLATE, 9218SB $2.51
28 156105-5 MOTOR HOUSING, 9218PB(T1) $40.08
28 159596-9 MOTOR HOUSING, 9218PBL $45.59
29 194982-7 CARBON BRUSH SET CB-124 (2/PK), 9045B $5.92
30 643600-9 BRUSH CAP 6-10, 9005B $1.63
31 651232-8 SWITCH, 9218SB $10.43
33 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
33 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
34 682502-4 CORD GUARD 8-85, HP2010N $2.51
34 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
35 687002-9 STRAIN RELIEF, 9217SPC $0.97
36 911133-5 P.H. SCREW M4X18, N9501B $0.86
37 911138-5 P.H. SCREW M4X20, 9218SB $0.86
38 411239-4 HANDLE COVER, 9218PB(T1) $4.71
38 414994-7 HANDLE COVER, 9218PBL $7.46
39 819063-3 MAKITA LABEL, DA3010F $0.96
403 781008-0 WRENCH 17, 9217SPC $4.40
404 782412-6 LOCK NUT WRENCH 28, GA7911 $8.40
900 810146-2 CAUTION LABEL, 6906 $1.17
