Makita 9218PBL Sander & Polisher Parts

Makita 9218PBL Sander & Polisher Parts Image

Makita 9218PBL Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

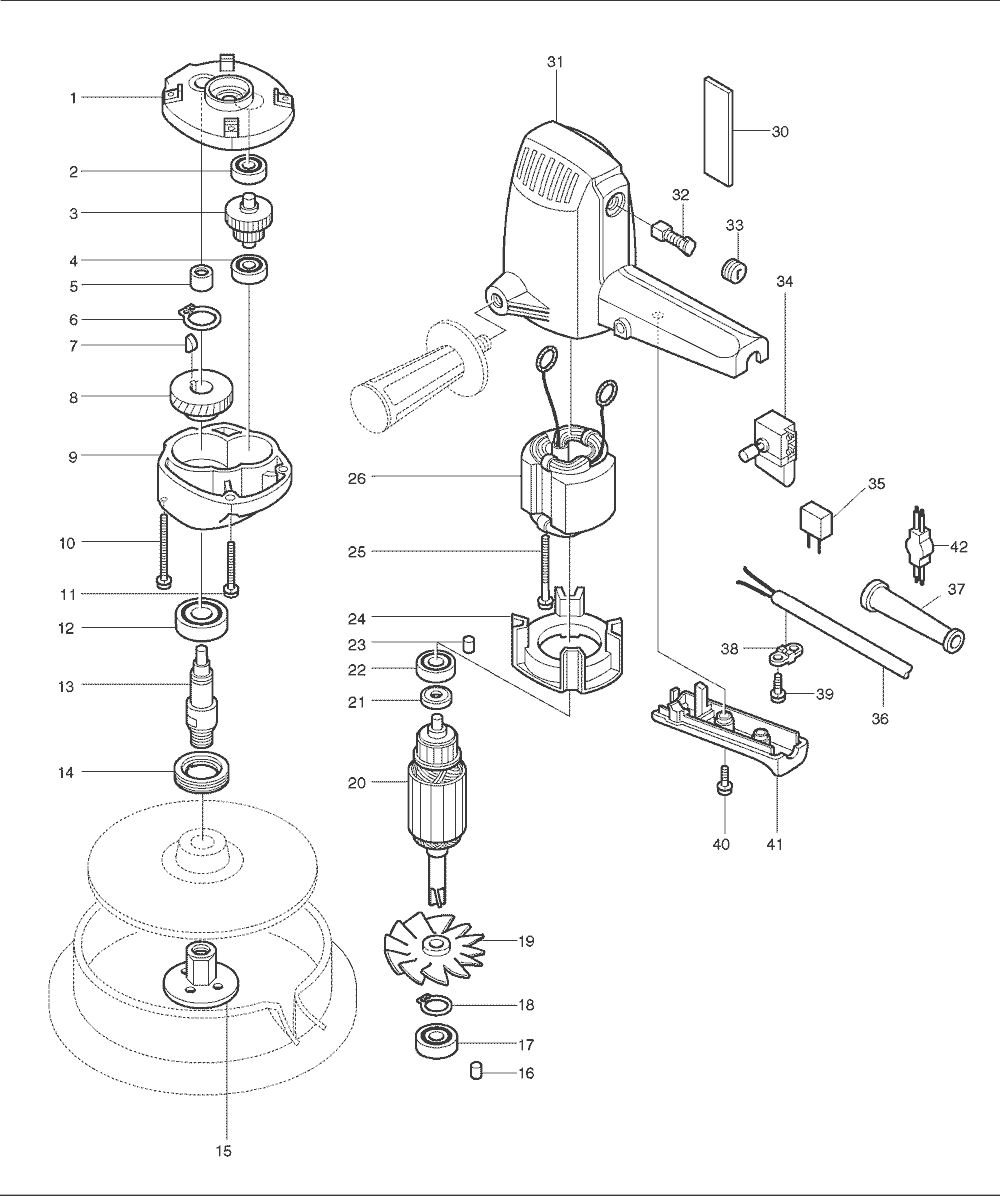

Makita 9218PBL Sander & Polisher Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 156994-8 GEAR HOUSING COVER, 9218PB $24.29
00 152492-0 GRIP 36 COMP. 9005B-T2 $4.49
2 211033-2 B. BEARING 608LB, 5091D $8.78
34 651225-5 SWITCH,JN3200 $21.76
3 226112-3 GEAR CPL., 9218PBL $37.84
4 211033-2 B. BEARING 608LB, 5091D $8.78
5 212052-1 N. BEARING 1010, HK1810 $7.46
6 961055-9 RETAINING RING S-15, 5007F $1.19
7 254001-2 WOODRUFF KEY 4, HM1810 $1.26
8 226401-6 HELICAL GEAR 46, 9218PBL $27.84
9 312671-4 GEAR HOUSING, 9218PB $37.84
10 911186-4 P.H. SCREW M4X60, 9218PBL $1.19
11 911166-0 P.H. SCREW M4X40, 9218PBL $1.48
12 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
13 322050-8 SPINDLE, 9218PB $24.62
14 285809-3 BEARING RETAINER 23-36, 5477NB $3.06
16 263002-9 RUBBER PIN 4, 5007NK $0.86
17 211131-2 BALL BEARING 6001DDW,BO4556 $13.07
18 961052-5 RETAINING RING S-12, 9218PBL $0.86
19 241055-8 FAN 68, 9218PBL $8.01
20 516106-9 ARMATURE ASS'Y 115V, 9218PBL $110.10
21 213002-9 DUST SEAL 8, 6013BR $1.63
22 211033-2 B. BEARING 608LB, 5091D $8.78
23 263002-9 RUBBER PIN 4, 5007NK $0.86
24 411241-7 BAFFLE PLATE, 9218SB $4.49
25 911681-4 P.H. SCREW M5X60, 9218PBL $1.96
26 594111-6 FIELD ASS'Y 115V, 9218PBL $48.04
30 856940-8 NAME PLATE, 9218PBL $1.36
31 156105-5 MOTOR HOUSING, 9218PB(T1) $40.08
31 159596-9 MOTOR HOUSING, 9218PBL $45.59
32 194982-7 CARBON BRUSH SET CB-124 (2/PK), 9045B $5.92
33 643600-9 BRUSH CAP 6-10, 9005B $1.63
34 651225-5 SWITCH,JN3200 $21.76
36 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
36 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
37 682502-4 CORD GUARD 8-85, HP2010N $2.51
37 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
38 687002-9 STRAIN RELIEF, 9217SPC $0.97
39 911133-5 P.H. SCREW M4X18, N9501B $0.86
40 911138-5 P.H. SCREW M4X20, 9218SB $0.86
41 411239-4 HANDLE COVER, 9218PB(T1) $4.71
41 414994-7 HANDLE COVER, 9218PBL $7.46
42 819063-3 MAKITA LABEL, DA3010F $0.96
1004 781008-0 WRENCH 17, 9217SPC $4.40
1005 782412-6 LOCK NUT WRENCH 28, GA7911 $8.40
