Makita 9217SPC Sander & Polisher Parts

Makita 9217SPC Sander & Polisher Parts Image

Makita 9217SPC Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

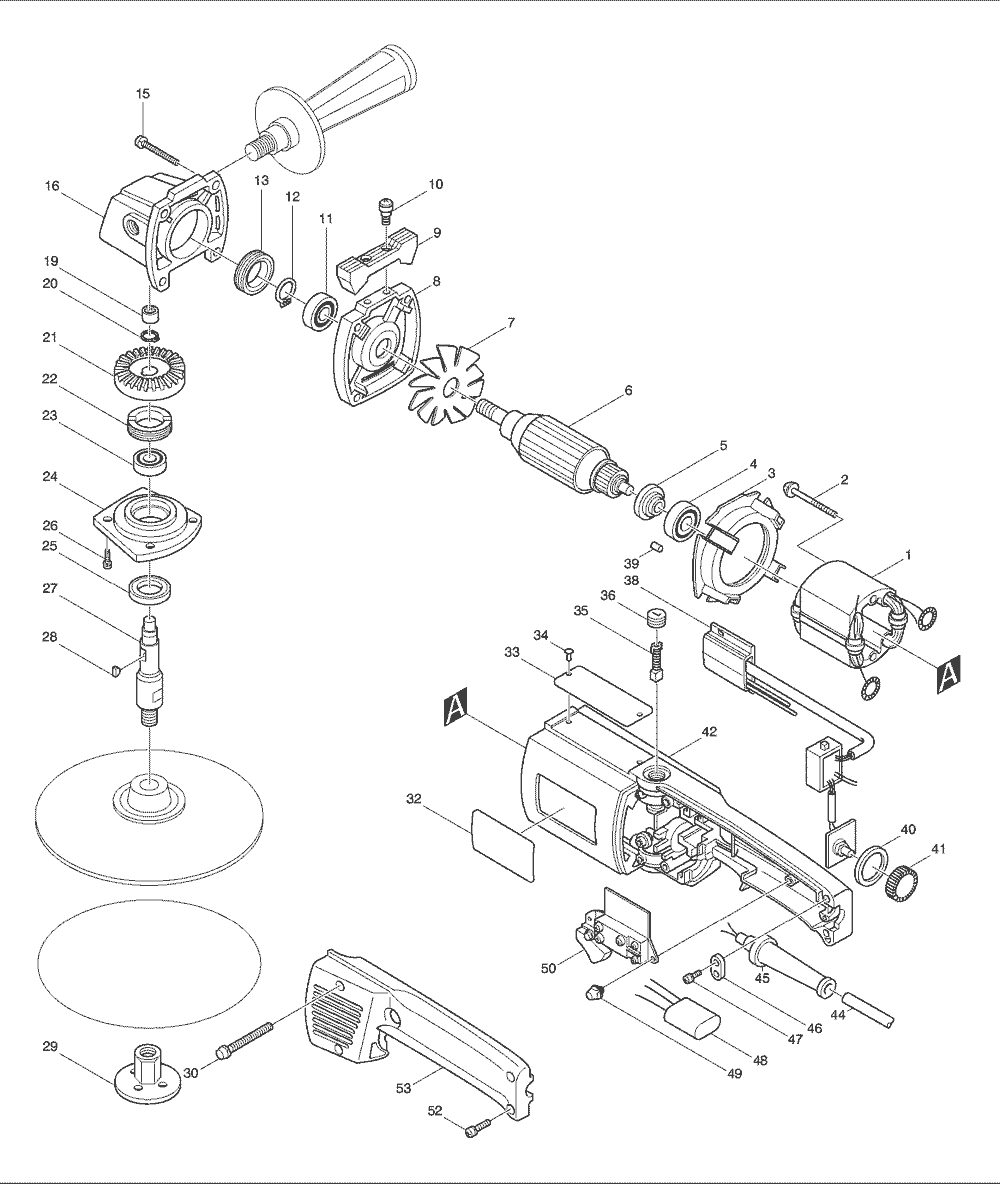

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	594216-2	FIELD 115V, 9217SPC	$42.33
2	911691-1	P.H. SCREW M5X70, 9217SPC	$3.28
3	411263-7	BAFFLE PLATE, 9217SPC	$3.06
4	211033-2	B. BEARING 608LB, 5091D	$8.78
5	681621-3	INS. WASHER, 9217SPC	$11.75
6	516206-5	AMATURE ASS'Y, 9217SPC	$125.81
7	241080-9	FAN 68, 9217SPC	$4.49
8	315733-7	GEAR HOUSING COVER, 9217SPC	$26.72
9	421275-2	TOOL REST, 9217SPC	$4.49
10	251306-1	P.H. SCREW M5, 9217SPC	$1.19
11	211201-7	B. BEARING 6002LLB, 6510LVR	$13.07
12	961055-9	RETAINING RING S-15, 5007F	$1.19
13	285816-6	BEARING RETAINER 19-33, 9217SPC	$3.06
15	911261-6	P.H. SCREW M5X40, 9900B	$1.19
16	133324-0	GEAR HOUSING ASSY, 9207SPB-T2	$33.66
19	212005-0	N. BEARING 810, HR2410	$5.92
20	961052-5	RETAINING RING S-12, 9218PBL	$0.86
21	221365-9	SPIRAL B. GEAR 44, 9217SPC	$37.84
22	285805-1	BEARING RETAINER 22-34, 9217SPC	$3.06
23	211106-1	B. BEARING 6201LLB, 9227C	$13.07
24	312795-6	HOUSING W/O BEARING, 9217SPC	$16.04
25	213301-9	DUST SEAL 20, 9217SPC	$3.06
26	911121-2	P.H. SCREW M4X14, 9217SPC	$0.53
27	325432-3	SPINDLE, 9217SPC	$23.19
28	254002-0	WOODRUFF KEY 3, 9005B	$0.97
30	911173-3	P.H. SCREW M4X45, 6906	$1.19
32	818631-9	CAUTION LABEL, 9217SPC	$1.21
33	857588-9	NAME PLATE, 9217SPC	$2.74
34	953106-2	RIVET 0-5, HM1500	$0.49
35	194982-7	CARBON BRUSH SET CB-124 (2/PK), 9045B	$5.92
36	643600-9	BRUSH CAP 6-10, 9005B	$1.63
38	631179-2	CONTROLLER, 9217SPC	$89.40
39	263014-2	RUBBER PIN 4, 9217SPC	$1.19
40	213261-5	O RING 17, AN451	$3.50
41	271411-8	KNOB 28, 9217SPC	$3.06
42	159739-3	MOTOR HOUSING, 9217SPC	$46.92
44	664064-4	CORD (2X18X8 SJ), BO4556	$16.04
44	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
45	682502-4	CORD GUARD 8-85, HP2010N	$2.51
45	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
46	687002-9	STRAIN RELIEF, 9217SPC	$0.97
47	911133-5	P.H. SCREW M4X18, N9501B	$0.86
49	911103-4	P.H. SCREW M4X6, 9217SPC	$0.86
50	651018-0	SWITCH, 1806B	$22.86
52	911153-9	P.H. SCREW M4X28, JR3000V	$0.86
53	155625-6	HANDLE COVER, 9217SPC	$11.75
1001	273477-4	GRIP 37,9217SPC	$8.78
1002	781008-0	WRENCH 17, 9217SPC	$4.40
1003	782412-6	LOCK NUT WRENCH 28, GA7911	$8.40
