Makita 9207SPB Sander & Polisher Parts

Makita 9207SPB Sander & Polisher Parts Image

Makita 9207SPB Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

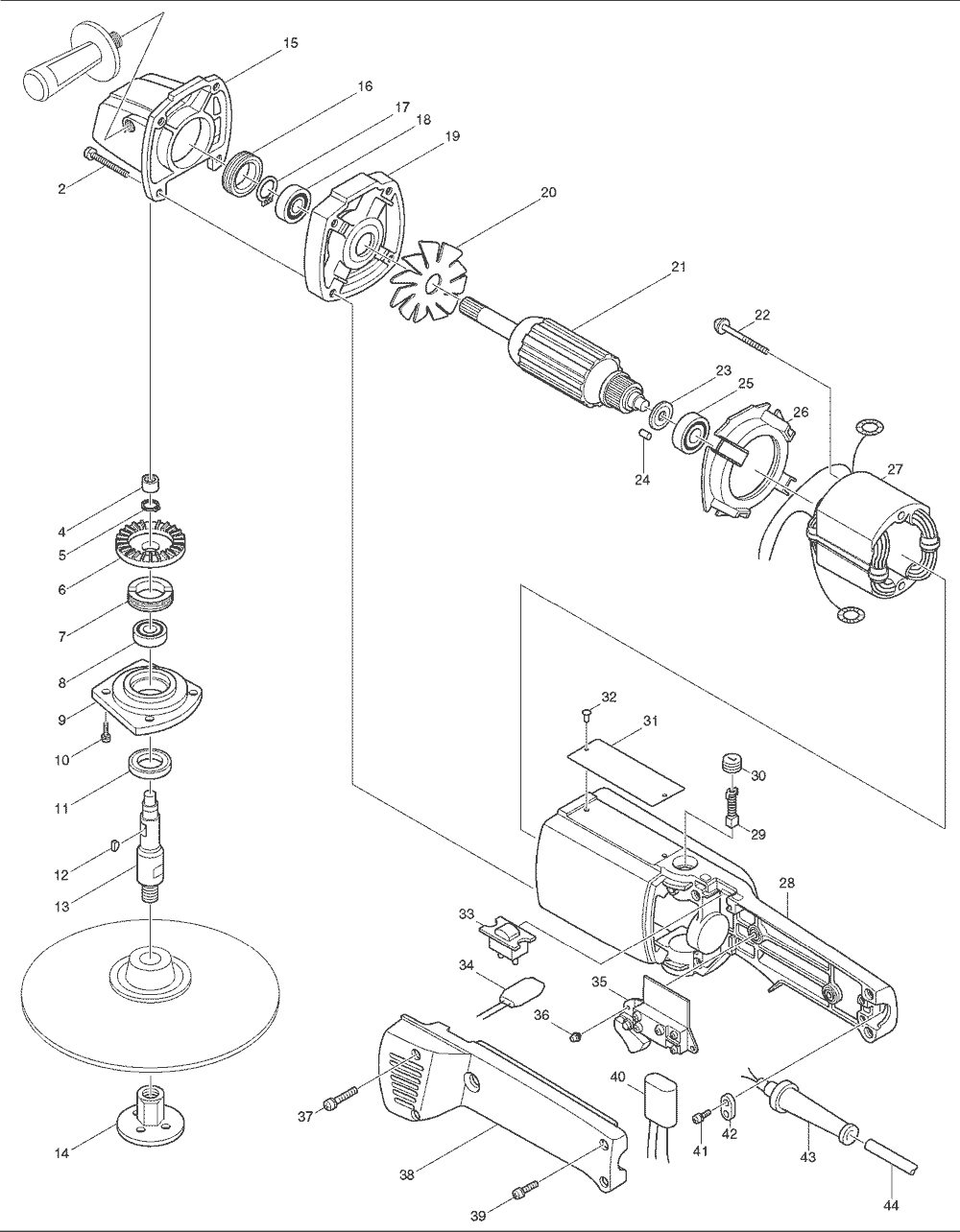

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
35	651018-0	SWITCH, 1806B	$22.86
27	522332-0	FIELD ASSY 115V, 9207SPB-T2	$62.10
2	911261-6	P.H. SCREW M5X40, 9900B	$1.19
21	512547-7	ARMATURE ASSY 115V, 9207SPB-T2	$122.13
4	212005-0	N. BEARING 810, HR2410	$5.92
5	961052-5	RETAINING RING S-12, 9218PBL	$0.86
6	221312-0	H. GEAR, 9207SPB (TYPE 3)	$37.84
7	285805-1	BEARING RETAINER 22-34, 9217SPC	$3.06
8	211106-1	B. BEARING 6201LLB, 9227C	$13.07
9	312795-6	HOUSING W/O BEARING, 9217SPC	$16.04
10	911121-2	P.H. SCREW M4X14, 9217SPC	$0.53
11	213301-9	DUST SEAL 20, 9217SPC	$3.06
12	254002-0	WOODRUFF KEY 3, 9005B	$0.97
13	325432-3	SPINDLE, 9217SPC	$23.19
15	133324-0	GEAR HOUSING ASSY, 9207SPB-T2	$33.66
16	285816-6	BEARING RETAINER 19-33, 9217SPC	$3.06
17	961055-9	RETAINING RING S-15, 5007F	$1.19
18	211201-7	B. BEARING 6002LLB, 6510LVR	$13.07
19	312722-3	GEAR HOUSING COVER, 9207SPB	$25.83
20	241080-9	FAN 68, 9217SPC	$4.49
21	512547-7	ARMATURE ASSY 115V, 9207SPB-T2	$122.13
22	911295-9	P.H. SCREW M5X70 5014NB	$1.85
23	681613-2	INS. WASHER, JN3200	$1.63
24	263014-2	RUBBER PIN 4, 9217SPC	$1.19
25	211033-2	B. BEARING 608LB, 5091D	$8.78
26	411263-7	BAFFLE PLATE, 9217SPC	$3.06
27	522332-0	FIELD ASSY 115V, 9207SPB-T2	$62.10
28	156125-9	MOTOR HOUSING, 9207SPB	$44.26
29	194982-7	CARBON BRUSH SET CB-124 (2/PK), 9045B	$5.92
30	643600-9	BRUSH CAP 6-10, 9005B	$1.63
31	811870-0	NAME PLATE, 9207SPB	$2.74
32	953106-2	RIVET 0-5, HM1500	$0.49
33	651606-3	SWITCH, GE0600	$13.84
34	631010-2	DIODE, JR3000	$23.19
35	651018-0	SWITCH, 1806B	$22.86
36	911103-4	P.H. SCREW M4X6, 9217SPC	$0.86
37	911168-6	P.H. SCREW M4X40, 6905B	$0.86
38	411262-9	HANDLE COVER, 9207SPB	$10.32
39	911148-2	P.H. SCREW M4X25, 5057KB	$0.86
41	911133-5	P.H. SCREW M4X18, N9501B	$0.86
42	687001-1	STRAIN RELIEF, 6013BR	$0.97
43	682502-4	CORD GUARD 8-85, HP2010N	$2.51
43	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
403	273477-4	GRIP 37,9217SPC	$8.78
404	782412-6	LOCK NUT WRENCH 28, GA7911	$8.40
405	781008-0	WRENCH 17, 9217SPC	$4.40
