Makita 9049 Grinder Parts

Makita 9049 Grinder Parts Image

Makita 9049 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 9049
Medium Gun Bag
$52.99
Tool Diagram    (Click image to Zoom in) View larger Image

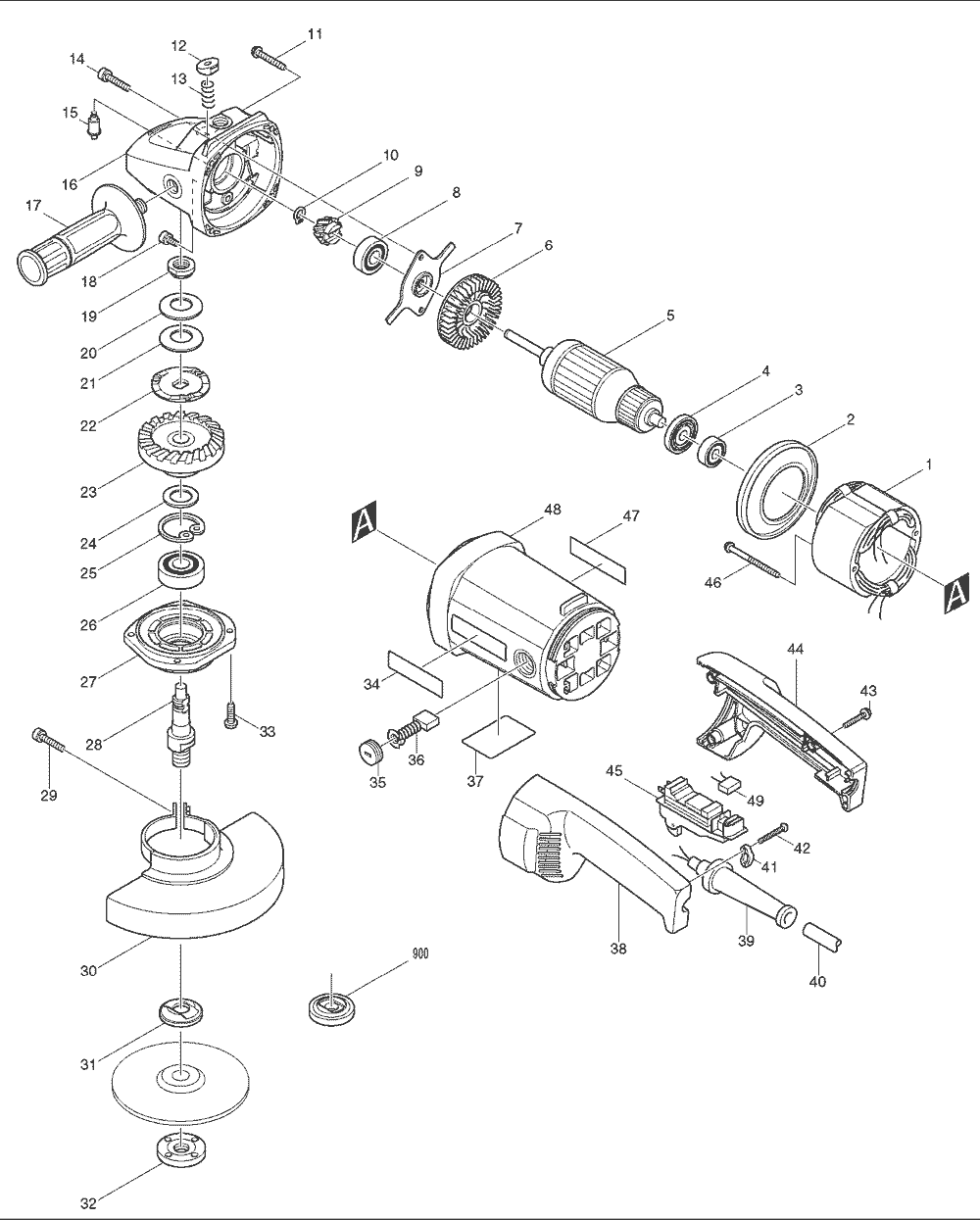

Makita 9049 Grinder Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 526046-3 FIELD ASSEMBLY 115V, 9040L $82.80
2 416131-9 BAFFLE PLATE, 4114 $1.63
4 681630-2 INSULATION WASHER 10, GA7021 $3.72
5 516706-5 ARMATURE ASSEMBLY 115V, 9040L $127.56
6 241908-1 FAN 80, HM1242C $4.16
7 285832-8 BEARING RETAINER 60, 9040L $4.49
8 211132-0 BALL BEARING 6301DDW, 9040L $17.47
9 226740-4 SPIRAL VEVEL GEAR 12, 9040L $16.81
10 961005-4 RETAINING RING S-9, 6832 $0.86
11 266012-5 TAPPING SCREW 5X35, HR160DH $1.48
12 416132-7 PIN CAP, 9040L $1.26
13 233031-6 COMPRESSION SPRING 12, 9040L $0.86
14 266129-4 H.S.H.BOLT M5X25, 9040L $1.96
15 256445-2 PIN 6, 9040L $5.37
16 151859-9 MOTOR HOUSING, 9040L $37.84
16 159907-8 GEAR HOUSING COMPLETE, 9040L,T1 $37.23
17 152539-0 GRIP 36 COMPLETE, 9040L $5.92
18 265976-0 H.S.H. BOLT M5X10,9040L $3.61
19 252425-6 NUT M15-23, 9040L $7.57
20 232163-6 CUP SPRING 20, 9040L $5.37
21 232163-6 CUP SPRING 20, 9040L $5.37
22 267725-1 LOCK WASHER, 9040L $12.19
23 226739-9 SPIRAL BEVEL GEAR 53, 9040L $36.51
24 267167-9 FLAT WASHER 15, 9040L $2.18
25 962157-4 RETAINING RING R-40, GA7911 $1.96
26 211278-2 BALL BEARING 6203DDW, 5077B (T2) $10.98
27 316855-6 HOUSING W/O BEARING, 9040L $11.75
28 322903-1 SPINDLE, 9040L $21.76
29 265050-4 PAN HEAD SCREW M8X25, 9046 $1.74
30 164879-4 9 WHEEL COVER, 9069 $31.20
31 224317-9 INNER FLANGE 89, GA7021 $16.60
32 193465-4 LOCK NUT 5/8-45, 9005B REPLACES 224568-4 $12.60
33 911226-8 P.H. SCREW M5X18, GA7911 $0.86
33 266027-2 TAPPING SCREW M5X16, 5402NA $0.86
33 911230-7 P.H. SCREW, DA4031 $1.19
34 819064-1 MAKITA MARK, 5402NA $1.26
35 643700-5 BRUSH HOLDER CAP, GA7021 $1.63
36 194992-4 A.C.CARBON BR.SET,CB-204,HM1800 $19.45
37 858386-4 NAME PLATE, 9049 $1.12
38 182842-5 HANDLE SET, 9040L $16.04
39 682540-6 CORD GUARD 9.3-90,9040L $4.16
40 664463-0 CORD (2X14X8 SJ), 5007NK $21.76
40 EC142 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 14... $16.19
41 687052-4 STRAIN RELIEF, HM1500B $1.26
42 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
44 182842-5 HANDLE SET, 9040L $16.04
45 650101-0 SWITCH, 9067L $27.37
46 266029-8 T. SCREW FLANGE PT 5X65,JR3020 $1.96
47 819064-1 MAKITA MARK, 5402NA $1.26
48 159906-0 MOTOR HOUSING COMPLETE, 9040L $45.59
50 442129-0 GASKET, 9049 $1.63
1001 782412-6 LOCK NUT WRENCH 28, GA7911 $8.40
2001 125066-0 TORQUE LIMITER ASS'Y $64.10
