Makita 9045B Sander & Polisher Parts

Makita 9045B Sander & Polisher Parts Image

Makita 9045B Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

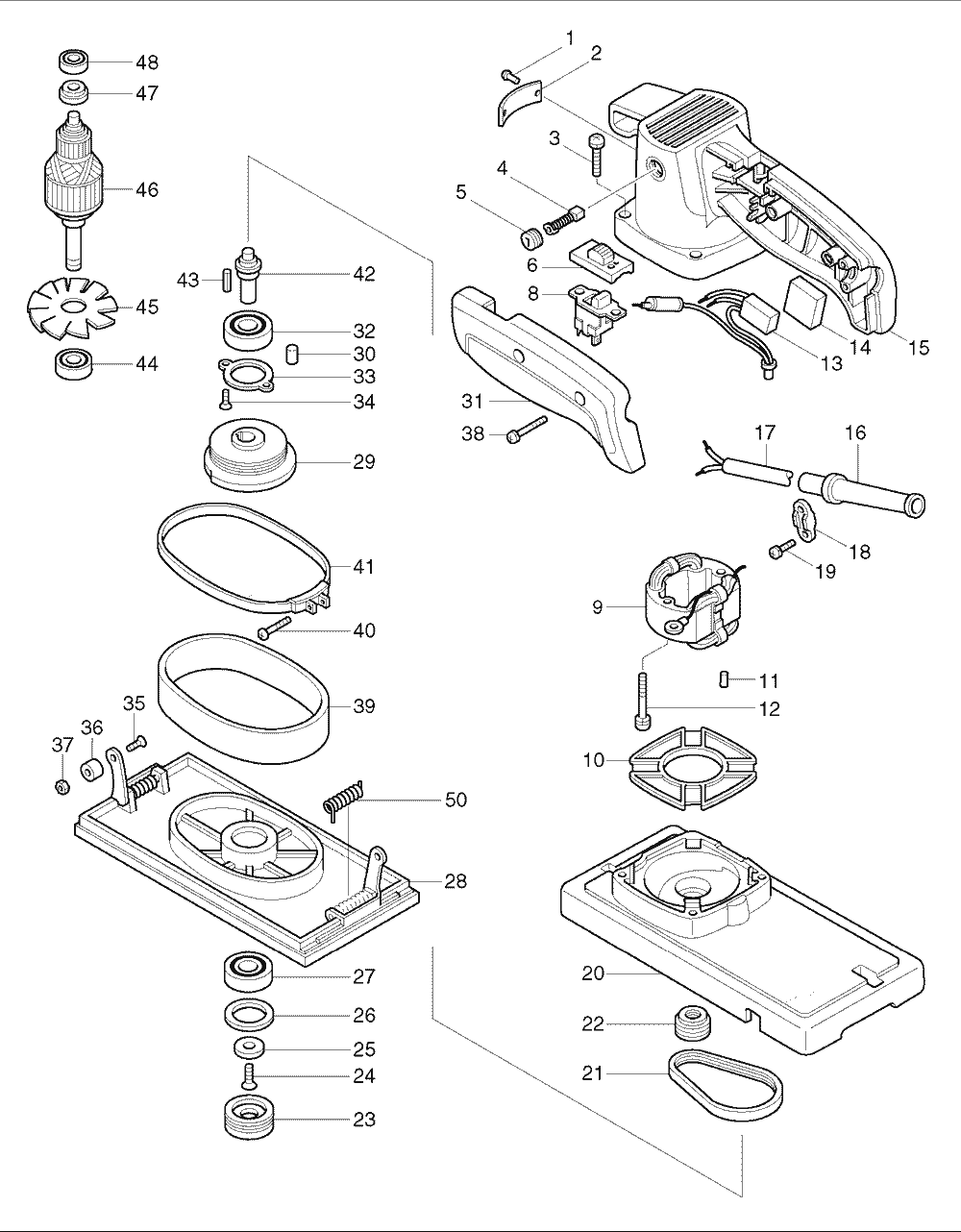

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	953106-2	RIVET 0-5, HM1500	$0.49
46	512696-0	ARMATURE, 9045B	$100.30
2	815277-2	NAME PLATE, 9045B	$2.40
2	862429-6	NAME PLATE, 9045B	$1.12
4	191945-4	CARBON BRUSH SET CB-124 (2/PK), 9045B	$8.99
4	K24	Carbon Brush Set Makita (CB-124), 191945-4, 6431...	$8.50
00	K25	Carbon Brush Set Replaces Makita (CB-408), 19193...	$8.50
3	911258-5	P.H. SCREW M5X35, 9045N	$1.19
00	652153-7	SLIDE COVER, 9045N (TYPE 2)	$3.61
4	194982-7	CARBON BRUSH SET CB-124 (2/PK), 9045B	$5.92
27	211275-8	BALL BEARING 6003DDW, 5007NK	$19.56
5	643600-9	BRUSH CAP 6-10, 9005B	$1.63
6	652191-9	SLIDE COVER, JR180D	$4.16
8	651656-8	SWITCH, 9045N,T3	$11.53
9	522476-6	FIELD, 9045N,T2	$106.12
10	411628-3	BAFFLE PLATE, 9045N	$3.06
11	263002-9	RUBBER PIN 4, 5007NK	$0.86
12	911265-8	P.H. SCREW M5X40, HK1810	$1.48
15	154989-5	MOTOR HOUSING, 9045N	$26.38
15	156537-6	MOTOR HOUSING, 9045N	$32.53
16	682502-4	CORD GUARD 8-85, HP2010N	$2.51
16	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
18	687001-1	STRAIN RELIEF, 6013BR	$0.97
19	911133-5	P.H. SCREW M4X18, N9501B	$0.86
20	159533-3	FRAME, 9045B T2	$52.50
21	225049-1	POLY V-BELT 3-250, 9045N	$20.33
22	222072-7	V-PULLEY 3-26, 9045N	$5.92
23	285818-2	BEARING RETAINER, 9045N (T2)	$3.06
24	912212-2	C.S.H. SCREW M5X12, 5007NK	$0.53
25	253930-6	F. WASHER 7, 9045N	$1.63
26	253792-2	F. WASHER 26, 4304	$1.63
27	211275-8	BALL BEARING 6003DDW, 5007NK	$19.56
28	134645-3	BASE ASSEMBLY, 9045N (T2)	$50.89
29	315095-3	BALANCE WEIGHT, 9045N	$20.33
30	263005-3	RUBBER PIN 6, BHP452	$0.86
31	411617-8	HANDLE COVER, 9045N	$5.92
32	211201-7	B. BEARING 6002LLB, 6510LVR	$13.07
33	285615-6	BEARING RETAINER, 9045B	$1.63
34	912117-6	C.S.H. SCREW M4X12, BO4556	$0.53
35	912112-6	.C.S.H. SCREW M4X10, 3700B	$0.53
36	411625-9	PUSH BUTTON, 9045N	$1.63
38	911158-9	P.H. SCREW M4X30, 9045B	$0.86
39	421155-2	RUBBER SLEEVE, 9045N	$8.78
40	911146-6	P.H. SCREW M4X25, 4200H	$0.53
41	164496-0	STEEL BAND, 9045N	$7.46
42	321114-5	SPINDLE, 9045N	$21.76
43	254204-8	KEY 4, 9045B	$1.26
44	211066-7	B. BEARING 6200LLB, BO4552	$10.98
45	241097-2	FAN 75, 9045B	$4.49
46	512696-0	ARMATURE, 9045B	$100.30
47	681613-2	INS. WASHER, JN3200	$1.63
48	211033-2	B. BEARING 608LB, 5091D	$8.78
50	231534-4	TOR. SPRING, 9045B	$2.07
400	794213-0	ABR. PAPER #150 (10/PKG) 9045B	$6.20
900	819063-3	MAKITA LABEL, DA3010F	$0.96
