Makita 9032 Sander & Polisher Parts

Makita 9032 Sander & Polisher Parts Image

Makita 9032 Parts
3/8 Inch Belt Sander

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 9032
3/8 Inch Belt Sander
$248.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

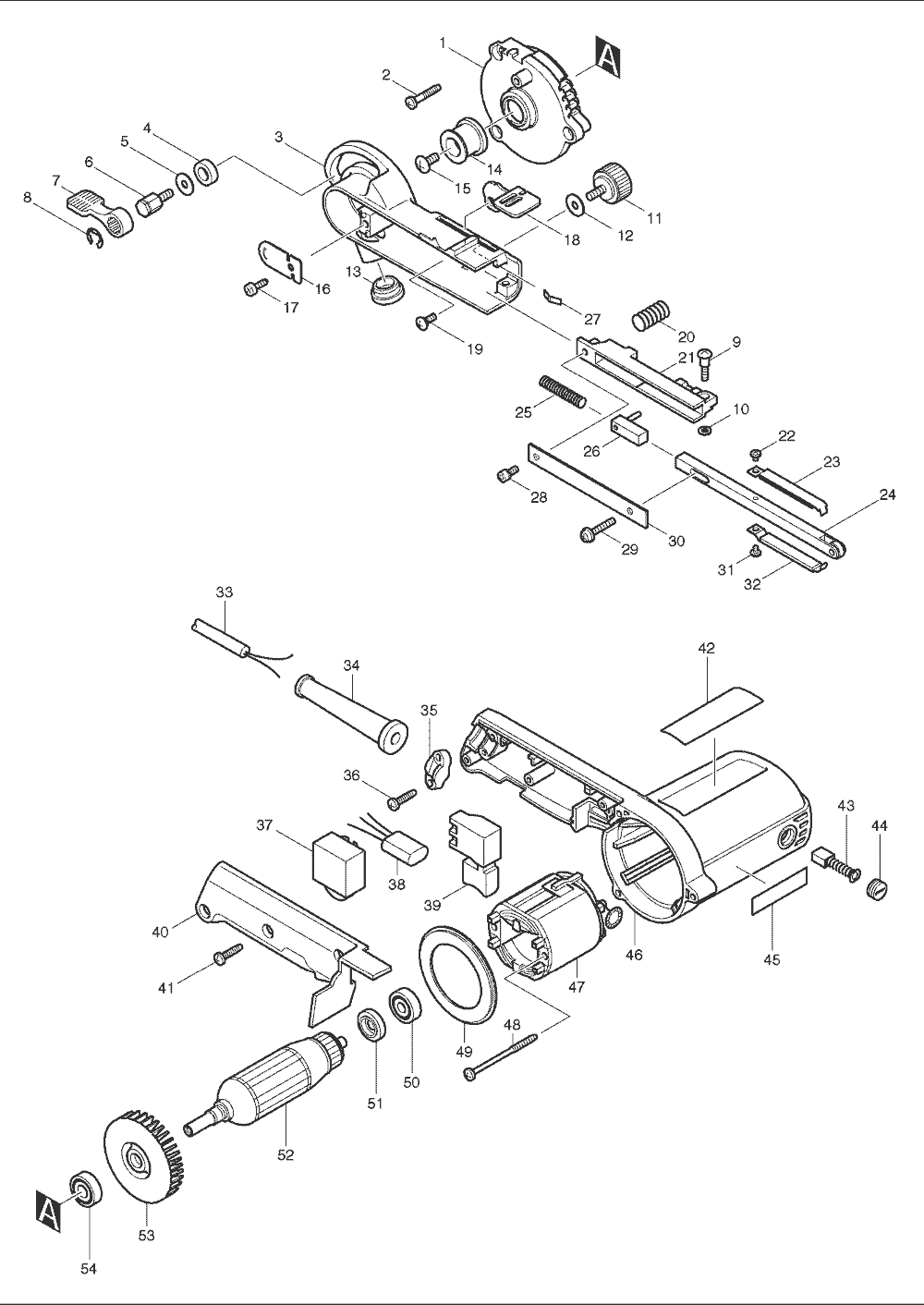

Makita 9032 Sander & Polisher Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 317523-4 BRACKET, 9032 $18.57
3 153308-2 PULLEY COVER CPL., 9032 $25.06
4 257249-5 RING 9, 9032 $2.84
5 253807-5 F. WASHER 5, 6012HDW $1.01
6 265494-8 HEX. BOLT M5X13, 9032 $3.28
7 272229-0 LEVER 40, BCS550 $5.92
8 961014-3 STOP RING E-8, 3901 $0.86
9 265090-2 P.H. SCREW M4X20, 9032 $1.74
10 941052-1 F. WASHER 4, 9218SB $0.75
11 265751-4 THUMB SCREW M5X13, 9032 $1.74
12 253807-5 F. WASHER 5, 6012HDW $1.01
13 421198-4 PLUG, 4190DW $3.06
14 317522-6 DRIVING ROLLER, 9032 $8.01
15 265092-8 TRUSS HEAD SCREW M5X12, 9032 $1.19
16 345196-3 SAFETY COVER, 9032 $2.84
17 266026-4 TAPPING SCREW 4X12,5477NB $0.86
18 345197-1 CAM LEVER, 9032 $4.16
19 265028-7 P.H. SCREW M4X11, 9032 $1.74
20 233333-0 COMPRESSION SPRING 10, 9032 $1.96
21 317525-0 ARM HOLDER, 9032 $23.74
22 265040-7 .P.H. SCREW M3X4, 9032 $1.19
23 153314-7 .SHOE 9 CPL., 9032 $4.16
24 153310-5 ARM 9 CPL., 9032 $23.74
25 233332-2 COMPRESSION SPRING 6, 9032 $1.63
26 153312-1 ARM TENSIONER CPL., 9032 $4.16
27 232185-6 LEAF SPRING, 1050DWA $4.16
28 922111-0 H.S.H. BOLT M4X10, LS1011 $1.34
29 911138-5 P.H. SCREW M4X20, 9218SB $0.86
30 345195-5 ARM COVER, 9032 $2.84
31 265040-7 .P.H. SCREW M3X4, 9032 $1.19
32 153314-7 .SHOE 9 CPL., 9032 $4.16
34 682502-4 CORD GUARD 8-85, HP2010N $2.51
34 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
35 687063-9 STRAIN RELIEF, 4323K $1.26
36 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
37 631676-8 CONTROLLER, 9031 $18.35
39 651263-7 SWITCH, 9031 $13.84
40 415635-8 HANDLE COVER, 9031 $8.78
41 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
42 853483-1 NAME PLATE, 9032 $1.12
43 195008-8 CARBON BRUSH 408 SET, 3901 $8.12
44 643550-8 BRUSH CAP , 9031 $1.63
45 819063-3 MAKITA LABEL, DA3010F $0.96
46 159747-4 MOTOR HOUSING COMPLETE,9031 $32.23
47 593496-7 FIELD ASS'Y 115V, 9032 $26.49
49 415634-0 BAFFLE PLATE, 9031 $3.06
50 210023-2 BALL BEARING 627DDW, 9910 $6.69
52 517386-0 ARMATURE ASS'Y 115V, 9032 $56.50
53 241884-9 FAN 60, TW0350 $4.16
54 210005-4 BALL BEARING 608DDW, 9031 $13.07
1001 A-34469 3/8X21 ABRASIVE BELT,80GRIT 10/PK, 9032 $15.60
5001 810134-9 CAUTION LABEL, 3709 $0.93
