Makita 9005B Grinder Parts

Makita 9005B Grinder Parts Image

Makita 9005B Parts
5 Inch, AC/DC, 9 amps Angle Grinder

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 9005B
5 Inch, AC/DC, 9 amp...
$160.99
Tool Diagram    (Click image to Zoom in) View larger Image
Makita 9005B Grinder Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B $1.96
40 651128-3 SWITCH, 9005B $28.05
1 911241-2 P.H. SCREW M5X25, 9005B $0.86
2 341680-6 TOOL REST, 9005B,T1 $4.49
3 159710-7 GEAR HOUSING,9005B,T2 $36.51
00 817518-2 CAUTION LABEL, 9005B $0.71
12 516091-6 ARMATURE ASSEMBLY,9005B $84.60
3 343312-1 CUP (GEAR HOUSING), 9005B $1.74
400 152492-0 GRIP 36 COMP. 9005B-T2 $4.49
7 181737-9 BEVEL GEAR SET,9005B $54.90
00 253140-5 F. WASHER 8, 9005B $1.34
8 211061-7 B. BEARING 6000LLB, 6222DWE $10.98
8 211088-7 BALL BEARING 6000DDW, 9005B $13.07
11 241517-6 FAN 70, 9005B $14.61
9 341681-4 PLATE, 9005B $4.49
11 241517-6 FAN 70, 9005B $14.61
10 254002-0 WOODRUFF KEY 3, 9005B $0.97
7 181737-9 BEVEL GEAR SET,9005B $54.90
7 181737-9 BEVEL GEAR SET,9005B $54.90
11 241517-6 FAN 70, 9005B $14.61
12 516091-6 ARMATURE ASSEMBLY,9005B $84.60
13 681613-2 INS. WASHER, JN3200 $1.63
14 211033-2 B. BEARING 608LB, 5091D $8.78
14 210005-4 BALL BEARING 608DDW, 9031 $13.07
16 687010-0 BAND, 9005B $0.46
17 263014-2 RUBBER PIN 4, 9217SPC $1.19
18 911290-9 P.H. SCREW M5X65, GA7911 $1.96
18 266029-8 T. SCREW FLANGE PT 5X65,JR3020 $1.96
19 263002-9 RUBBER PIN 4, 5007NK $0.86
20 961052-5 RETAINING RING S-12, 9218PBL $0.86
21 181737-9 BEVEL GEAR SET,9005B $54.90
22 962151-6 RETAINING RING R-32, 9005B $1.48
23 211129-9 BALL BEARING 6201DDW, GA4030 $13.07
23 211106-1 B. BEARING 6201LLB, 9227C $13.07
24 267126-3 FLAT WASHER 22, GD0601 $2.18
25 443051-4 .FELT RING 20, 9005B $0.97
26 254002-0 WOODRUFF KEY 3, 9005B $0.97
27 321336-7 SPINDLE, 9005B $14.61
28 251259-4 P.H. SCREW M5X16, 9505BH $1.48
30 315282-4 HOUSING W/O BEARING, 9005B $13.18
31 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
31 911121-2 P.H. SCREW M4X14, 9217SPC $0.53
31 266148-0 H.S.H. BOLT M4X14, 9005B $1.96
32 135040-0 WHEEL COVER ASSEMBLY, 9005B $16.60
33 224378-9 INNER FLANGE 45, 9005B $10.60
33 224361-6 INNER FLANGE 82, 9505BH $10.60
34 193465-4 LOCK NUT 5/8-45, 9005B REPLACES 224568-4 $12.60
36 854116-1 NAME PLATE, 9005B $1.36
37 140102-1 MOTOR HOUSING CPL,, 9005B $25.17
37 153548-2 MOTOR HOUSING COMPLETE,9005B $25.17
37 156734-4 MOTOR HOUSING, JN3200 $34.88
38 194982-7 CARBON BRUSH SET CB-124 (2/PK), 9045B $5.92
39 643600-9 BRUSH CAP 6-10, 9005B $1.63
40 651128-3 SWITCH, 9005B $28.05
42 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B $1.96
42 911248-8 P.H. SCREW M5X28, HM1500 $1.19
43 911143-2 P.H. SCREW M4X22, 6211D $0.86

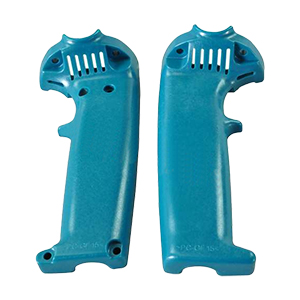

44 182853-0 HANDLE SET, 9005B $14.94
46 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
46 265941-9 TAPPING SCREW M4X18, N1900B $0.86
47 687063-9 STRAIN RELIEF, 4323K $1.26
48 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
48 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
49 682503-2 CORD GUARD 8-90, 9005B $2.51
49 682572-3 CORD GUARD, 6304LR $2.51
49 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
50 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B $1.96
50 911248-8 P.H. SCREW M5X28, HM1500 $1.19
51 411876-4 BAFFLE PLATE, JN3200 $4.49
52 182853-0 HANDLE SET, 9005B $14.94
402 782412-6 LOCK NUT WRENCH 28, GA7911 $8.40
902 261039-0 URETHANE WASHER 14,9005B $1.63
903 687051-6 STRAIN RELIEF, NHP1310 $1.26
904 819001-5 MAKITA LABEL, 9005B $0.96
