Makita 900 Grinder Parts

Makita 900 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

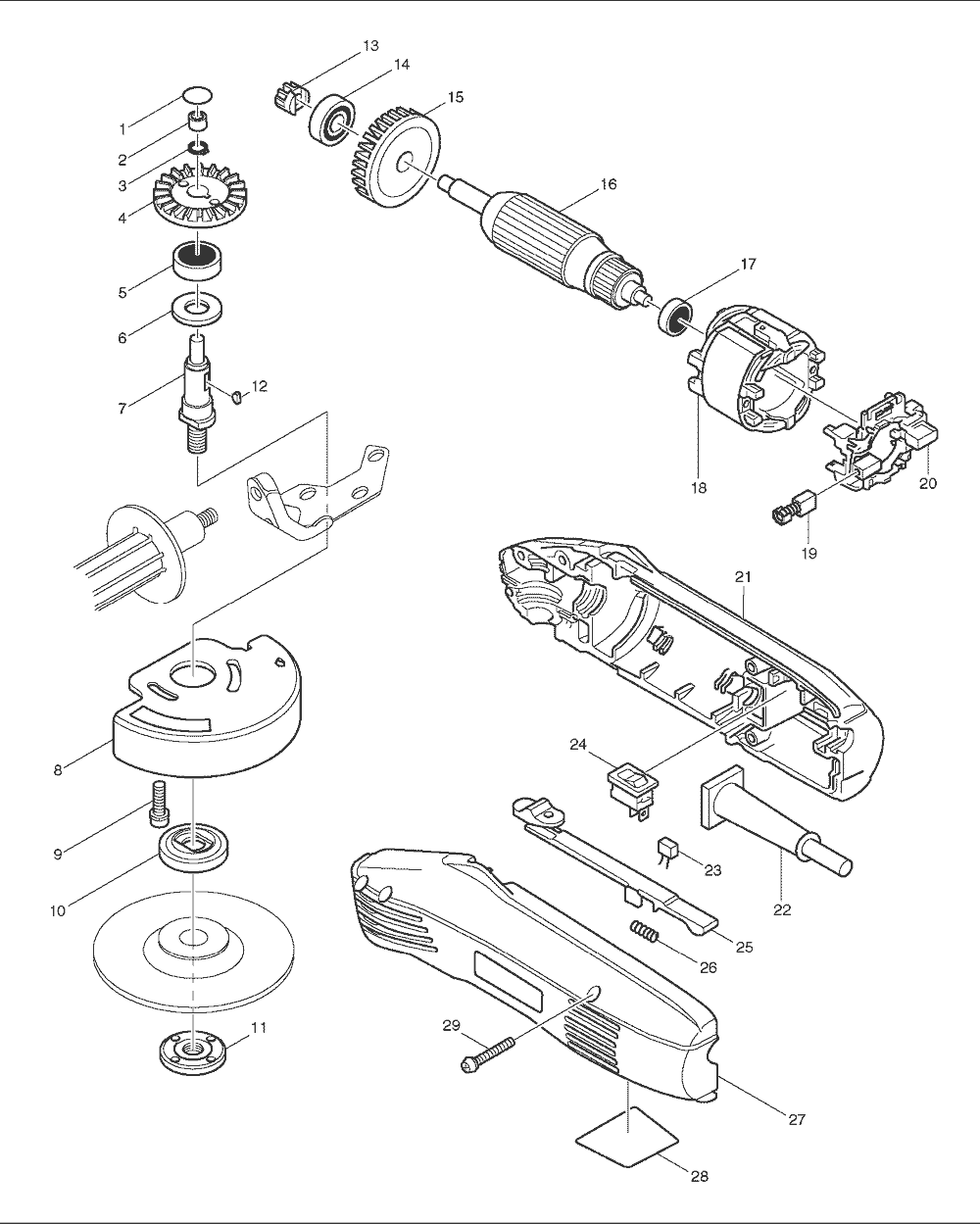

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	213114-8	O RING, N900	$0.66
2	212005-0	N. BEARING 810, HR2410	$5.92
3	961052-5	RETAINING RING S-12, 9218PBL	$0.86
4	221375-6	SPIRAL BEVEL GEAR 36, 9514B	$24.29
5	211129-9	BALL BEARING 6201DDW, GA4030	$13.07
6	253055-6	F. WASHER 12, N9514B	$1.34
7	322438-2	SPINDLE	$10.43
8	343653-5	WHEEL COVER, N900	$3.61
9	911234-9	P.H. SCREW M5X20, N900	$1.74
12	254002-0	WOODRUFF KEY 3, 9005B	$0.97
13	221374-8	SPIRAL B. GEAR 11, 9514B	$15.27
14	211088-7	BALL BEARING 6000DDW, 9005B	$13.07
15	241849-1	FAN, N900	$3.50
16	517011-3	ARMATURE ASSY 115V, N900	$97.80
18	633231-2	FIELD 115V, N900	$24.95
19	195007-0	CARBON BRUSH SET CB-407, BO5030K	$8.12
20	632098-5	TERMINAL BASE COMPLETE, N900	$10.32
21	182781-9	HOUSING SET, N900	$25.17
22	664424-0	CORD (2X18X8 SJT), 3621	$16.04
24	651514-8	SWITCH, 5007FK	$7.02
25	414557-9	SWITCH LEVER, N900	$3.94
26	231496-6	COMP. SPRING 6, N900	$1.12
27	182781-9	HOUSING SET, N900	$25.17
28	856625-6	NAME PLATE, 900	$1.12
29	911158-9	P.H. SCREW M4X30, 9045B	$0.86
1002	782401-1	LOCK NUT WRENCH, N9514B	$8.40
5001	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
5002	164329-9	GRIP HOLDER, N9514B	$3.06
5004	682502-4	CORD GUARD 8-85, HP2010N	$2.51
5004	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
5005	687063-9	STRAIN RELIEF, 4323K	$1.26
5007	224501-6	4 LOCK NUT, N9501B	$10.60
5008	743009-6	4 RUBBER PAD,N9501B	$7.60
