Makita 8413D Cordless Drill Parts

Makita 8413D Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

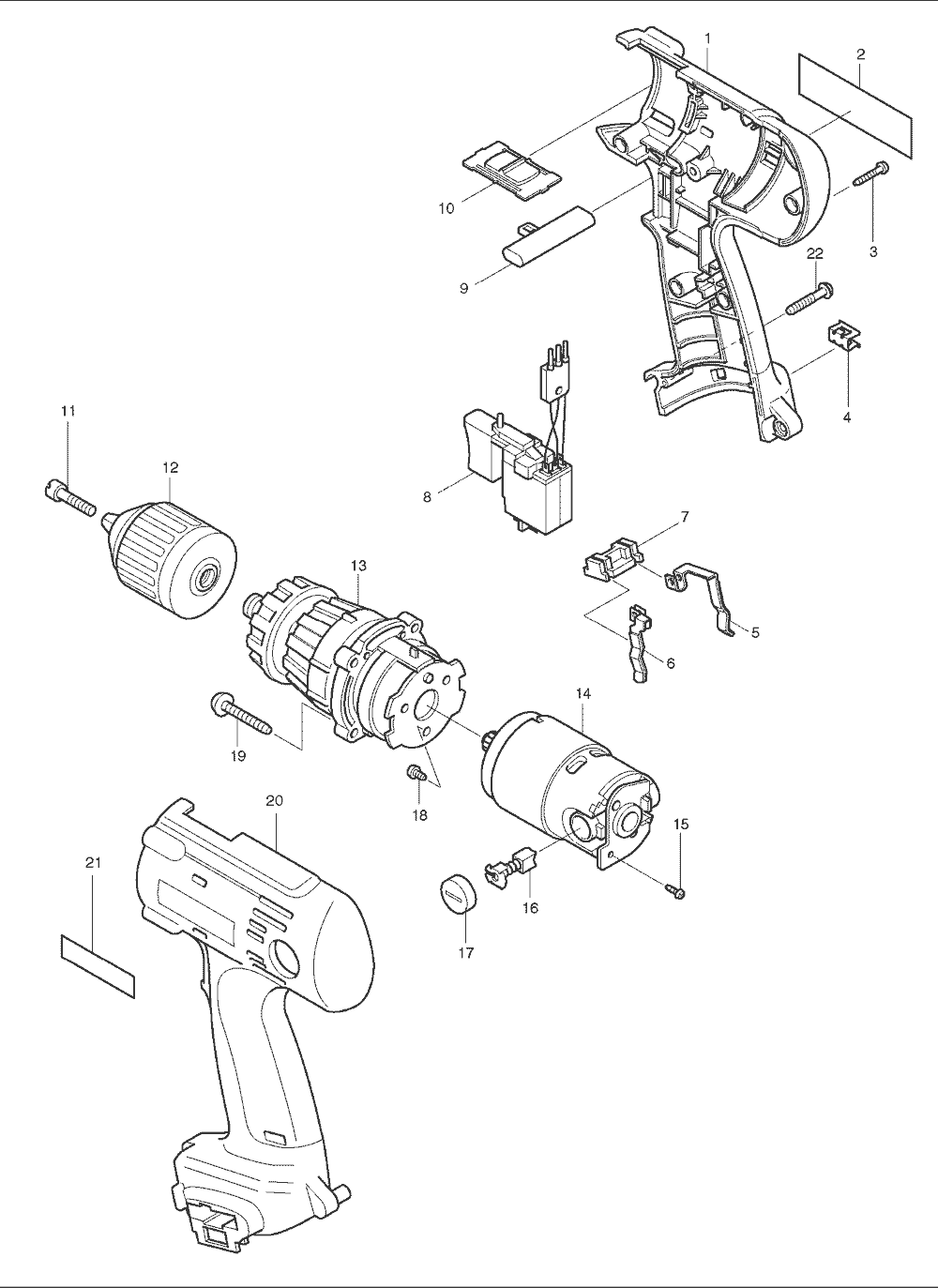

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	183206-6	MOTOR HOUSING SET, 8413DWDE	$39.06
2	852125-4	NAME PLATE, 8413DWDE	$1.08
2	853575-6	NAME PLATE, 8413D	$1.12
3	266130-9	TAPPING SCREW PT3X16, 6233DWA	$0.86
4	344391-2	BIT HOLDER, 6233DWA	$0.97
5	654168-0	SPRING TERMINAL (+), 6933FD	$4.49
6	654169-8	SPRING TERMINAL (-), 6233DWA	$4.71
7	687085-9	HOLDER, 6233DWA	$1.63
8	651939-6	SWITCH, 6233DWA	$46.41
9	416079-5	F/R CHANGE LEVER, 6933FD	$1.63
10	125091-1	SPEED CHANGE LEVER, 6343DWAE	$1.63
11	251464-3	FLAT SCREW M6X22, HP2031	$1.48
11	251465-1	F.H. SCREW M6X32, BDF460SH	$3.61
12	193065-0	KEYLESS DRILL CHUCK 13, BDF460SH	$62.20
13	125165-8	GEAR,BHP460	$106.32
14	629733-4	DC MOTOR 12V, 6216D	$65.50
15	911006-2	P.H. SCREW M3X8, 6233DWAE	$0.53
17	643929-3	HOLDER CAP, BPB180	$1.63
18	266134-1	T. SCREW ST 4X8,6233DWA	$0.53
20	183206-6	MOTOR HOUSING SET, 8413DWDE	$39.06
21	819063-3	MAKITA LABEL, DA3010F	$0.96
22	911143-2	P.H. SCREW M4X22, 6211D	$0.86
1001	122576-8	STOPPER POLE ASS'Y, BHP451	$4.40
1003	414938-7	BATTERY COVER, 6222DWE	$2.20
1006	192598-2	BATTERY 1222, 12VDC 2.0AH,6213DWAE	$96.20
1006	193157-5	BATTERY 1234 12V NIMH,6217DWDE	$126.20
