Makita 8401 Hammer Drill Parts

Makita 8401 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

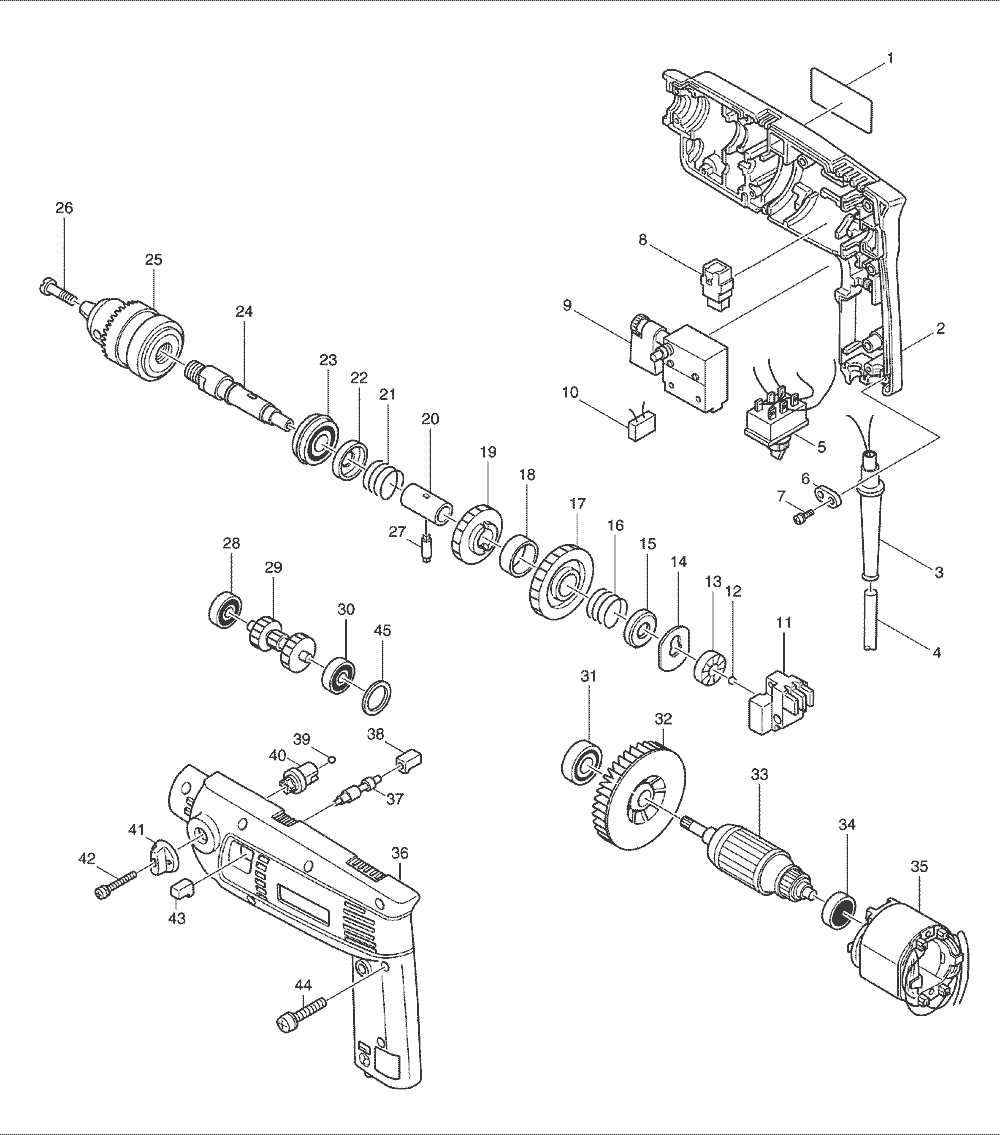

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	856661-2	NAME PLATE, 8401	$1.12
2	182552-4	HOUSING SET, 8401	$51.20
3	682502-4	CORD GUARD 8-85, HP2010N	$2.51
3	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
4	664002-6	CORD	$9.22
4	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
5	651478-6	SWITCH, REVERSING, 6302H	$13.84
6	687001-1	STRAIN RELIEF, 6013BR	$0.97
7	911133-5	P.H. SCREW M4X18, N9501B	$0.86
8	195005-4	CARBON BRUSH 401, NHP1310	$11.53
9	651255-6	SWITCH, 4014NV	$45.39
11	152355-0	CAM HOLDER COMPL., 8401	$53.90
12	216002-8	STEEL BALL 4.8, NHP1310	$0.53
13	223085-1	CAM B, 8401	$16.04
14	253986-9	WASHER 13, 8401	$2.18
15	253987-7	CUP WASHER 13, 8401	$4.16
16	231477-0	COMP. SPRING 25, 8401	$1.63
17	226213-7	SPUR GEAR 41, 8401	$36.51
18	257159-6	RING 24, 8401	$3.06
19	226212-9	SPUR GEAR 32, 8401	$29.47
20	214159-9	PLANE BEARING 13, 8401	$7.46
21	231477-0	COMP. SPRING 25, 8401	$1.63
22	253987-7	CUP WASHER 13, 8401	$4.16
23	211230-0	BALL BEARING, AC6202LLB,8401	$21.76
24	322296-6	SPINDLE, 8401	$37.53
26	251425-3	FLAT SCREW M6X22, NHP1310	$1.48
27	256430-5	PIN 5.5, 8401	$11.09
28	211020-1	BALL BEARING 626Z, NHP1310	$10.98
29	226117-3	GEAR COMPLETE 9-18-34, 8401	$47.63
30	211020-1	BALL BEARING 626Z, NHP1310	$10.98
31	211033-2	B. BEARING 608LB, 5091D	$8.78
32	241844-1	FAN, 6310	$3.61
33	511991-5	ARMATURE ASS'Y 115V, 8401	$92.10
34	211028-5	B. BEARING 627LB, 6510LVR	$8.78
35	633211-8	FIELD 115V, 8401	$27.03
36	182552-4	HOUSING SET, 8401	$51.20
37	322297-4	SHIFT ROD, 8401	$7.46
38	414437-9	PUSH BUTTON, 8401	$1.63
39	216007-8	STEEL BALL 6.4, 6905B	$0.86
40	415143-9	GEAR SHIFT PIN, 8401	$1.74
41	415142-1	GEAR SHIFT LEVER, 8401	$3.17
42	911128-8	P.H. SCREW M4X16, 1902	$1.48
43	414437-9	PUSH BUTTON, 8401	$1.63
44	911143-2	P.H. SCREW M4X22, 6211D	$0.86
45	253842-3	F. WASHER 14, HR2410	$1.34
1001	924226-9	WING BOLT M5X20, 8401	$1.48
1002	921472-5	HEX BOLT M8X50,8401	$1.48
1003	122428-3	GRIP ASS'Y, 8401,HP2010N	$13.18
1004	941202-8	F. WASHER 8, 5037NB	$0.75
1005	252635-5	NUT M8, 8401	$4.16
1007	321059-7	DEPTH ROD, HP2010N	$1.63
1009	763432-9	CHUCK KEY S13, NHP1310-T2	$5.80
1010	410102-8	KEY HOLDER, 6013BR	$1.26
