Makita 8400VD Cordless Drill Parts

Makita 8400VD Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

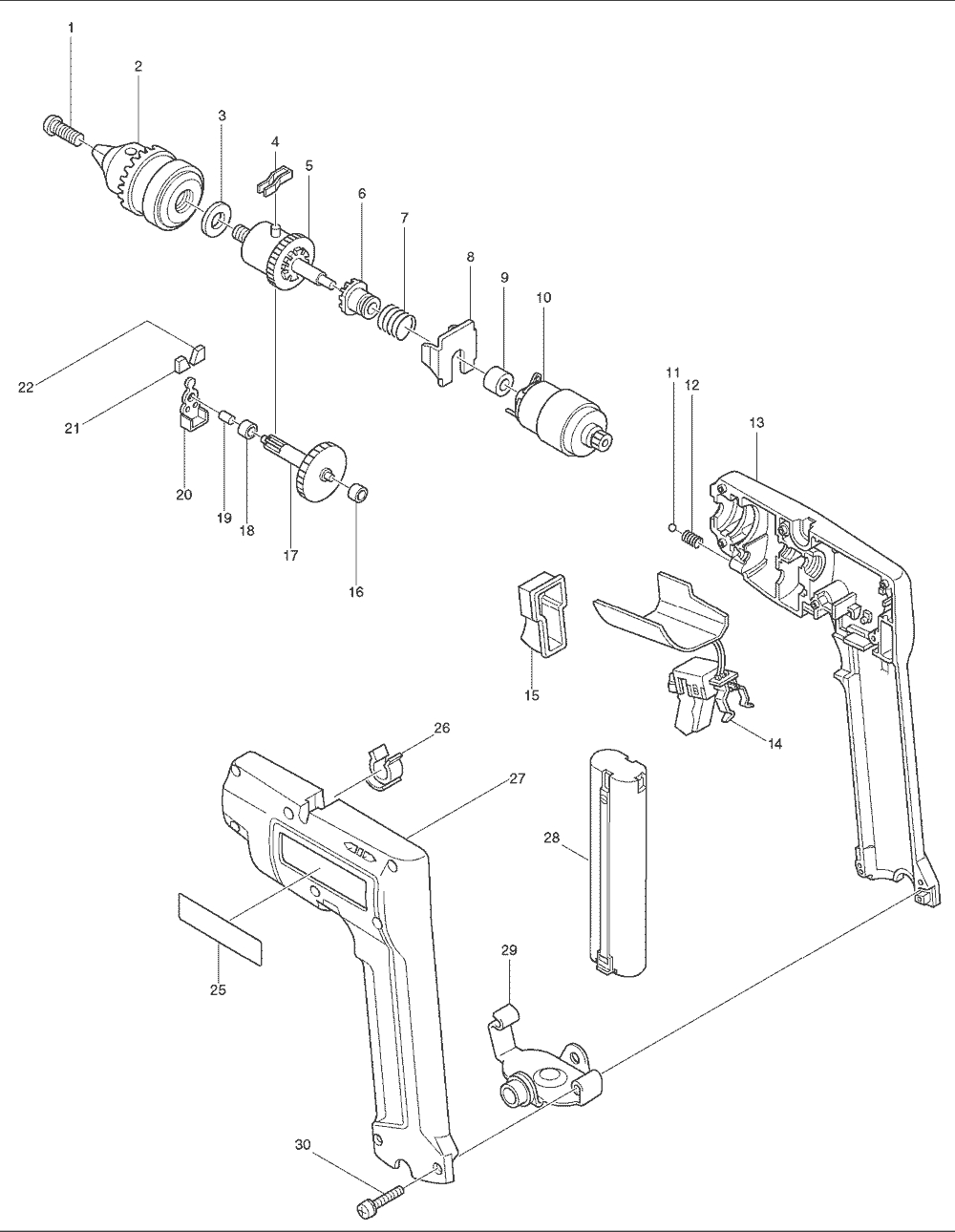

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	251448-1	SCREW M5X18, NHP1030	$1.48
3	423097-6	RUBBER PLATE, 8400DW	$1.26
4	342668-9	GUIDE PLATE, 8400DW	$1.34
5	153147-0	SPINDLE, 8400DW	$55.20
6	223063-1	CLUTCH CAM, 8400DW	$18.90
7	231352-0	COMP. SPRING 17, 8400DW	$2.07
8	342669-7	RETAINER, 8400DW	$3.61
9	214014-5	P. BEARING 6, 8400DW	$1.63
10	629574-8	MOTOR, 5090DW	$34.98
11	216002-8	STEEL BALL 4.8, NHP1310	$0.53
12	231026-3	COMP. SPRING 4, LS1016L	$0.79
14	651914-2	SWITCH, 8400VD,DA391D	$31.72
15	421243-5	DUST COVER, 8400DW	$3.06
16	214019-5	P. BEARING 4, 6043D	$1.26
17	226067-2	GEAR 17-76, 8400DW	$24.29
18	214019-5	P. BEARING 4, 6043D	$1.26
19	256047-4	PIN 6, 9607BL	$1.48
20	164702-3	CHANGE LEVER, 8400DW	$5.92
21	423030-8	RUBBER PLUG, 8400DW	$0.97
22	423030-8	RUBBER PLUG, 8400DW	$0.97
24	818057-5	LABEL, 4301BV	$0.64
25	856861-4	NAME PLATE, 8400D	$1.12
26	411640-3	HOLDER, 6043D	$1.26
30	911143-2	P.H. SCREW M4X22, 6211D	$0.86
1002	763415-9	CHUCK KEY, DA301DW	$6.80
1003	414938-7	BATTERY COVER, 6222DWE	$2.20
