Makita 8390DWPE Hammer Drill Parts

Makita 8390DWPE Parts

Download Schematic

Time to buy a new tool?

Makita 8390DWPE

1/2-Inch 18-Volt Ni-...

$134.99

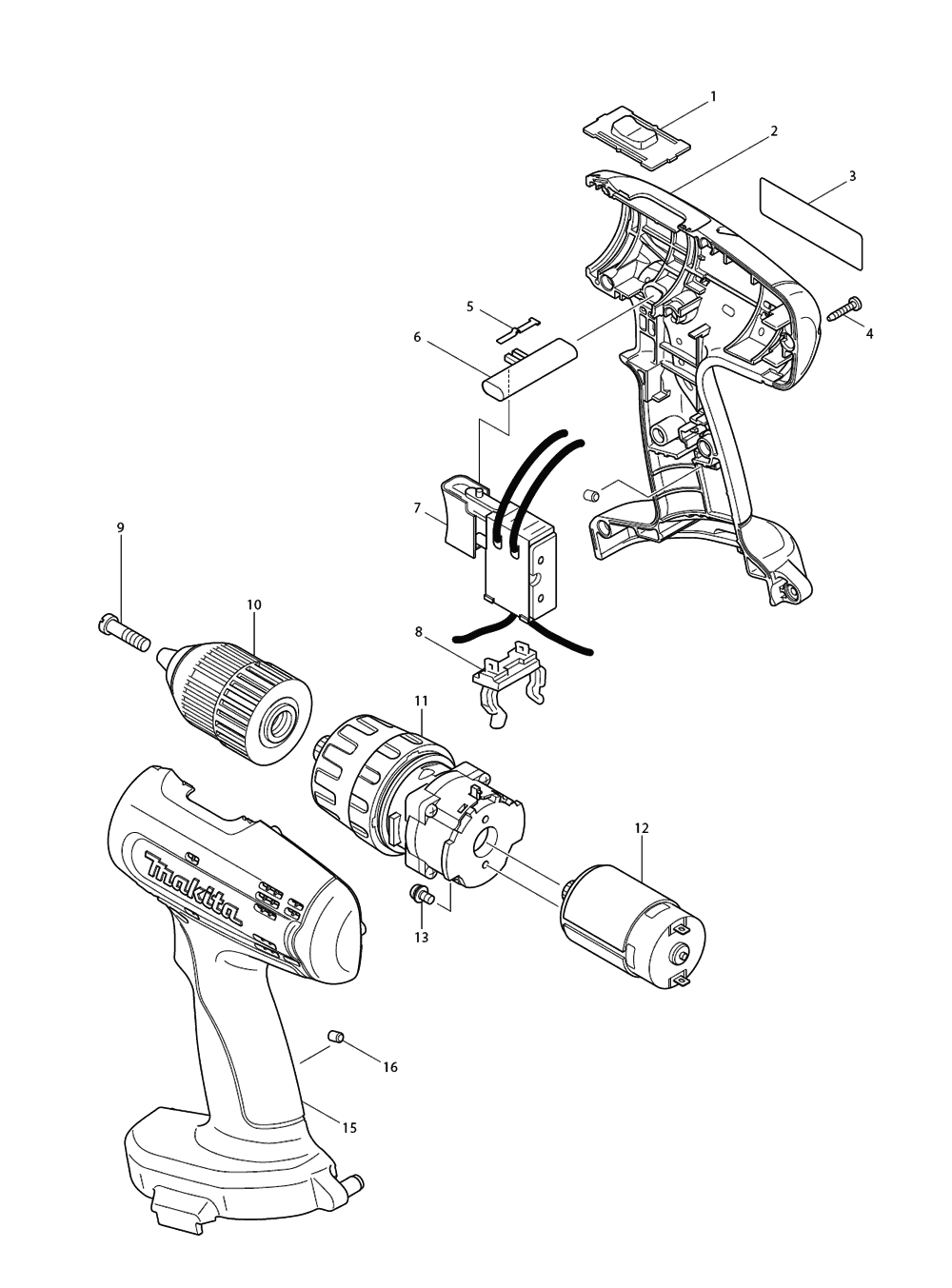

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	125102-2	SPEED CHANGE LEVER ASS'Y, BDF460SH	$1.52
2	183968-6	HOUSING SET, 6390DWPE	$14.94
3	861359-8	NAME PLATE, 8390DWPE	$0.71
4	266130-9	TAPPING SCREW PT3X16, 6233DWA	$0.86
5	232182-2	LEAF SPRING, 6096DWE	$2.07
6	417283-9	F/R CHANGE LEVER, 8390D	$2.84
7	650566-6	SWITCH, 6390DWPE	$23.19
8	643918-8	BATTERY HOLDER, 6391DWPLE	$8.01
9	251468-5	F.H. SCREW M6X22, BHP451	$0.86
11	125276-9	GEAR ASS'Y, 8390DWPE	$34.88
12	629834-8	DC MOTOR, 6390DWPE	$25.17
13	911108-4	P.H. SCREW M4X8, LS1013	$0.86
15	183968-6	HOUSING SET, 6390DWPE	$14.94
16	263024-9	RUBBER PIN 4, 6918DWD	$1.48
17	421940-3	CAP, 8390DWPE	$0.49
A01	784636-0	PHILLIPS/SLOTTED BIT 2-65, 6222DWE	$2.40
A02	DC1804	N/A	$93.00
A03	414938-7	BATTERY COVER, 6222DWE	$2.20
C10	417059-4	LATCH, HR2420	$0.97
A05	194107-3	BATTERY PA18 NI-CD 18V,6390DWPE	$98.20
A07	345261-8	HOOK PLATE, ML702	$1.26
A08	417926-3	STRAP, ML180	$5.70
