Makita 6991D Impact Wrench & Driver Parts

Makita 6991D Impact Wrench & Driver Parts Image

Makita 6991D Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

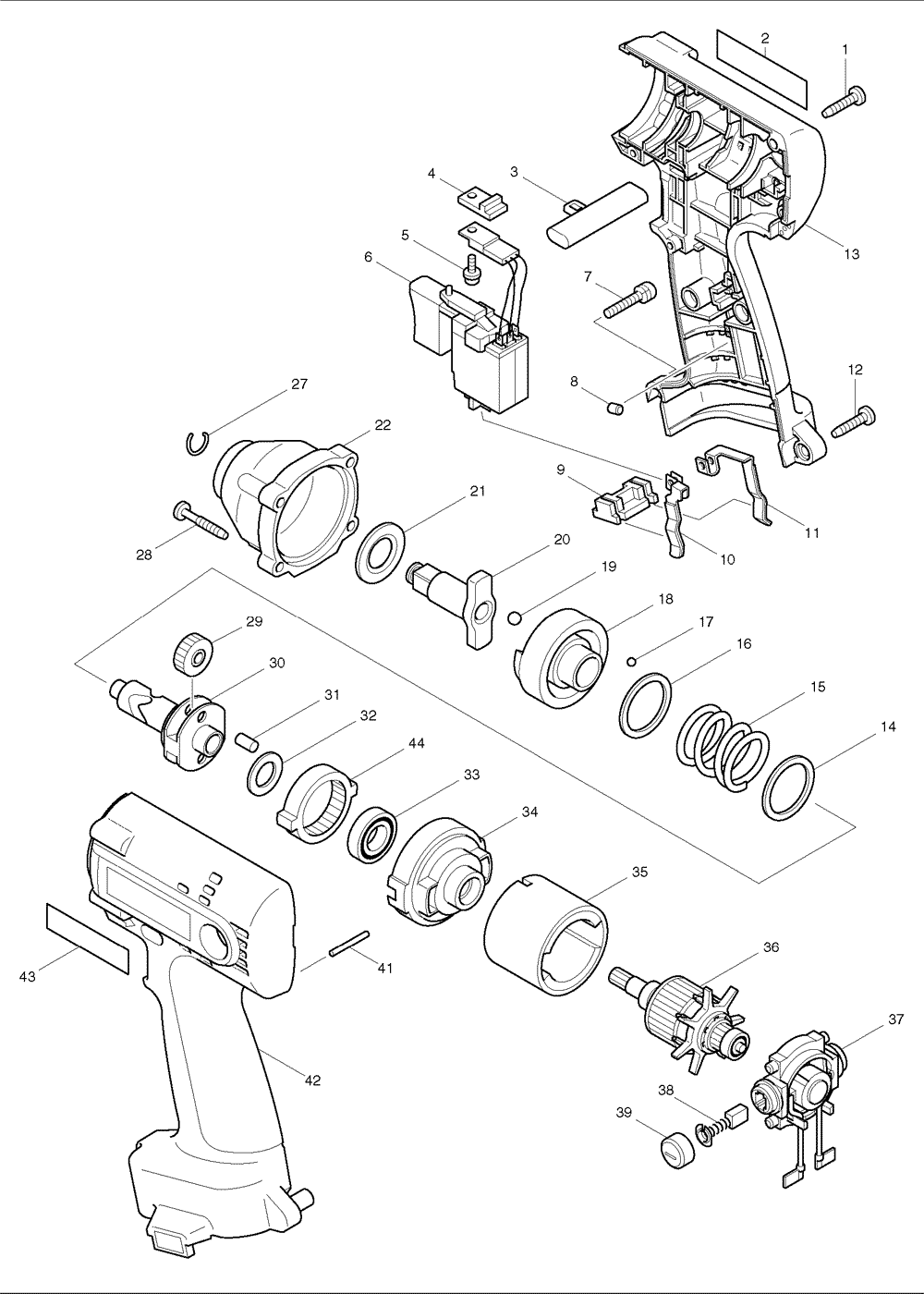

Makita 6991D Impact Wrench & Driver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
2 852308-6 NAME PLATE, 6991DWDE $0.96
3 416079-5 F/R CHANGE LEVER, 6933FD $1.63
4 689096-0 FET SPACER, 6918DWD $1.52
5 266170-7 TAPPING SCREW ST3X8, 6918DWD $0.53
6 651989-1 SWITCH, 6226DWE $41.51
7 911143-2 P.H. SCREW M4X22, 6211D $0.86
8 263024-9 RUBBER PIN 4, 6918DWD $1.48
9 687085-9 HOLDER, 6233DWA $1.63
10 654169-8 SPRING TERMINAL (-), 6233DWA $4.71
11 654168-0 SPRING TERMINAL (+), 6933FD $4.49
12 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
13 188231-2 HOUSING SET, 6990D $15.16
14 267175-0 FLAT WASHER 24, 6914DWA $1.63
14 267766-7 CUP WASHER 14, BTW121SA $1.63
15 233273-2 COMPRESSION SPRING 25, 6992DWDE $3.61
16 267175-0 FLAT WASHER 24, 6914DWA $1.63
17 216001-0 STEEL BALL 3.5, 6800DBV $0.53
18 323995-3 HAMMER, 6990DWDE $18.57
19 216011-7 STEEL BALL 5.6, 6222DWE $0.86
20 324921-5 ANVIL, 6917DW $30.49
20 323993-7 ANVIL, 6991DWDE $23.85
21 261108-7 NYLON WASHER 14, 6908DWA $1.63
22 153778-5 HAMMER CASE, 6932FD $7.02
27 233943-3 RING SPRING 8, BTW253 $4.93
27 231964-9 RING SPRING 7, BTW070Z $2.07
29 226336-1 SPUR GEAR 22, 6908DWA $6.25
30 324220-5 SPINDLE, BTW121SA $21.10
30 323994-5 SPINDLE, 6918DWD-T1 $29.58
31 256253-1 PIN 5, 6908DWA $1.19
32 267212-0 FLAT WASHER 12, 6918DWD $1.34
33 211140-1 BALL BEARING 6901LLB, 6918DWD $9.99
34 417269-3 INTERNAL GEAR CASE, 6933FD $2.95
34 417268-5 INTERNAL GEAR CASE, 6992DWDE $2.95
35 632965-4 YOKE UNIT, 6918DWD $36.72
36 619056-8 ARMATURE, 6990DWDE $50.69
37 638103-6 ENDBELL,6917DWE $6.80
38 195020-8 CARBON BRUSH CB-434 SET, BTW121SA $5.92
39 643982-9 BRUSH HOLDER CAP, BTW150SA $1.52
41 256176-3 PIN 2.5, T220DW $1.19
42 188231-2 HOUSING SET, 6990D $15.16
43 819063-3 MAKITA LABEL, DA3010F $0.96
44 227001-5 INTERNAL GEAR 51, 6918DWD $4.27
1001 414938-7 BATTERY COVER, 6222DWE $2.20
1002 193156-7 9.6V 2.6AR NIMH BATTERY 9134 $114.20
1003 824635-1 PLASTIC TOOL CASE,6227D,6991DWDE $40.20
5001 414938-7 BATTERY COVER, 6222DWE $2.20
5004 193156-7 9.6V 2.6AR NIMH BATTERY 9134 $114.20
5007 213960-9 O RING 5, GA4530 $0.53
