Makita 6953 Impact Wrench & Driver Parts

Makita 6953 Impact Wrench & Driver Parts Image

Makita 6953 Parts
1/2 Inch Square Drive Impact Wrench

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 6953
1/2 Inch Square Driv...
$204.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

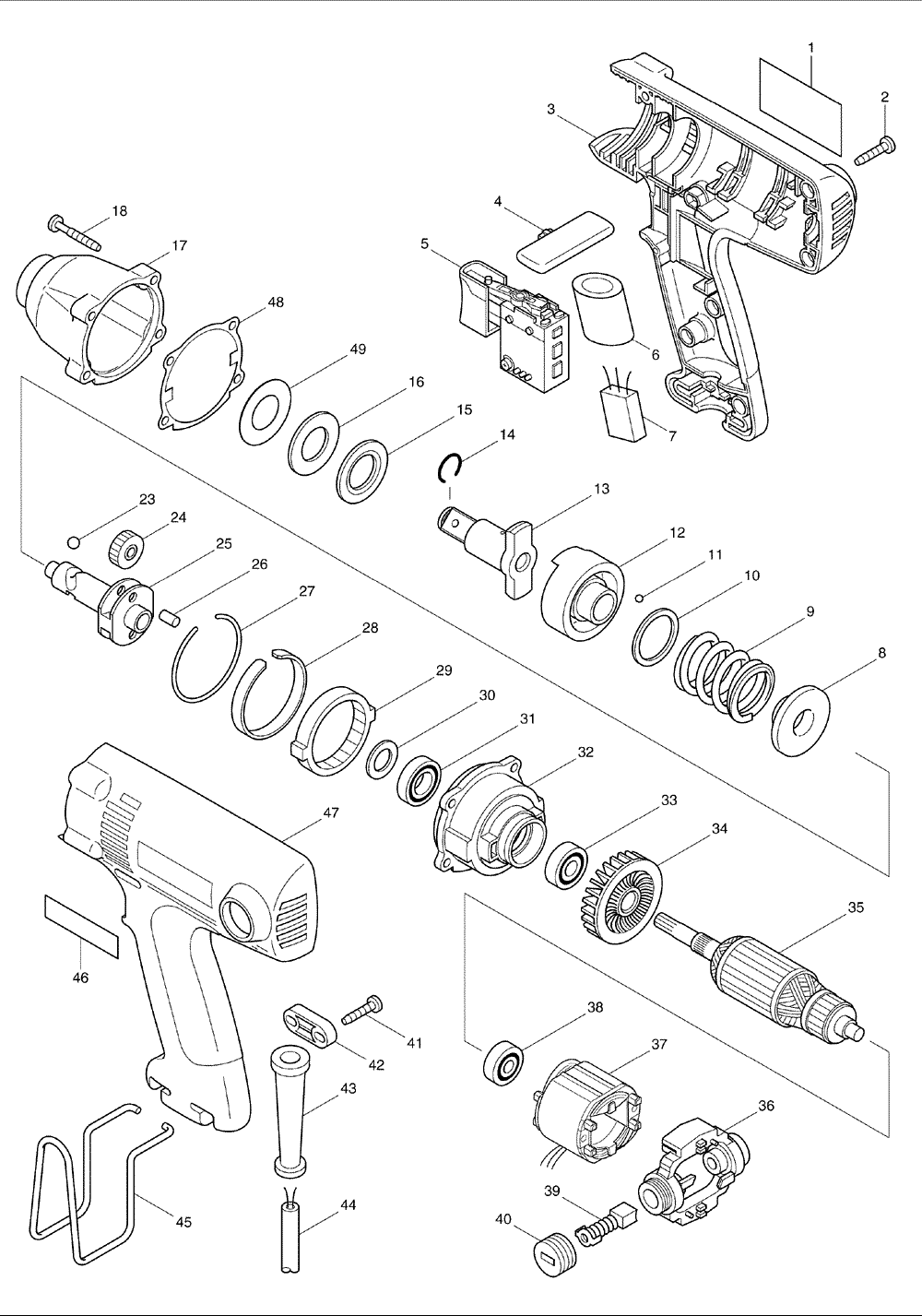

Makita 6953 Impact Wrench & Driver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 853010-4 NAME PLATE, 6953 $1.12
00 257714-4 SLEEVE 18, 6953 $9.33
2 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
00 643981-1 BRUSH HOLDER 6X9, 6953 $5.48
3 183394-9 HOUSING SET,6953 $26.38
4 417553-6 F/R CHANGE LEVER, 6953 $1.52
5 650523-4 SWITCH, TW0200 $36.21
8 267759-4 CUP WASHER 14, BTW150SA $2.18
9 233335-6 COMPRESSION SPRING 25, 6953 $3.61
10 267175-0 FLAT WASHER 24, 6914DWA $1.63
11 216001-0 STEEL BALL 3.5, 6800DBV $0.53
12 324174-6 HAMMER, BTW150SA $14.61
13 324178-8 ANVIL, BTW150SA $32.94
15 267227-7 FLAT WASHER 18, BTW150SA $3.72
16 261120-7 RUBBER WASHER 18, BTW150SA $1.34
17 152827-5 HAMMER CASE,6953 $21.10
18 266295-7 HSH BOLT M4X30, BTD150SA $1.96
23 216011-7 STEEL BALL 5.6, 6222DWE $0.86
24 227233-4 SPUR GEAR 22, BTW251 $3.61
25 324090-2 SPINDLE, BTW150SA $19.78
26 256253-1 PIN 5, 6908DWA $1.19
27 233910-8 RING SPRING 43, BTW150SA $0.86
28 344991-8 C-SLEEVE 45, BTW150SA $2.84
29 227001-5 INTERNAL GEAR 51, 6918DWD $4.27
30 267212-0 FLAT WASHER 12, 6918DWD $1.34
31 211140-1 BALL BEARING 6901LLB, 6918DWD $9.99
32 317428-8 INTERNAL GEAR CASE, 6953 $9.77
33 210024-0 BALL BEARING 608 2RS, HR2811F $6.69
34 240046-6 FAN 46, 6953 $4.16
35 517551-1 ARMATURE ASSY 115V, 6953 $66.70
36 152990-4 HOLDER ARM CPL., 6953 $11.97
37 635046-3 FIELD 115V, 6953 $19.01
38 211021-9 BALL BEARING 607LLB, LS1013 $8.78
39 195008-8 CARBON BRUSH 408 SET, 3901 $8.12
40 643928-5 HOLDER CAP, 9523NB $1.63
41 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
42 687063-9 STRAIN RELIEF, 4323K $1.26
43 682559-5 CORD GUARD 8, 6824 $2.51
43 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
44 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
44 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
45 324284-9 HOOK, 6953 $4.16
46 819063-3 MAKITA LABEL, DA3010F $0.96
47 183394-9 HOUSING SET,6953 $26.38
48 442137-1 GASKET, 6952 $2.84
49 267235-8 FLAT WASHER 18, BTW150SA $1.63
1001 824630-1 PLASTIC CARRYING CASE,6952 $30.20
5001 322045-1 CLIP, 6905B $3.61
5002 323675-1 "RETAINING PIN FOR 1/2"" IMPACT WRENCH, 6905B" $3.06
5003 810134-9 CAUTION LABEL, 3709 $0.93
