Makita 6950 Impact Wrench & Driver Parts

Makita 6950 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

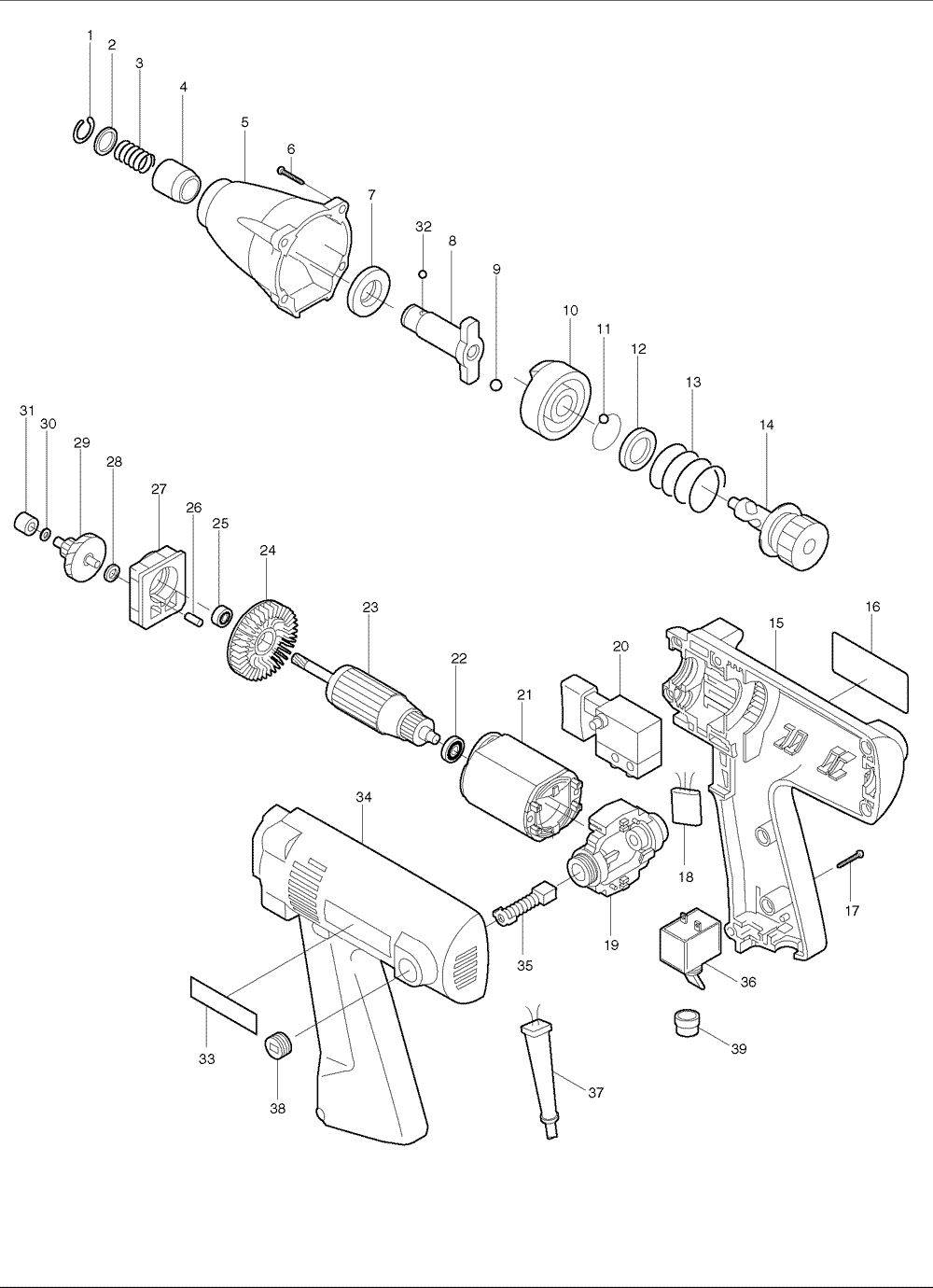

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	231951-8	RING SPRING 11, 6903VDW	$1.48
2	267085-1	FLAT WASHER 12, 6903VDW	$1.63
3	233005-7	COMP.SPRING 13,6903VDW	$1.48
4	324420-7	SLEEVE, 6903VDW	$7.46
5	159749-0	HAMMER CASE COMPLETE, 6950	$33.55
6	265925-7	TAPPING SCREW BT4X20, 6201DW	$0.53
7	261099-2	NYLON WASHER 14, 6913D	$2.18
8	324267-9	ANVIL, 6908DWA	$26.52
9	216011-7	STEEL BALL 5.6, 6222DWE	$0.86
10	322793-2	HAMMER, 6950	$28.25
11	216001-0	STEEL BALL 3.5, 6800DBV	$0.53
12	267126-3	FLAT WASHER 22, GD0601	$2.18
13	233111-8	COMPRESSION SPRING 24, 6950	$4.16
14	153230-3	SPINDLE COMPLETE, 6950	$42.94
15	182727-5	HOUSING SET, 6950	$29.58
16	857785-7	NAME PLATE, 6950	$1.12
17	265925-7	TAPPING SCREW BT4X20, 6201DW	$0.53
19	152475-0	HOLDER ARM COMPLETE, 6950	$14.61
20	651274-2	SWITCH, 6950	$49.98
21	635016-2	FIELD 115V, 6950	$38.45
22	211023-5	BALL BEARING 607LB, 9031	$11.97
23	517521-0	ARMATURE ASSY. 115V, 6950	$92.10
24	241885-7	FAN 48, 6950	$4.60
25	211031-6	BALL BEARING 608LLB, 9227C	$10.98
27	152465-3	BEARING CASE, 6950	$5.48
28	267099-0	FLAT WASHER 4, 6201D	$1.63
29	226815-9	GEAR COMPLETE 9-34, 6950	$24.29
30	253811-4	F. WASHER 5, 5007NK	$1.34
31	214034-9	PLANE BEARING 5, 6950	$2.84
32	216001-0	STEEL BALL 3.5, 6800DBV	$0.53
33	819063-3	MAKITA LABEL, DA3010F	$0.96
34	182727-5	HOUSING SET, 6950	$29.58
35	195008-8	CARBON BRUSH 408 SET, 3901	$8.12
35	K25	Carbon Brush Set Replaces Makita (CB-408), 19193...	$8.50
36	651478-6	SWITCH, REVERSING, 6302H	$13.84
37	664432-1	CORD, 6950	$20.88
38	643550-8	BRUSH CAP , 9031	$1.63
39	421536-0	DUST COVER, 6950	$4.16
