Makita 6917FD Impact Wrench & Driver Parts

Makita 6917FD Impact Wrench & Driver Parts Image

Makita 6917FD Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

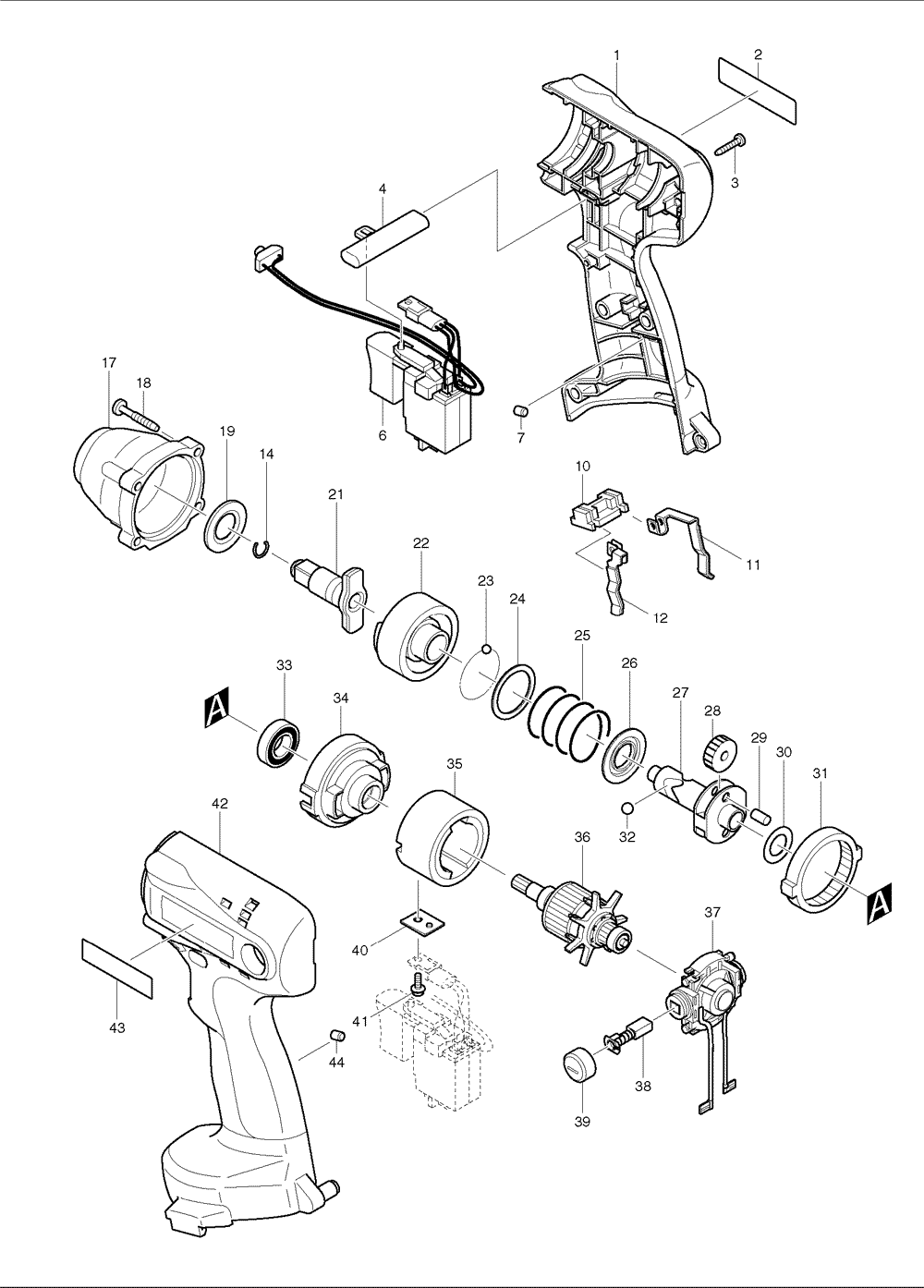

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	183694-7	HOUSING SET, 6916FD	$13.84
2	861455-2	NAME PLATE, 6917FD	$0.89
3	266130-9	TAPPING SCREW PT3X16, 6233DWA	$0.86
4	416079-5	F/R CHANGE LEVER, 6933FD	$1.63
6	638288-8	SWITCH UNIT, 6932FD	$56.40
7	263024-9	RUBBER PIN 4, 6918DWD	$1.48
10	687085-9	HOLDER, 6233DWA	$1.63
11	654168-0	SPRING TERMINAL (+), 6933FD	$4.49
12	654169-8	SPRING TERMINAL (-), 6233DWA	$4.71
14	233943-3	RING SPRING 8, BTW253	$4.93
14	231964-9	RING SPRING 7, BTW070Z	$2.07
17	153778-5	HAMMER CASE, 6932FD	$7.02
19	261108-7	NYLON WASHER 14, 6908DWA	$1.63
21	324921-5	ANVIL, 6917DW	$30.49
21	323993-7	ANVIL, 6991DWDE	$23.85
22	323997-9	HAMMER, 6918DWD	$19.78
23	216001-0	STEEL BALL 3.5, 6800DBV	$0.53
24	267175-0	FLAT WASHER 24, 6914DWA	$1.63
25	233274-0	COMPRESSION SPRING 25, 6918DWD	$4.93
26	267766-7	CUP WASHER 14, BTW121SA	$1.63
27	324220-5	SPINDLE, BTW121SA	$21.10
28	226336-1	SPUR GEAR 22, 6908DWA	$6.25
29	256253-1	PIN 5, 6908DWA	$1.19
30	267212-0	FLAT WASHER 12, 6918DWD	$1.34
31	227001-5	INTERNAL GEAR 51, 6918DWD	$4.27
32	216011-7	STEEL BALL 5.6, 6222DWE	$0.86
33	211150-8	BALL BEARING 6901ZZ, 6916FD	$8.01
34	417269-3	INTERNAL GEAR CASE, 6933FD	$2.95
35	632965-4	YOKE UNIT, 6918DWD	$36.72
36	619057-6	ARMATURE, 6918DWD	$51.40
37	638156-5	ENDBELL CPL.,6932FD	$5.48
38	195020-8	CARBON BRUSH CB-434 SET, BTW121SA	$5.92
39	643982-9	BRUSH HOLDER CAP, BTW150SA	$1.52
40	689096-0	FET SPACER, 6918DWD	$1.52
41	266170-7	TAPPING SCREW ST3X8, 6918DWD	$0.53
42	183694-7	HOUSING SET, 6916FD	$13.84
43	819063-3	MAKITA LABEL, DA3010F	$0.96
44	263024-9	RUBBER PIN 4, 6918DWD	$1.48
1001	414938-7	BATTERY COVER, 6222DWE	$2.20
1003	193157-5	BATTERY 1234 12V NIMH,6217DWDE	$126.20
1004	183763-4	PLASTIC TOOL CASE, 6217DWDE	$40.20
5001	213960-9	O RING 5, GA4530	$0.53
