Makita 6912D Impact Wrench & Driver Parts

Makita 6912D Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

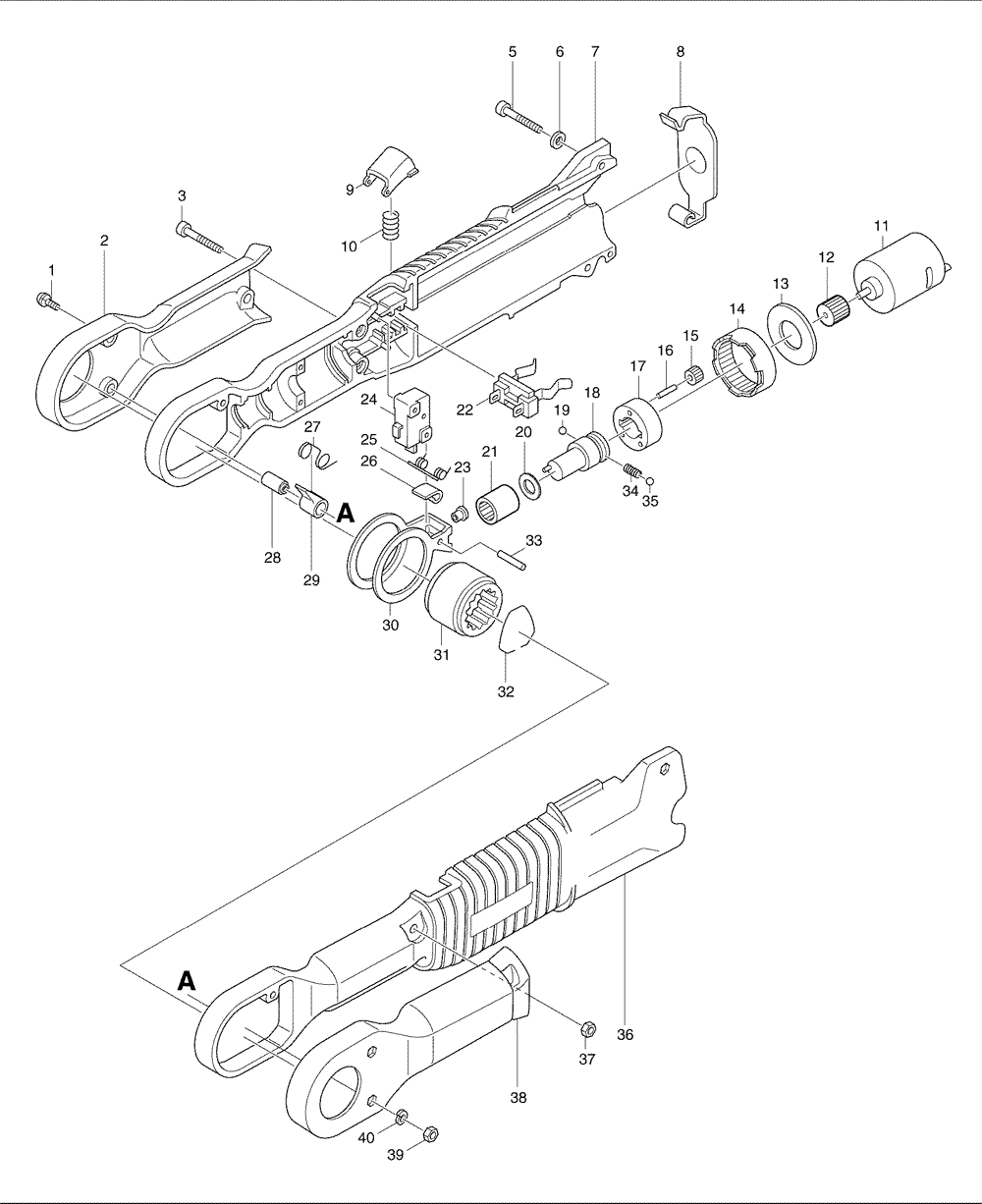

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	922132-2	H.S.H. BOLT M4X18, 4300DW	$1.08
2	343323-6	SUB HOUSING (R), 6912D	$14.94
3	922146-1	H.S.H. BOLT M4X25, 6830	$1.34
4	855571-0	NAME PLATE, 6912D	$1.12
5	922146-1	H.S.H. BOLT M4X25, 6830	$1.34
6	941052-1	F. WASHER 4, 9218SB	$0.75
7	181902-0	HOUSING SET, 6912D	$23.96
9	410783-8	SWITCH LEVER, 6912D	$1.34
10	231393-6	COMP. SPRING 6, 9035DW	$1.12
11	629565-9	MOTOR, 6912D (TYPE 2)	$26.82
12	221927-3	SPUR GEAR 17, 6912D	$4.71
13	267025-9	F. WASHER 15, HR4500C	$2.18
14	221926-5	I. GEAR 49, 6912D	$2.51
15	221928-1	S. GEAR 16, 6912D	$1.34
16	256180-2	PIN 3, DS4011	$0.86
17	152322-5	CLUTCH CAM, 6912DW (TYPE 2)	$12.63
18	322162-7	SPINDLE, 6912D (TYPE 2)	$14.94
19	216008-6	STEEL BALL 4.0, 5007NK	$0.53
20	253758-2	F. WASHER 10, 9901	$1.01
21	212070-9	N. BEARING, 6912D	$5.92
22	643909-9	BATTERY HOLDER, DA392D	$4.49
23	321963-0	COLLAR, 6912D	$2.51
24	651805-7	SWITCH, 6912D	$11.53
25	231578-4	TOR. SPRING 5, 6912D	$4.93
26	343327-8	SPRING PAWL, 6912D	$4.71
27	231581-5	TOR. SPRING 8, 6912D	$1.34
28	257609-1	SLEEVE 4, 6912D	$1.34
29	331310-7	RATCHET PAWL, 6912D	$10.32
30	342999-6	RATCHET HOLDER, 6912D	$5.15
31	321964-8	SOCKET 21, 6912D	$22.86
32	231938-0	RING SPRING 18, 6912D	$4.16
33	256163-2	PIN 4, 6912D	$1.12
36	181902-0	HOUSING SET, 6912D	$23.96
38	343397-7	SUB HOUSING (L), 6912D	$11.53
40	942051-6	SPRING WASHER 4, 4301BV	$0.90
400	785404-4	3/8 SOCKET ADAPTOR, 6912D	$12.20
