Makita 6907D Impact Wrench & Driver Parts

Makita 6907D Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

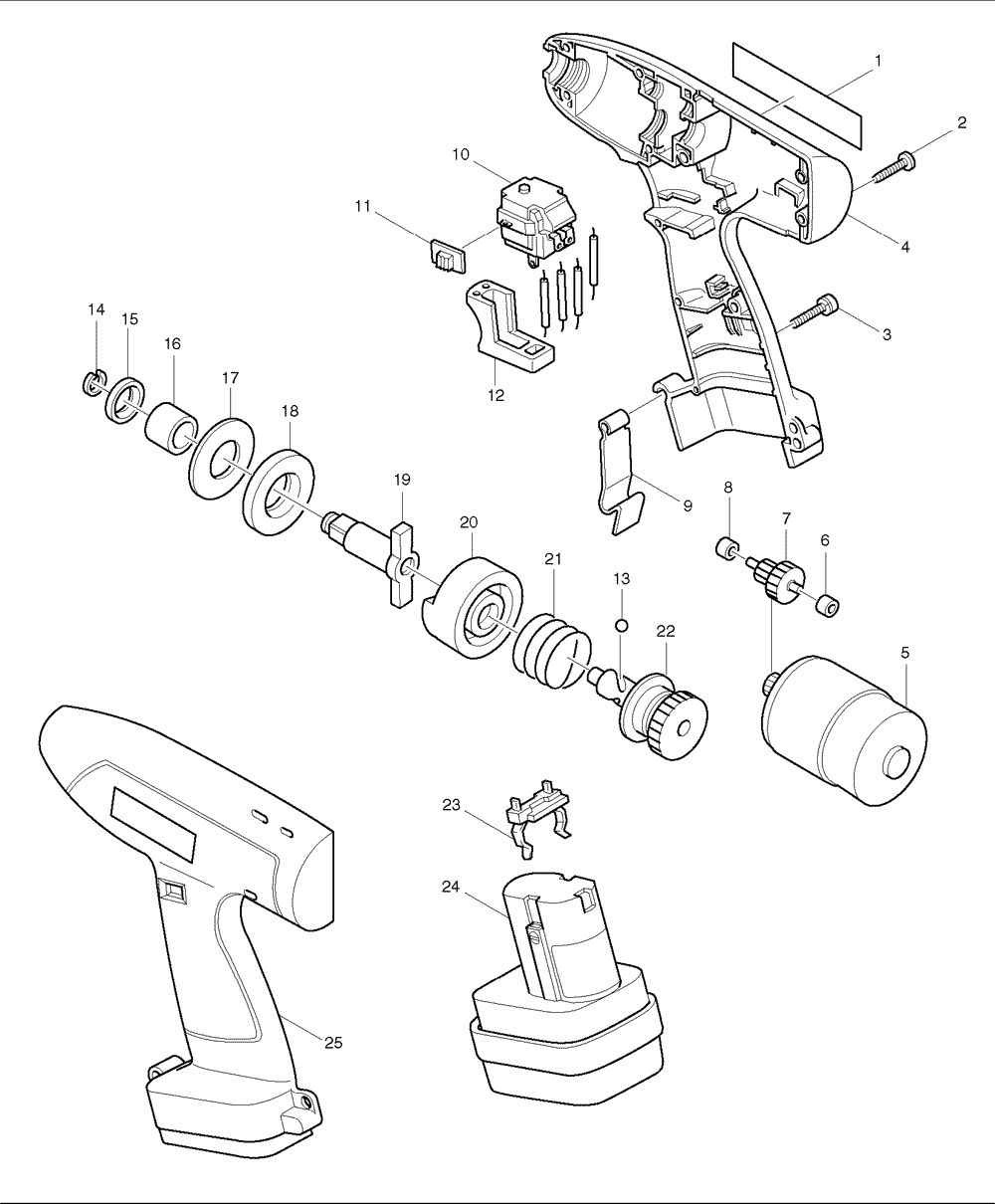

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
2	265925-7	TAPPING SCREW BT4X20, 6201DW	$0.53
3	911143-2	P.H. SCREW M4X22, 6211D	$0.86
4	182804-3	HOUSING SET, 6907DW T1	$26.27
4	183168-8	HOUSING SET,6907DW	$21.76
5	629681-7	DC MOTOR, 6907DW	$47.83
6	214027-6	PLANE BEARING 4, 6903VD	$1.26
7	226105-0	GEAR COMPLETE 11-37, 6903VDW	$25.83
8	214027-6	PLANE BEARING 4, 6903VD	$1.26
9	343579-1	SET PLATE, 6211D	$3.06
10	650500-6	SWITCH, 6903VDWE	$40.18
10	651909-5	SWITCH, 6903VD	$38.25
11	414740-8	LEVER, 6222DWE	$3.06
12	415671-4	SWITCH LEVER, 6201DW	$1.63
13	216011-7	STEEL BALL 5.6, 6222DWE	$0.86
14	233943-3	RING SPRING 8, BTW253	$4.93
14	231964-9	RING SPRING 7, BTW070Z	$2.07
15	213151-2	OIL SEAL 14, 6903VD	$4.49
16	257629-5	SLEEVE 14, 6903VDW	$7.46
17	261075-6	RUBBER WASHER 20, 6903VDW	$1.63
18	261099-2	NYLON WASHER 14, 6913D	$2.18
19	322796-6	ANVIL, 6907DW	$37.53
19	324763-7	ANVIL, 6907DW	$31.92
20	322259-2	HAMMER, 6903VDW	$26.92
21	231463-1	COMP. SPRING 24, 6903VDW	$4.16
22	153205-2	SPINDLE COMPLETE, 6903VDW	$42.94
23	643918-8	BATTERY HOLDER, 6391DWPLE	$8.01
25	182804-3	HOUSING SET, 6907DW T1	$26.27
25	183168-8	HOUSING SET,6907DW	$21.76
26	213960-9	O RING 5, GA4530	$0.53
1001	414938-7	BATTERY COVER, 6222DWE	$2.20
