Makita 6906 Impact Wrench & Driver Parts

Makita 6906 Impact Wrench & Driver Parts Image

Makita 6906 Parts
3/4 Inch Reversible Square Drive Impact Wrench

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 6906
3/4 Inch Reversible ...
$581.99
Tool Diagram    (Click image to Zoom in) View larger Image

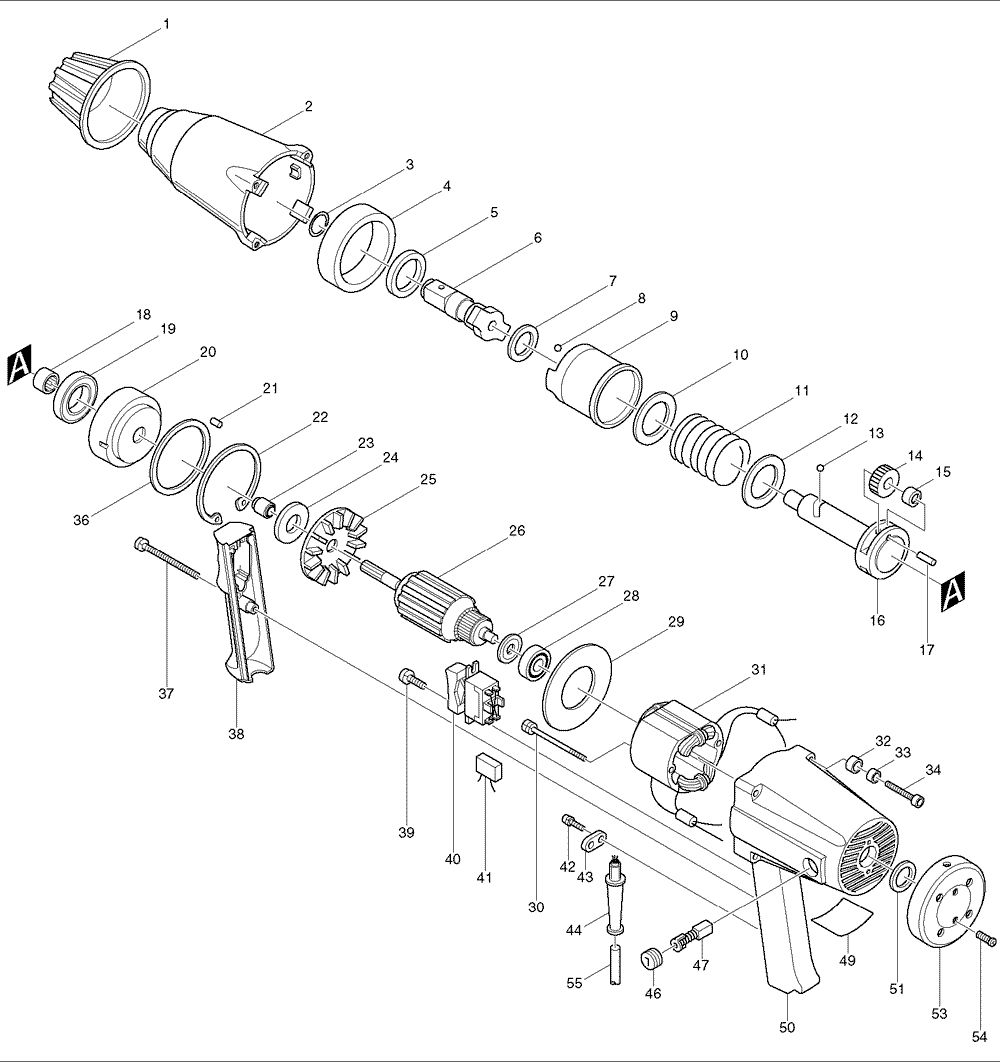

Makita 6906 Impact Wrench & Driver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 421112-0 BUMPER, 6906 $7.46
00 925293-7 HEX BOLT M5X70, 9207SPC, (T1) $1.34
2 156087-1 HAMMER CASE, 6906 $83.90
500 122464-9 GRIP ASSEMBLY, 6906-T2 $20.33
20 221242-5 INTERNAL GEAR 65, 6906 $98.36
3 231920-9 RING SPRING 16, 6906 $1.63
4 257040-1 RING 65, 6906 $26.92
00 257535-4 SLEEVE 25, 6906 $20.33
4 257040-1 RING 65, 6906 $26.92
5 253939-8 F. WASHER 25,6906 $7.57
6 324231-0 ANVIL, 6906 $59.70
00 323761-8 PIN(FOR UNIVERSAL JOINT 19), 6906 $5.48
26 512881-5 ARMATURE, 6906 $133.09
7 261023-5 WASHER 27, 6906 $4.16
8 216008-6 STEEL BALL 4.0, 5007NK $0.53
6 324231-0 ANVIL, 6906 $59.70
9 325318-1 HAMMER, 6906 $98.30
10 253764-7 F. WASHER 30, 6906 (TYPE 2) $4.16
11 231135-8 COMP. SPRING 37, 6906 $10.54
12 253765-5 F. WASHER 36, 6906 (TYPE 2) $2.18
13 216009-4 STEEL BALL 7.1, HR2400 $0.86
14 221243-3 P.S. GEAR 29, 6906 $15.27
15 212011-5 N.BEARING 609,JS1600 $10.32
16 325322-0 SPINDLE, 6906 $91.80
17 256041-6 PIN 6, 6906 $1.96
18 212151-9 N. BEARING 1412, JN1600 $10.32
19 211441-7 BALL BEARING 3009, 6906 $28.15
20 221242-5 INTERNAL GEAR 65, 6906 $98.36
21 256040-8 PIN 5, LS1030 $1.19
22 962352-6 RETAINING RING R-75, 6906 $5.37
23 216103-2 INNER RACE 1016, 6906 $7.46
24 253180-3 F. WASHER 10, 6906 $1.63
25 241609-1 FAN 73, 6906 $7.46
26 512881-5 ARMATURE, 6906 $133.09
27 681613-2 INS. WASHER, JN3200 $1.63
28 211031-6 BALL BEARING 608LLB, 9227C $10.98
29 413008-9 BAFFLE PLATE, 6906 $4.49
30 265350-2 HEX BOLT M5X70, 6906 $3.61
31 622282-0 FIELD, 6906 $62.10
32 253929-1 CUP WASHER 5, 6906 $1.63
33 262001-8 RING 5, 6906 $3.61
34 922262-9 H.S.H. BOLT M5X40, 6906 $1.34
36 253774-4 F. WASHER 65, 6906 $4.16
37 911173-3 P.H. SCREW M4X45, 6906 $1.19
38 414959-9 HANDLE COVER,6906,T2 $7.46
39 911106-8 P.H. SCREW M4X8, NHP1310 $0.53
40 651564-3 SWITCH, DS4000 $31.00
42 911133-5 P.H. SCREW M4X18, N9501B $0.86
43 687002-9 STRAIN RELIEF, 9217SPC $0.97
44 682503-2 CORD GUARD 8-90, 9005B $2.51
44 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
46 643600-9 BRUSH CAP 6-10, 9005B $1.63
47 194982-7 CARBON BRUSH SET CB-124 (2/PK), 9045B $5.92
49 815088-5 NAME PLATE, 6906 $1.36
50 159414-1 MOTOR HOUSING,6906,T2 $48.24
51 262010-7 RING 18, 6906 $1.96
53 284065-2 REAR COVER,6906,T2 $13.18
54 922221-3 HEX BOLT M5X16, 6906 $1.34
55 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
55 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
401 122464-9 GRIP ASSEMBLY, 6906-T2 $20.33
402 345086-0 BELT, 6906 $3.61
403 251920-3 C.S.N. BOLT M6X30, 5007NB $1.34
500 122464-9 GRIP ASSEMBLY, 6906-T2 $20.33
501 134946-9 ANVIL ASS'Y, 6906 $59.70
902 810146-2 CAUTION LABEL, 6906 $1.17
908 819064-1 MAKITA MARK, 5402NA $1.26
