Makita 6905H Impact Wrench & Driver Parts

Makita 6905H Impact Wrench & Driver Parts Image

Makita 6905H Parts
1/2 Inch Square Drive Impact Wrench

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 6905H
1/2 Inch Square Driv...
$193.99
Tool Diagram    (Click image to Zoom in) View larger Image

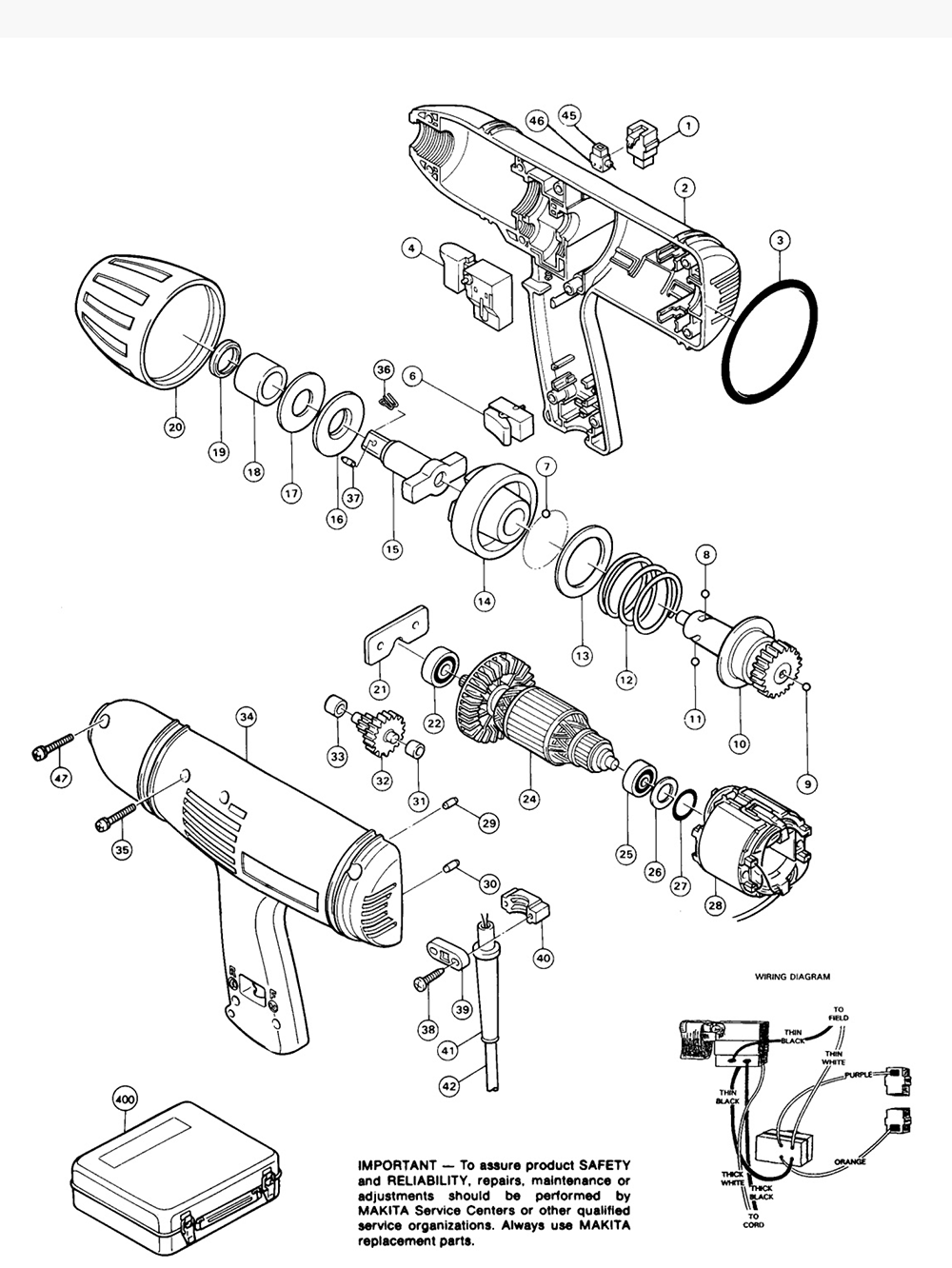

Makita 6905H Impact Wrench & Driver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 195005-4 CARBON BRUSH 401, NHP1310 $11.53
28 634176-7 FIELD,6905H $40.39
2 182471-4 HOUSING SET, 6905H $42.94
3 213718-6 O RING 70, 6905H $3.61
4 651234-4 SWITCH, 6905H $14.94
6 651556-2 SWITCH, 6905H $16.04
7 216008-6 STEEL BALL 4.0, 5007NK $0.53
8 216007-8 STEEL BALL 6.4, 6905B $0.86
9 216007-8 STEEL BALL 6.4, 6905B $0.86
10 153199-1 SPINDLE COMPLETE, 6905H $52.50
11 216007-8 STEEL BALL 6.4, 6905B $0.86
12 231493-2 COMP. SPRING 34, 6905H $5.37
13 267079-6 FLAT WASHER 34, 6905H $4.16
14 322391-2 HAMMER, 6905H $42.94
15 324358-6 ANVIL, 6905H $37.84
16 253937-2 F. WASHER 18, 6905B $7.57
17 261089-5 RUBBER WASHER 18, 6904VH $4.16
18 257637-6 SLEEVE 18, 6905H $8.78
19 213257-6 OIL SEAL 18, TW0350 $4.49
20 421747-7 BUMPER 6905H $5.48
21 162149-5 CUSHION PLATE, 6905H $8.78
22 211031-6 BALL BEARING 608LLB, 9227C $10.98
23 241850-6 FAN 60, BTW450 $4.16
24 516051-8 ARMATURE ASS'Y, 6905H $90.30
25 211026-9 B. BEARING 627LLB, N9514B $8.78
26 253192-6 F. WASHER 14, HR2400 $1.63
27 213262-3 O RING 18, 5005BA $1.96
28 634176-7 FIELD,6905H $40.39
29 263002-9 RUBBER PIN 4, 5007NK $0.86
30 263002-9 RUBBER PIN 4, 5007NK $0.86
31 214012-9 P. BEARING 6, 6800DBV $1.63
32 226100-0 GEAR COMPLETE, 6905H $29.47
33 214022-6 PLANE BEARING 8, 2012 $1.63
34 182471-4 HOUSING SET, 6905H $42.94
35 911148-2 P.H. SCREW M4X25, 5057KB $0.86
35 911546-0 P.H. SCREW M4X25, 6905H W/LOCKTITE $1.48
36 819003-1 MAKITA LABEL, 5057KB $1.48
37 856688-2 NAME PLATE, 6905H $1.21
38 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
38 265941-9 TAPPING SCREW M4X18, N1900B $0.86
39 687063-9 STRAIN RELIEF, 4323K $1.26
40 687051-6 STRAIN RELIEF, NHP1310 $1.26
41 682502-4 CORD GUARD 8-85, HP2010N $2.51
41 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
42 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
42 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
43 911546-0 P.H. SCREW M4X25, 6905H W/LOCKTITE $1.48
5001 810146-2 CAUTION LABEL, 6906 $1.17
