Makita 6904VH Impact Wrench & Driver Parts

Makita 6904VH Impact Wrench & Driver Parts Image

Makita 6904VH Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

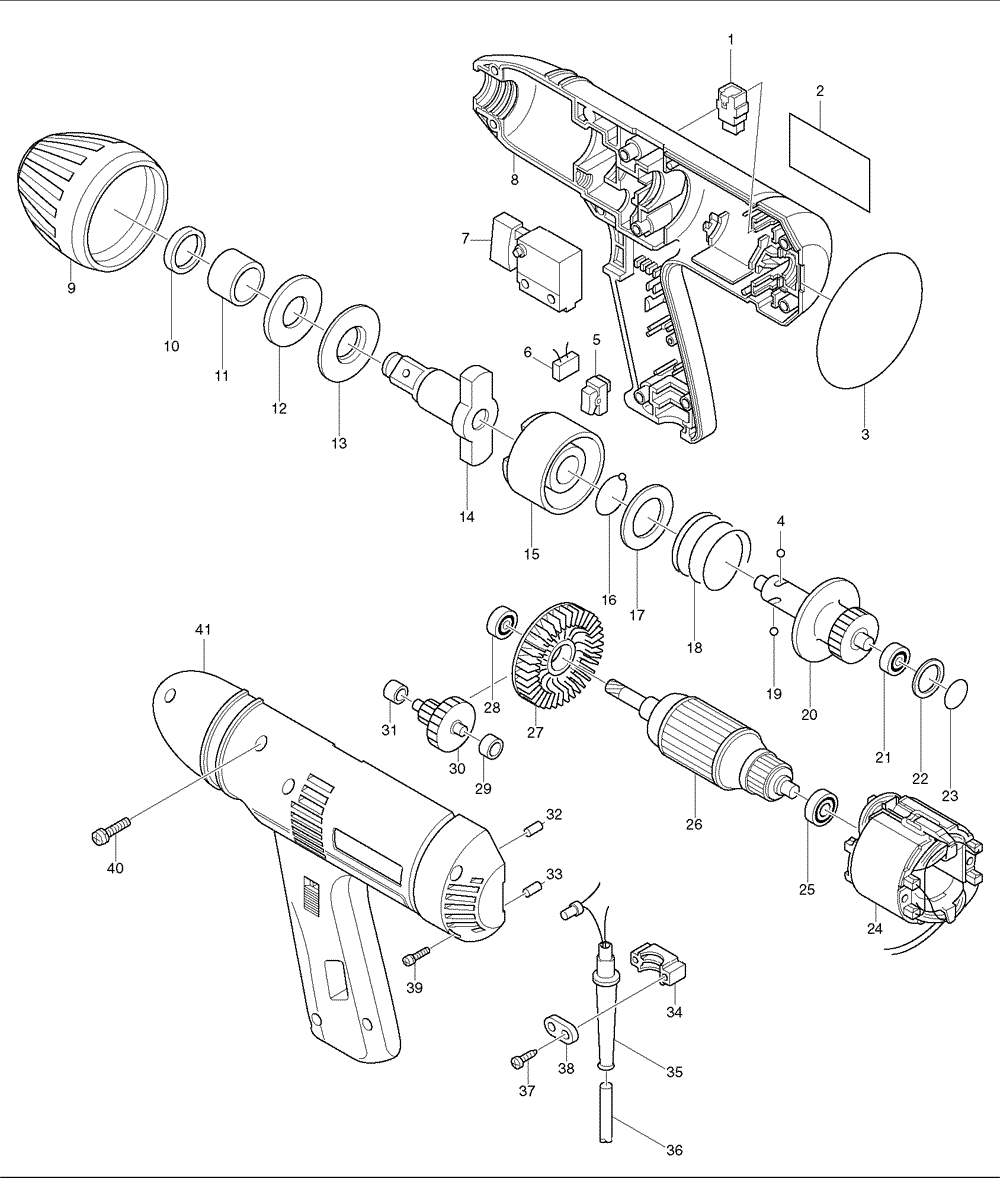

Makita 6904VH Impact Wrench & Driver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 195005-4 CARBON BRUSH 401, NHP1310 $11.53
2 856971-7 NAME PLATE, 6904VH $1.12
2 232188-0 LEAF SPRING, 6904VH $1.48
3 213719-4 O RING 62, 6904VH $1.96
4 216011-7 STEEL BALL 5.6, 6222DWE $0.86
5 651556-2 SWITCH, 6905H $16.04
7 651261-1 SWITCH, 6904VH $38.25
8 182444-7 HOUSING SET, 6904VH,T1 $39.06
8 182811-6 HOUSING SET, 6904VH $40.29
9 421382-1 BUMPER, 6904VH $5.92
10 213257-6 OIL SEAL 18, TW0350 $4.49
11 257623-7 SLEEVE 18, 6900DW $7.46
12 261089-5 RUBBER WASHER 18, 6904VH $4.16
13 267054-2 F. WASHER 18, 6900DW $5.92
14 324253-0 ANVIL, 6904VH $34.88
15 322459-4 HAMMER, 6904VH $41.61
16 216008-6 STEEL BALL 4.0, 5007NK $0.53
17 267088-5 FLAT WASHER 28, 6911D $5.92
18 233079-8 COMPRESSION SPRING 30, 6904VH $7.13
19 216011-7 STEEL BALL 5.6, 6222DWE $0.86
20 153210-9 SPINDLE COMPLETE, 6904VH,T1 $51.20
20 153232-9 SPINDLE ,6904VH,T2 $52.50
21 211051-0 BALL BEARING 609LLB HR2400 $15.27
21 210007-0 BALL BEARING 608VV, 6825 $13.07
22 253707-9 F. WASHER 16, 6802BV $1.34
22 267106-9 FLAT WASHER 18, HR2400 $2.18
23 213261-5 O RING 17, AN451 $3.50
23 213304-3 O RING 20, 6904VH $1.19
24 633156-0 FIELD 115V, 6904VH $28.86
25 211026-9 B. BEARING 627LLB, N9514B $8.78
26 511926-6 ARMATURE ASS'Y 115V, 6904VH $86.50
27 241881-5 FAN 52, 6904VH $4.16
28 211051-0 BALL BEARING 609LLB HR2400 $15.27
29 214017-9 P. BEARING 5, 6043D $1.26
30 226108-4 GEAR COMPLETE 16-38, 6904VH $28.15
31 214012-9 P. BEARING 6, 6800DBV $1.63
31 214033-1 PLANE BEARING 6, 6904VH $3.06
32 263002-9 RUBBER PIN 4, 5007NK $0.86
33 263002-9 RUBBER PIN 4, 5007NK $0.86
34 687051-6 STRAIN RELIEF, NHP1310 $1.26
35 682502-4 CORD GUARD 8-85, HP2010N $2.51
35 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
36 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
36 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
37 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
37 265941-9 TAPPING SCREW M4X18, N1900B $0.86
38 687063-9 STRAIN RELIEF, 4323K $1.26
39 911148-2 P.H. SCREW M4X25, 5057KB $0.86
40 911138-5 P.H. SCREW M4X20, 9218SB $0.86
40 911536-3 PAN HEAD SCREW M4X20, 6904VH $1.19
41 182444-7 HOUSING SET, 6904VH,T1 $39.06
41 182811-6 HOUSING SET, 6904VH $40.29
5001 322045-1 CLIP, 6905B $3.61
5002 323675-1 "RETAINING PIN FOR 1/2"" IMPACT WRENCH, 6905B" $3.06
