Makita 6891D Cordless Screwdriver Parts

Makita 6891D Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

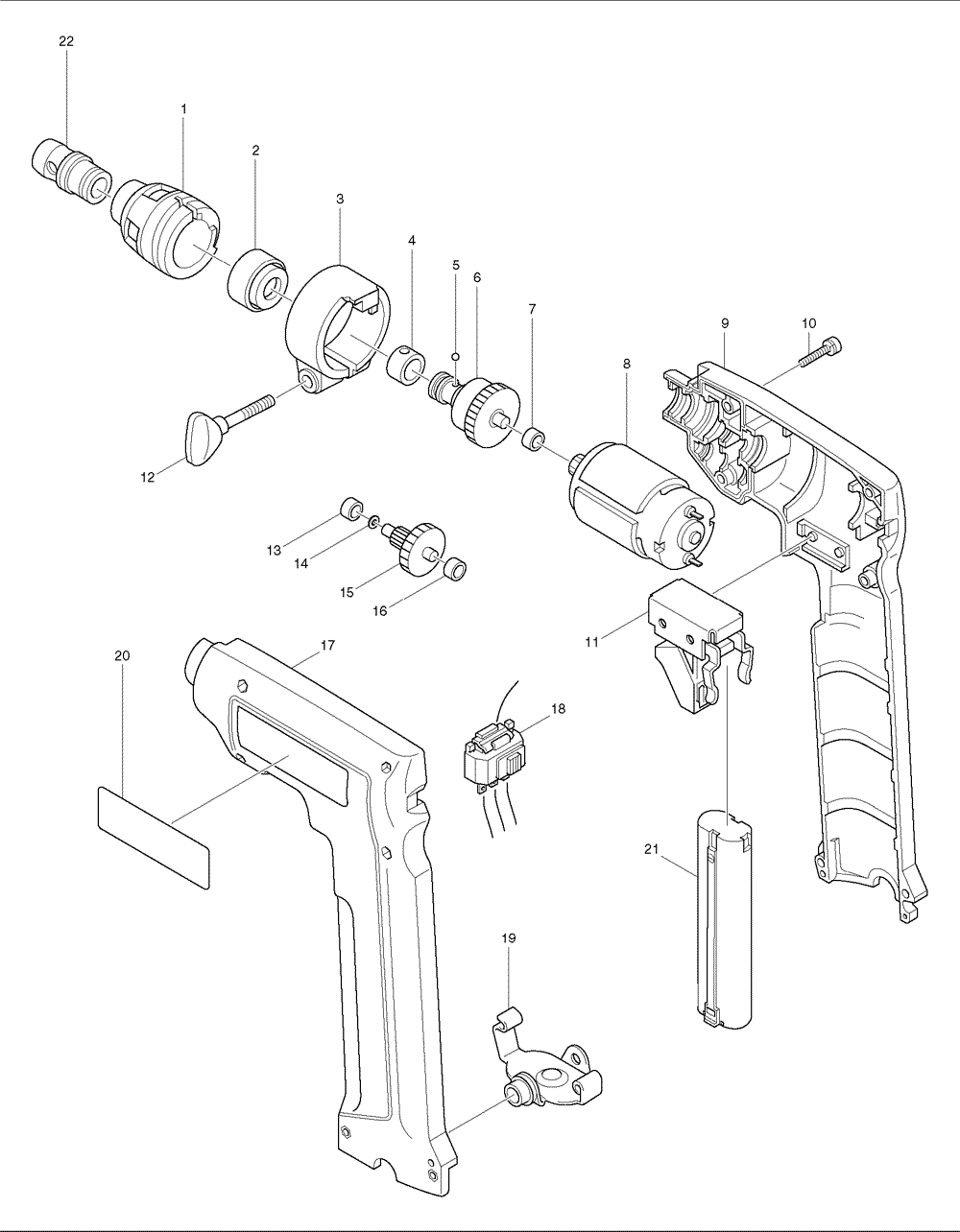

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	415149-7	LOCATOR, 6891D	$16.20
2	421314-8	DUST RING, 6891D	$1.63
3	410907-6	LOCK RING, 6891D	$5.92
4	232050-9	LEAF SPRING, 6820V	$1.48
5	216001-0	STEEL BALL 3.5, 6800DBV	$0.53
6	153169-0	GEAR COMPLETE, 6891D	$25.17
7	214017-9	P. BEARING 5, 6043D	$1.26
8	629581-1	MOTOR, 6093DW, T2	$34.98
9	182138-4	HOUSING SET, 6891DW (TYPE 2)	$32.23
10	911143-2	P.H. SCREW M4X22, 6211D	$0.86
11	651354-4	SWITCH C3BF-AJ FOR 6093D	$47.53
12	251880-9	SCREW M5X33, 6891D	$3.61
13	214017-9	P. BEARING 5, 6043D	$1.26
14	253811-4	F. WASHER 5, 5007NK	$1.34
15	226075-3	GEAR 15-52, 6891D	$13.84
16	214017-9	P. BEARING 5, 6043D	$1.26
17	182138-4	HOUSING SET, 6891DW (TYPE 2)	$32.23
20	855795-8	NAME PLATE, 6891D	$1.30
22	152407-7	STOPPER COMPLETE, 6820V	$13.18
401	784807-9	MAGNETIC BIT HOLDER, 6820V	$9.20
403	414938-7	BATTERY COVER, 6222DWE	$2.20
