Makita 6834 Electric Screwdriver Parts

Makita 6834 Electric Screwdriver Parts Image

Makita 6834 Parts
Autofeed, Reversible Screwdriver

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 6834
Autofeed, Reversible...
$254.99
Tool Diagram    (Click image to Zoom in) View larger Image

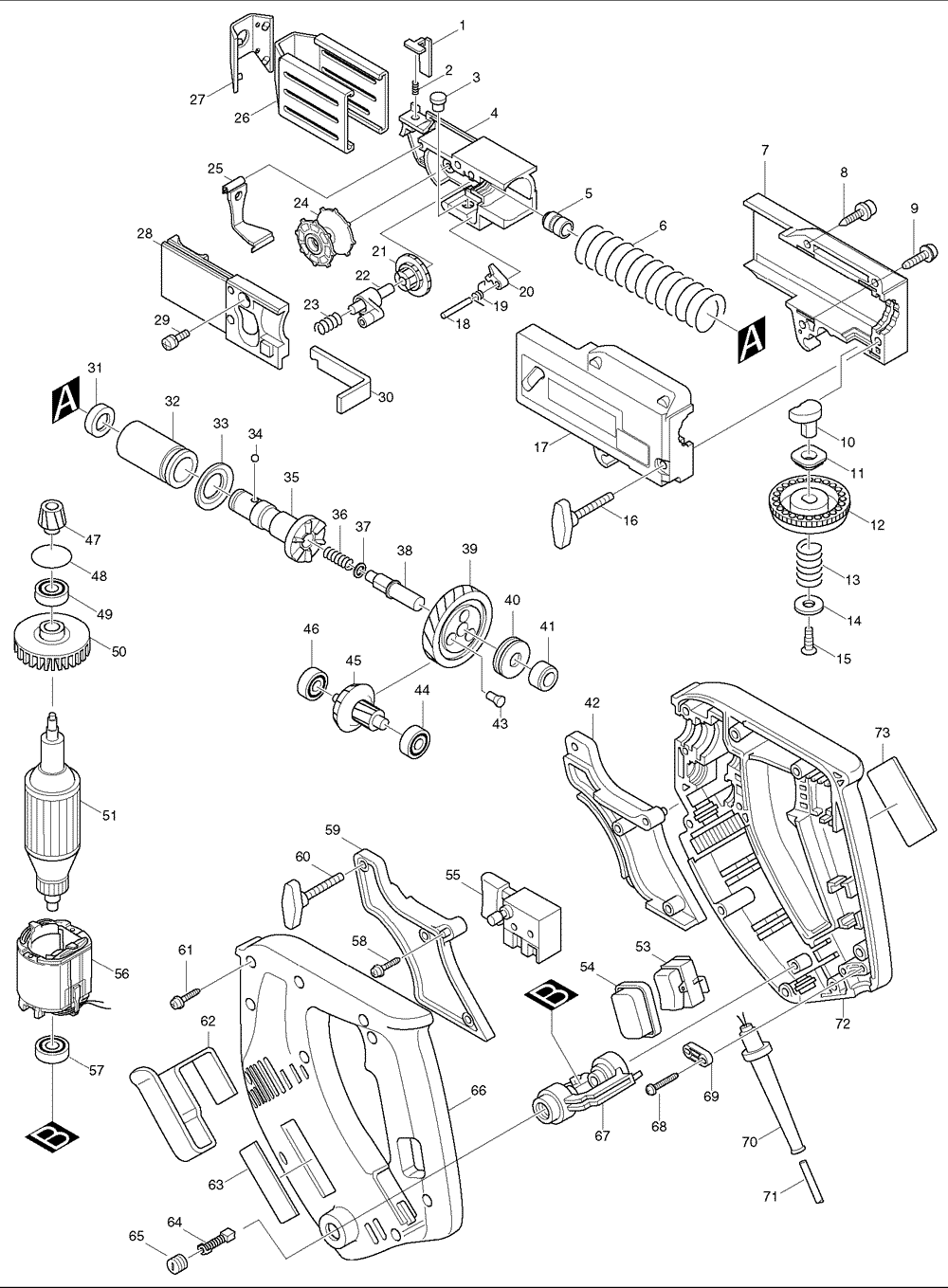

Makita 6834 Electric Screwdriver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 344625-3 LEVER, 6834 $1.63

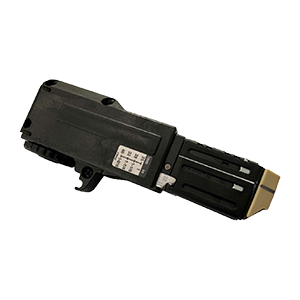

00 192851-6 CASING SET, 6834 $89.40
2 233211-4 COMP. SPRING 2, 6834 $0.86
4 192853-2 FEEDER BOX SET, 6834 $47.53
3 256451-7 PIN 6, 6834 $1.96
4 416500-4 FEEDER BOX, 6834 $5.48
5 257685-5 SLEEVE 5, 6834 $4.49
6 233210-6 COMP. SRPING 21, 6834 $3.61
7 182998-4 CASING SET, 6834 $20.88
8 266045-0 TAPPING SCREW 4X20, 9046 $1.19
9 266020-6 TAPPING SCREW 4x12, BO4556 $1.19
10 310061-5 SHIFTER PIN, 6834-T1 $5.92
10 310091-6 SHIFTER PIN, 6835DWA $6.80
11 257686-3 SLEEVE 8, 6834 $4.49
12 416517-7 KNOB 42, 6834-T1 $2.73
12 417056-0 DIAL 42, 6835DWA $2.84
13 233089-5 COMP. SPRING 12, 6832 $1.48
13 213105-9 O RING 11, HP2010N $0.53
14 267117-4 FLAT WASHER 6, 6830 $3.72
14 267201-5 FLAT WASHER 6, 6835DWA $2.18
15 912117-6 C.S.H. SCREW M4X12, BO4556 $0.53
17 182998-4 CASING SET, 6834 $20.88
18 256158-5 PIN 3, BJR181 $1.19
19 231636-6 TORSION SPRING 4, 6834 $1.63
20 310062-3 STOPPER, 6834 $5.92
21 226344-2 SPUR GEAR 16, 6834 $3.17
22 152580-3 RATCHET ARM CPL.,6834 $18.90
23 233212-2 COMP. SPRING 6, 6834 $0.86
24 416518-5 WHEEL, 6834 $4.49
25 162201-9 DUST COVER, 6834 $4.49
26 344628-7 STOPPER BASE, 6834 $8.01
27 421617-0 CAP, 6834 $3.06
28 152581-1 BOX COVER CPL.,6834 $5.48
29 911133-5 P.H. SCREW M4X18, N9501B $0.86
30 344627-9 PLATE, 6834 $5.92
31 421467-3 DUST COVER, 6830 $1.63
32 214162-0 PLANE BEARING 14, 6834 $8.01
33 421618-8 RING 15, 6834 $2.84
34 216001-0 STEEL BALL 3.5, 6800DBV $0.53
35 153735-3 SPINDLE COMPLETE,6834 $26.38
35 323760-0 SPINDLE, 6834 $17.69
36 233096-8 COMPRESSION SPRING 5, AN451 $1.63
36 233393-2 COMPRESSION SPRING 8, 6834 $1.63
37 267184-9 FLAT WASHER 6, 6834 $1.34
37 267277-2 FLAT WASHER 8, 6834 $1.34
38 268032-5 PIN, 6834 $5.92
39 152622-3 GEAR COMPLETE, 6834-T2 $27.37
39 152995-4 GEAR COMPLETE, 6834 $25.17
39 153739-5 GEAR COMPLETE, 6834 $26.16
39 226486-2 HELICAL GEAR 59, 6834 T1 $20.55
40 212042-4 T. N. BEARING 821, 6830 $9.33
41 214028-4 PLANE BEARING 8, 6830 $2.84
42 182984-5 SCREW GUIDE SET, 6834 $5.48
43 256439-7 PIN 4, 6821-T1 $2.73
43 256467-2 PIN 4, 6821-T2 $1.74
44 211014-6 B. BEARING 606, 6826 $13.07
45 226823-0 GEAR CPL. 9-22, 6834 $29.47
46 211014-6 B. BEARING 606, 6826 $13.07
47 226704-8 SPIRAL BEVEL GEAR 15, 6830 $29.37
48 213380-7 O RING 24, 6805BV $1.96
48 213008-7 O RING, 3901 $0.86
49 211061-7 B. BEARING 6000LLB, 6222DWE $10.98
50 241869-5 FAN 55, 5621DWA $4.16
51 517061-8 ARMATURE ASS'Y 115V, 6830 $83.80
53 651569-3 SWITCH, 6834 $14.61
54 421621-9 DUST COVER, 6834 $3.06
55 651283-1 SWITCH, 6834 $17.25
56 633256-6 FIELD 115V, 6830 $30.80
57 211026-9 B. BEARING 627LLB, N9514B $8.78
58 266045-0 TAPPING SCREW 4X20, 9046 $1.19
59 182984-5 SCREW GUIDE SET, 6834 $5.48
61 266045-0 TAPPING SCREW 4X20, 9046 $1.19
62 344056-6 HOOK, 6830 $14.94
63 819063-3 MAKITA LABEL, DA3010F $0.96
64 195008-8 CARBON BRUSH 408 SET, 3901 $8.12
65 643550-8 BRUSH CAP , 9031 $1.63
66 182601-7 HOUSING SET, 6830 $42.63
67 152433-6 HOLDER ARM COMPLETE, 6830 $15.93
68 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
69 687063-9 STRAIN RELIEF, 4323K $1.26
70 682502-4 CORD GUARD 8-85, HP2010N $2.51
70 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
71 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
71 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
72 182601-7 HOUSING SET, 6830 $42.63
73 859469-3 NAME PLATE 6834 $1.48
74 310091-6 SHIFTER PIN, 6835DWA $6.80
5001 810134-9 CAUTION LABEL, 3709 $0.93
