Makita 6830 Electric Screwdriver Parts

Makita 6830 Electric Screwdriver Parts Image

Makita 6830 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

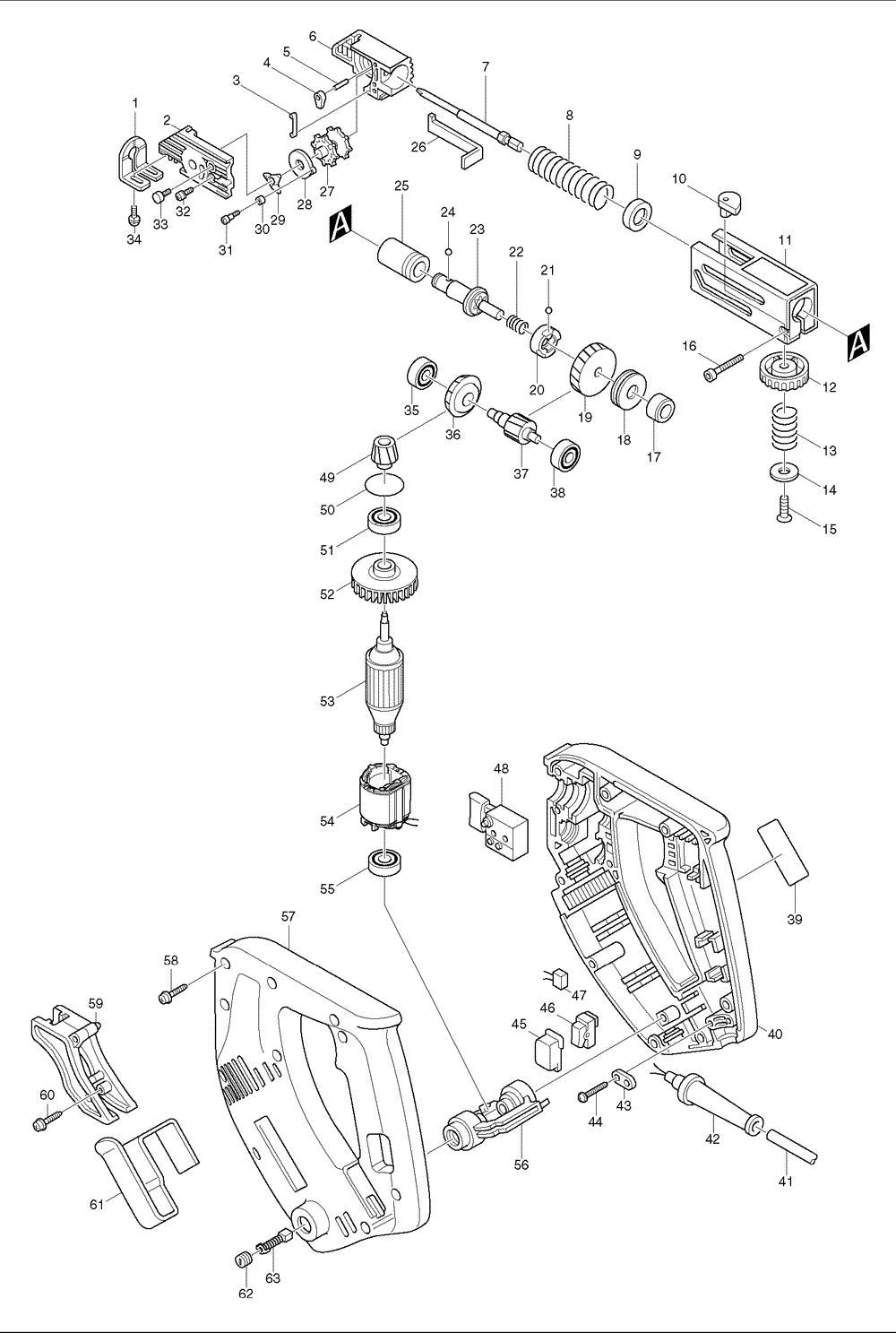

Makita 6830 Electric Screwdriver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 344054-0 STOPPER PLATE, 6830 $7.46
5 256254-9 PIN 3, 4323 $0.86
2 152502-3 BOX COVER, 6830 $7.46
00 643932-4 BRUSH HOLDER 6X9 $2.84
3 232132-7 LEAF SPRING, 6830 $4.16
4 311923-0 STOPPER, 6830 $8.78
5 256254-9 PIN 3, 4323 $0.86
6 152501-5 FEEDER BOX COMPLETE, 6830 $8.78
8 233066-7 COMPRESSION SPRING 21, 6830 $4.93
9 421467-3 DUST COVER, 6830 $1.63
10 310008-9 SHIFTER PIN, 6830 $17.25
11 150565-3 CASING COMPLETE, 6830 $64.30
12 415829-5 KNOB 40, 6830 $3.06
13 233089-5 COMP. SPRING 12, 6832 $1.48
14 267117-4 FLAT WASHER 6, 6830 $3.72
15 912117-6 C.S.H. SCREW M4X12, BO4556 $0.53
16 922146-1 H.S.H. BOLT M4X25, 6830 $1.34
17 214028-4 PLANE BEARING 8, 6830 $2.84
18 212042-4 T. N. BEARING 821, 6830 $9.33
19 226413-9 HELICAL GEAR 55, 6830 $39.88
20 223095-8 CLUTCH CAM, 6830 $20.33
21 216008-6 STEEL BALL 4.0, 5007NK $0.53
22 233006-5 COMPRESSION SPRING 9, 6830 $3.61
23 223094-0 SPINDLE, 6830 $33.55
24 216001-0 STEEL BALL 3.5, 6800DBV $0.53
25 214160-4 PLANE BEARING 14, 6830 $9.33
26 344308-5 PLATE, 6830 $5.48
27 311921-4 RATCHET WHEEL, 6830 $36.21
28 311976-9 RATCHET DISC, 6830 $26.16
29 232133-5 LEAF SPRING, 6830 $4.16
30 257664-3 SLEEVE 4, 6830 $3.06
31 265036-8 FLAT HEAD SCREW M3X5, 6830 $3.61
32 911133-5 P.H. SCREW M4X18, N9501B $0.86
33 922107-1 H.S.H. BOLT M4X8, 4329K $1.34
34 922107-1 H.S.H. BOLT M4X8, 4329K $1.34
34 922132-2 H.S.H. BOLT M4X18, 4300DW $1.08
35 211014-6 B. BEARING 606, 6826 $13.07
36 226705-6 SPIRAL BEVEL GEAR 22, 6830 $33.15
37 226412-1 HELICAL GEAR 14, 6830 $29.37
38 211014-6 B. BEARING 606, 6826 $13.07
40 182601-7 HOUSING SET, 6830 $42.63
41 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
41 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
42 682502-4 CORD GUARD 8-85, HP2010N $2.51
42 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
43 687063-9 STRAIN RELIEF, 4323K $1.26
44 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
45 421621-9 DUST COVER, 6834 $3.06
45 421460-7 DUST COVER, HR2400 $1.63
46 651556-2 SWITCH, 6905H $16.04
48 650206-6 SWITCH, JR3000V $23.96
49 226704-8 SPIRAL BEVEL GEAR 15, 6830 $29.37
50 213380-7 O RING 24, 6805BV $1.96
50 213008-7 O RING, 3901 $0.86
51 211061-7 B. BEARING 6000LLB, 6222DWE $10.98
52 241869-5 FAN 55, 5621DWA $4.16
53 517061-8 ARMATURE ASS'Y 115V, 6830 $83.80
54 633256-6 FIELD 115V, 6830 $30.80
55 211026-9 B. BEARING 627LLB, N9514B $8.78
56 152433-6 HOLDER ARM COMPLETE, 6830 $15.93
57 182601-7 HOUSING SET, 6830 $42.63
58 266045-0 TAPPING SCREW 4X20, 9046 $1.19
59 415352-0 SCREW GUIDE, 6830 $5.92
60 266045-0 TAPPING SCREW 4X20, 9046 $1.19
61 344056-6 HOOK, 6830 $14.94
62 643550-8 BRUSH CAP , 9031 $1.63
63 195008-8 CARBON BRUSH 408 SET, 3901 $8.12
64 819063-3 MAKITA LABEL, DA3010F $0.96
1002 783201-2 HEX WRENCH 3, AF501 $3.40
1003 410048-8 WRENCH HOLDER, JR3000V $1.26
