Makita 6826N Electric Screwdriver Parts

Makita 6826N Electric Screwdriver Parts Image

Makita 6826N Parts
Variable Speed, Reversible Heavy Duty Screwdriver

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 6826N
Variable Speed, Reve...
$151.99
Tool Diagram    (Click image to Zoom in) View larger Image

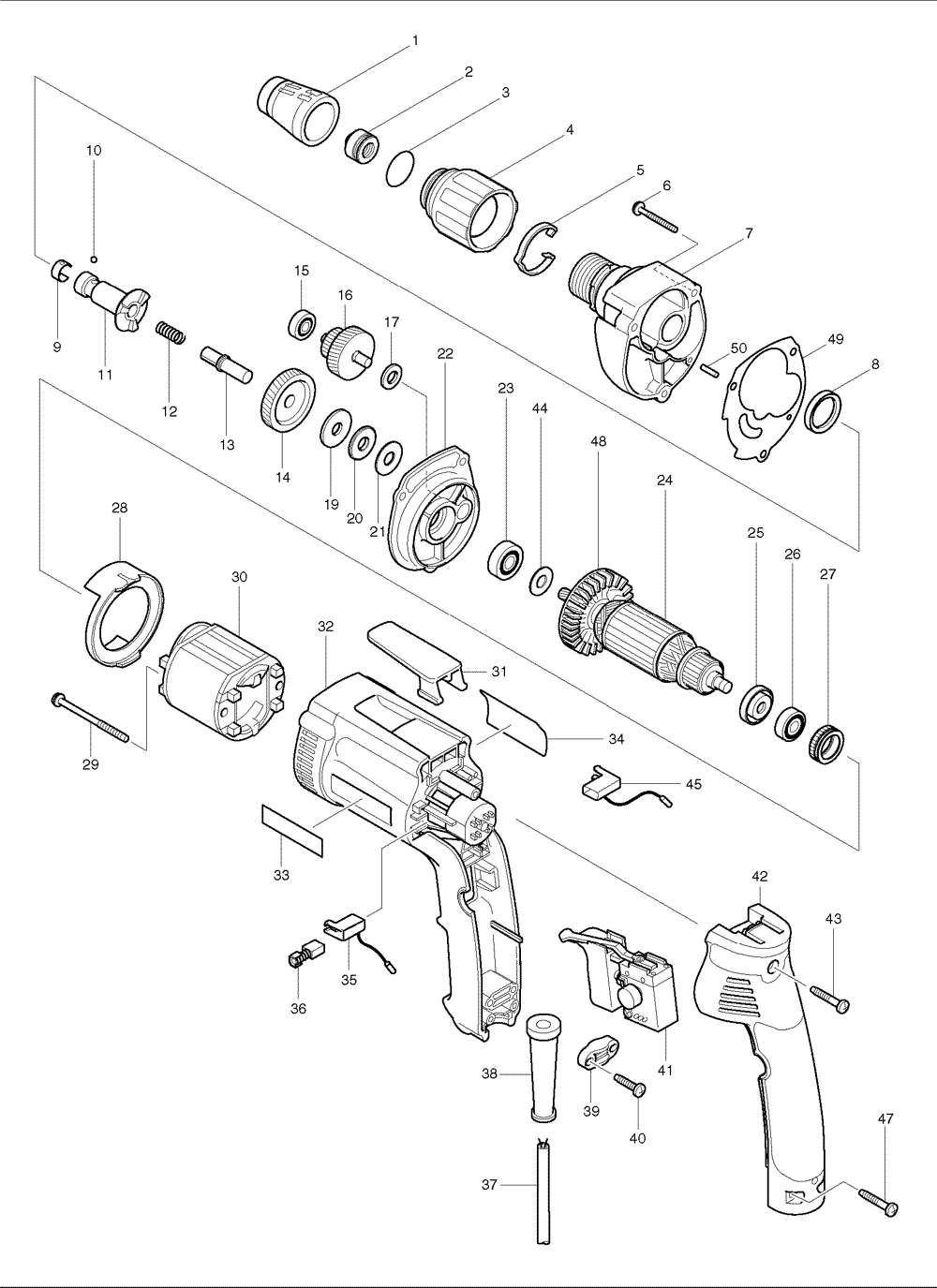

Makita 6826N Electric Screwdriver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 152822-5 LOCATOR CPL. 5/16, 6826 $16.60
2 421775-2 DUST SEAL RING, 6826 $1.52
3 213373-4 O RING 22, GEO600 $1.19
4 416994-3 LOCK RING., 6824N $3.06
5 232154-7 LEAF SPRING, 6823 $4.16
6 266050-7 P.T. SCREW 4X30, 4304 $1.19
7 153497-3 GEAR HOUSING CPL., 6323N $9.22
8 421766-3 RING 20, 6827 $0.97
9 232050-9 LEAF SPRING, 6820V $1.48
10 216001-0 STEEL BALL 3.5, 6800DBV $0.53
11 324328-5 SPINDLE, 6826N $29.37
12 233126-5 COMP. SPRING 6, FS4200 $1.48
13 268099-3 COLLARED PIN 8, 6824N $1.74
14 227090-0 SPUR GEAR 36, 6826N $29.37
15 211014-6 B. BEARING 606, 6826 $13.07
15 211012-0 BALL BEARING 606ZZ, HR2410 $15.27
16 226133-5 GEAR CPL.17-35, 6823/23TP $22.75
17 267017-8 F. WASHER, JS8000 $2.18
19 216213-5 WASHER 824, 6824 $2.18
20 216415-3 THRUST NEEDLE GAUGE 821, 6824 $4.49
21 216212-7 WASHER 821, FS4200 $2.18
22 153499-9 GEAR HOUSING COVER CPL., 6823N $15.27
23 210005-4 BALL BEARING 608DDW, 9031 $13.07
24 510053-6 ARMATURE ASS'Y 115V, 6826N $38.45
25 681636-0 INSULATION WASHER, GA4030 $3.72
26 211021-9 BALL BEARING 607LLB, LS1013 $8.78
27 421479-6 RUBBER RING 19, JN1601 $4.49
28 416993-5 BAFFLE PLATE, 6823 $1.63
29 266147-2 TAPPING SCREW 4X55, 6824 $1.96
30 633441-1 FIELD, JS8000 $12.63
31 417625-7 HOOK, 6827 $2.84
32 183285-4 MOTOR HOUSING SET, 6827 $16.04
32 450718-7 MOTOR HOUSING, 6827 $16.04
33 819063-3 MAKITA LABEL, DA3010F $0.96
34 850433-7 NAME PLATE, 6826N $1.21
35 643952-8 BRUSH HOLDER, 6823/6823TP $3.06
36 195007-0 CARBON BRUSH SET CB-407, BO5030K $8.12
37 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
37 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
38 682559-5 CORD GUARD 8, 6824 $2.51
38 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
39 687063-9 STRAIN RELIEF, 4323K $1.26
40 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
41 651978-6 SWITCH, 6823N $33.25
42 151961-8 HANDLE COVER COMPLETE, 6825 $17.25
42 158710-4 HANDLE COVER CPL., JS8000 $17.25
44 253139-0 F. WASHER 8, 6510LVR $1.34
45 643953-6 BRUSH HOLDER, 6823N,6826N $3.06
48 240022-0 FAN 52, JS1300 $2.84
49 442136-3 GASKET , 6827 $2.84
50 256157-7 PIN 3, 6222DWE $0.86
1001 784804-5 5/16 NUT SETTER, 6802BV $8.80
5001 810134-9 CAUTION LABEL, 3709 $0.93
