Makita 6826 Electric Screwdriver Parts

Makita 6826 Electric Screwdriver Parts Image

Makita 6826 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

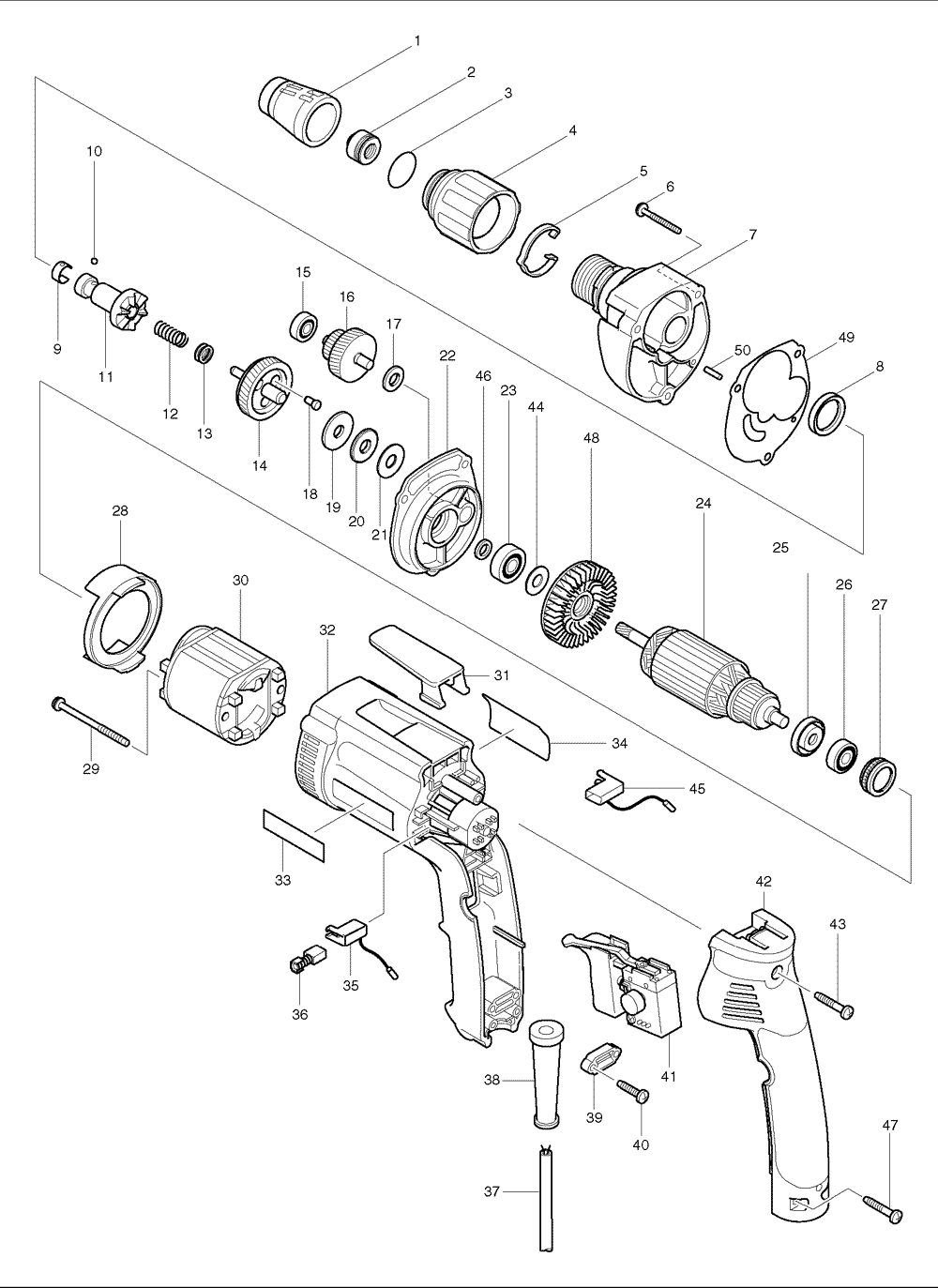

Makita 6826 Electric Screwdriver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 152822-5 LOCATOR CPL. 5/16, 6826 $16.60
2 421775-2 DUST SEAL RING, 6826 $1.52
3 213373-4 O RING 22, GEO600 $1.19
4 416994-3 LOCK RING., 6824N $3.06
5 232154-7 LEAF SPRING, 6823 $4.16
6 266050-7 P.T. SCREW 4X30, 4304 $1.19
7 152880-1 GEAR HOUSING COMPLETE, 6826 $23.41
8 421766-3 RING 20, 6827 $0.97
9 232050-9 LEAF SPRING, 6820V $1.48
10 216001-0 STEEL BALL 3.5, 6800DBV $0.53
11 152838-0 SPINDLE CPL. 6826 $26.38
12 233257-0 COMP. SPRING 8., 6823 $1.48
13 267202-3 FLAT WASHER 8., 6823 $1.34
14 152837-2 GEAR COMPLETE, 6826 $24.84
15 211014-6 B. BEARING 606, 6826 $13.07
15 211012-0 BALL BEARING 606ZZ, HR2410 $15.27
16 226133-5 GEAR CPL.17-35, 6823/23TP $22.75
17 267017-8 F. WASHER, JS8000 $2.18
18 256439-7 PIN 4, 6821-T1 $2.73
18 256467-2 PIN 4, 6821-T2 $1.74
19 216213-5 WASHER 824, 6824 $2.18
20 216415-3 THRUST NEEDLE GAUGE 821, 6824 $4.49
21 216212-7 WASHER 821, FS4200 $2.18
22 152912-4 GEAR HOUSING COVER, 6826 $26.16
23 210007-0 BALL BEARING 608VV, 6825 $13.07
24 517321-8 ARMATURE ASS'Y , 6824,JS8000 $62.10
25 681636-0 INSULATION WASHER, GA4030 $3.72
26 211021-9 BALL BEARING 607LLB, LS1013 $8.78
27 421479-6 RUBBER RING 19, JN1601 $4.49
28 416993-5 BAFFLE PLATE, 6823 $1.63
29 266147-2 TAPPING SCREW 4X55, 6824 $1.96
30 633441-1 FIELD, JS8000 $12.63
31 417625-7 HOOK, 6827 $2.84
32 183285-4 MOTOR HOUSING SET, 6827 $16.04
32 450718-7 MOTOR HOUSING, 6827 $16.04
33 819063-3 MAKITA LABEL, DA3010F $0.96
34 860146-2 NAME PLATE, 6826 $1.12
35 643952-8 BRUSH HOLDER, 6823/6823TP $3.06
36 195007-0 CARBON BRUSH SET CB-407, BO5030K $8.12
37 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
37 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
38 682559-5 CORD GUARD 8, 6824 $2.51
38 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
39 687063-9 STRAIN RELIEF, 4323K $1.26
40 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
41 651978-6 SWITCH, 6823N $33.25
42 151961-8 HANDLE COVER COMPLETE, 6825 $17.25
42 158710-4 HANDLE COVER CPL., JS8000 $17.25
44 253139-0 F. WASHER 8, 6510LVR $1.34
45 643953-6 BRUSH HOLDER, 6823N,6826N $3.06
46 262087-2 RING 8, HP2050F $5.37
48 240022-0 FAN 52, JS1300 $2.84
49 442136-3 GASKET , 6827 $2.84
50 256157-7 PIN 3, 6222DWE $0.86
1001 784804-5 5/16 NUT SETTER, 6802BV $8.80
