Makita 6825 Electric Screwdriver Parts

Makita 6825 Electric Screwdriver Parts Image

Makita 6825 Parts
Variable Speed Reversible Drywall Screwdriver

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 6825
Variable Speed Rever...
$94.99
Tool Diagram    (Click image to Zoom in) View larger Image

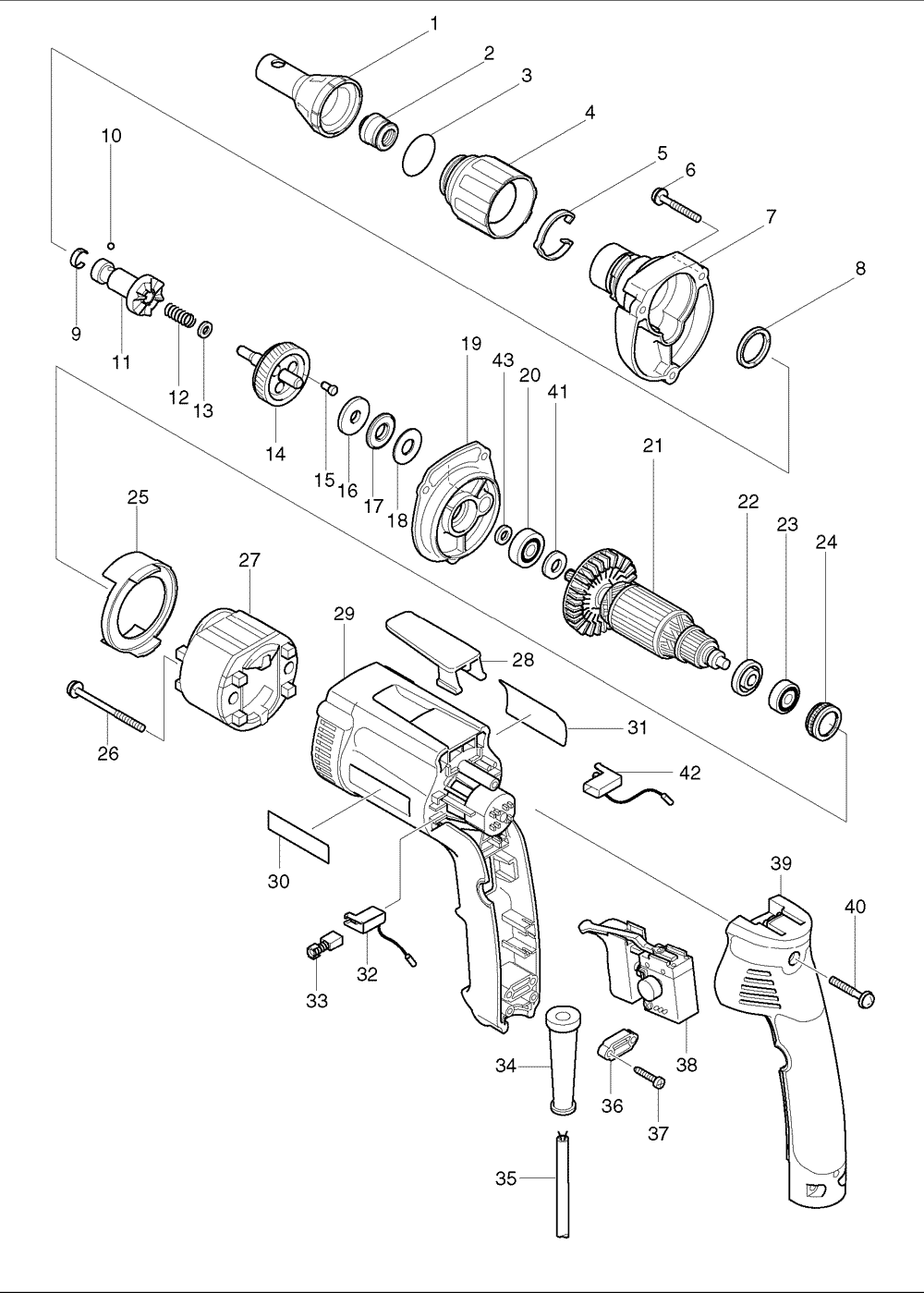

Makita 6825 Electric Screwdriver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 151726-8 LOCATOR CPL., 6823 $16.60
14 151791-7 GEAR COMPL., 6825 $19.78
2 421631-6 DUST SEAL RING, 6823 $1.63
21 517326-8 ARMATURE ASSY 115V, 6825 $63.30
3 213373-4 O RING 22, GEO600 $1.19
4 416994-3 LOCK RING., 6824N $3.06
5 232154-7 LEAF SPRING, 6823 $4.16
7 151720-0 GEAR HOUSING CPL., 6824, 6825 $15.27
8 421766-3 RING 20, 6827 $0.97
9 232050-9 LEAF SPRING, 6820V $1.48
10 216001-0 STEEL BALL 3.5, 6800DBV $0.53
11 151788-6 SPINDLE CPL,6823 $21.76
12 233257-0 COMP. SPRING 8., 6823 $1.48
13 267202-3 FLAT WASHER 8., 6823 $1.34
14 151791-7 GEAR COMPL., 6825 $19.78
15 256439-7 PIN 4, 6821-T1 $2.73
15 256467-2 PIN 4, 6821-T2 $1.74
16 216213-5 WASHER 824, 6824 $2.18
17 216415-3 THRUST NEEDLE GAUGE 821, 6824 $4.49
18 216212-7 WASHER 821, FS4200 $2.18
19 151722-6 GEAR HOUSING COVER CPL., 6824 $9.22
20 210007-0 BALL BEARING 608VV, 6825 $13.07
21 517326-8 ARMATURE ASSY 115V, 6825 $63.30
22 681636-0 INSULATION WASHER, GA4030 $3.72
23 211021-9 BALL BEARING 607LLB, LS1013 $8.78
24 421479-6 RUBBER RING 19, JN1601 $4.49
25 416993-5 BAFFLE PLATE, 6823 $1.63
26 266147-2 TAPPING SCREW 4X55, 6824 $1.96
27 633441-1 FIELD, JS8000 $12.63
28 417625-7 HOOK, 6827 $2.84
29 151793-3 MOTOR HOUSING CPL.,6825-T1 $13.84
29 151960-0 MOTOR HOUSING CMPLT., 6825 $15.93
30 819063-3 MAKITA LABEL, DA3010F $0.96
31 860145-4 NAME PLATE, 6825 $1.12
32 643948-9 BRUSH HOLDER, 6823 $2.84
33 195007-0 CARBON BRUSH SET CB-407, BO5030K $8.12
34 682559-5 CORD GUARD 8, 6824 $2.51
34 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
35 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
35 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
36 687063-9 STRAIN RELIEF, 4323K $1.26
37 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
38 651978-6 SWITCH, 6823N $33.25
39 151961-8 HANDLE COVER COMPLETE, 6825 $17.25
39 158710-4 HANDLE COVER CPL., JS8000 $17.25
39 151725-0 HANDLE COVER CPL., 6823 $13.18
41 253139-0 F. WASHER 8, 6510LVR $1.34
42 643951-0 BRUSH HOLDER, 6824 $3.06
43 262087-2 RING 8, HP2050F $5.37
1002 784801-1 MAGNETIC BIT HOLDER, 6801DBV $9.20
5001 810134-9 CAUTION LABEL, 3709 $0.93
