Makita 6824NA Electric Screwdriver Parts

Makita 6824NA Electric Screwdriver Parts Image

Makita 6824NA Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

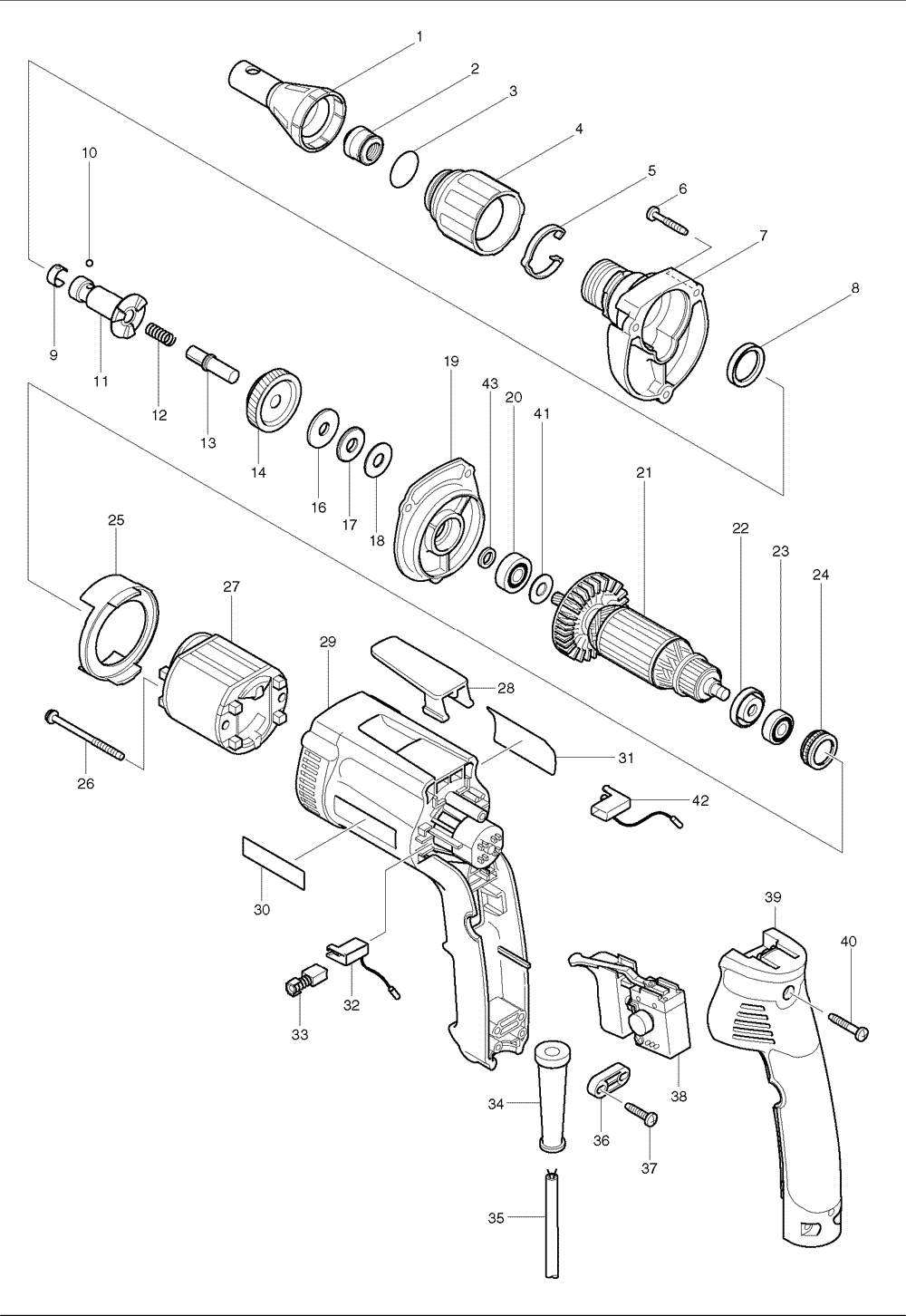

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	151726-8	LOCATOR CPL., 6823	$16.60
2	421631-6	DUST SEAL RING, 6823	$1.63
3	213373-4	O RING 22, GEO600	$1.19
4	416994-3	LOCK RING., 6824N	$3.06
5	232154-7	LEAF SPRING, 6823	$4.16
7	153498-1	GEAR HOUSING CPL., 6824N	$8.45
8	421766-3	RING 20, 6827	$0.97
9	232050-9	LEAF SPRING, 6820V	$1.48
10	216001-0	STEEL BALL 3.5, 6800DBV	$0.53
11	324290-4	SPINDLE, 6824N	$19.78
12	233126-5	COMP. SPRING 6, FS4200	$1.48
13	268099-3	COLLARED PIN 8, 6824N	$1.74
14	226566-4	HELICAL GEAR 43, 6824N	$13.07
16	216213-5	WASHER 824, 6824	$2.18
17	216415-3	THRUST NEEDLE GAUGE 821, 6824	$4.49
18	216212-7	WASHER 821, FS4200	$2.18
19	153500-0	GEAR HOUSING COVER CPL., 6824N	$11.09
20	210007-0	BALL BEARING 608VV, 6825	$13.07
21	517321-8	ARMATURE ASS'Y , 6824,JS8000	$62.10
22	681636-0	INSULATION WASHER, GA4030	$3.72
23	211021-9	BALL BEARING 607LLB, LS1013	$8.78
24	421479-6	RUBBER RING 19, JN1601	$4.49
25	416993-5	BAFFLE PLATE, 6823	$1.63
26	266147-2	TAPPING SCREW 4X55, 6824	$1.96
27	633441-1	FIELD, JS8000	$12.63
28	417625-7	HOOK, 6827	$2.84
29	183285-4	MOTOR HOUSING SET, 6827	$16.04
29	450718-7	MOTOR HOUSING, 6827	$16.04
30	819063-3	MAKITA LABEL, DA3010F	$0.96
32	643948-9	BRUSH HOLDER, 6823	$2.84
33	195007-0	CARBON BRUSH SET CB-407, BO5030K	$8.12
34	682559-5	CORD GUARD 8, 6824	$2.51
34	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
35	664899-3	POWER SUPPLY CORD, 6824NA	$30.60
36	687063-9	STRAIN RELIEF, 4323K	$1.26
37	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
38	651978-6	SWITCH, 6823N	$33.25
39	151961-8	HANDLE COVER COMPLETE, 6825	$17.25
39	158710-4	HANDLE COVER CPL., JS8000	$17.25
41	253139-0	F. WASHER 8, 6510LVR	$1.34
42	643951-0	BRUSH HOLDER, 6824	$3.06
43	262087-2	RING 8, HP2050F	$5.37
1002	784801-1	MAGNETIC BIT HOLDER, 6801DBV	$9.20
