Makita 6820V Electric Screwdriver Parts

Makita 6820V Electric Screwdriver Parts Image

Makita 6820V Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

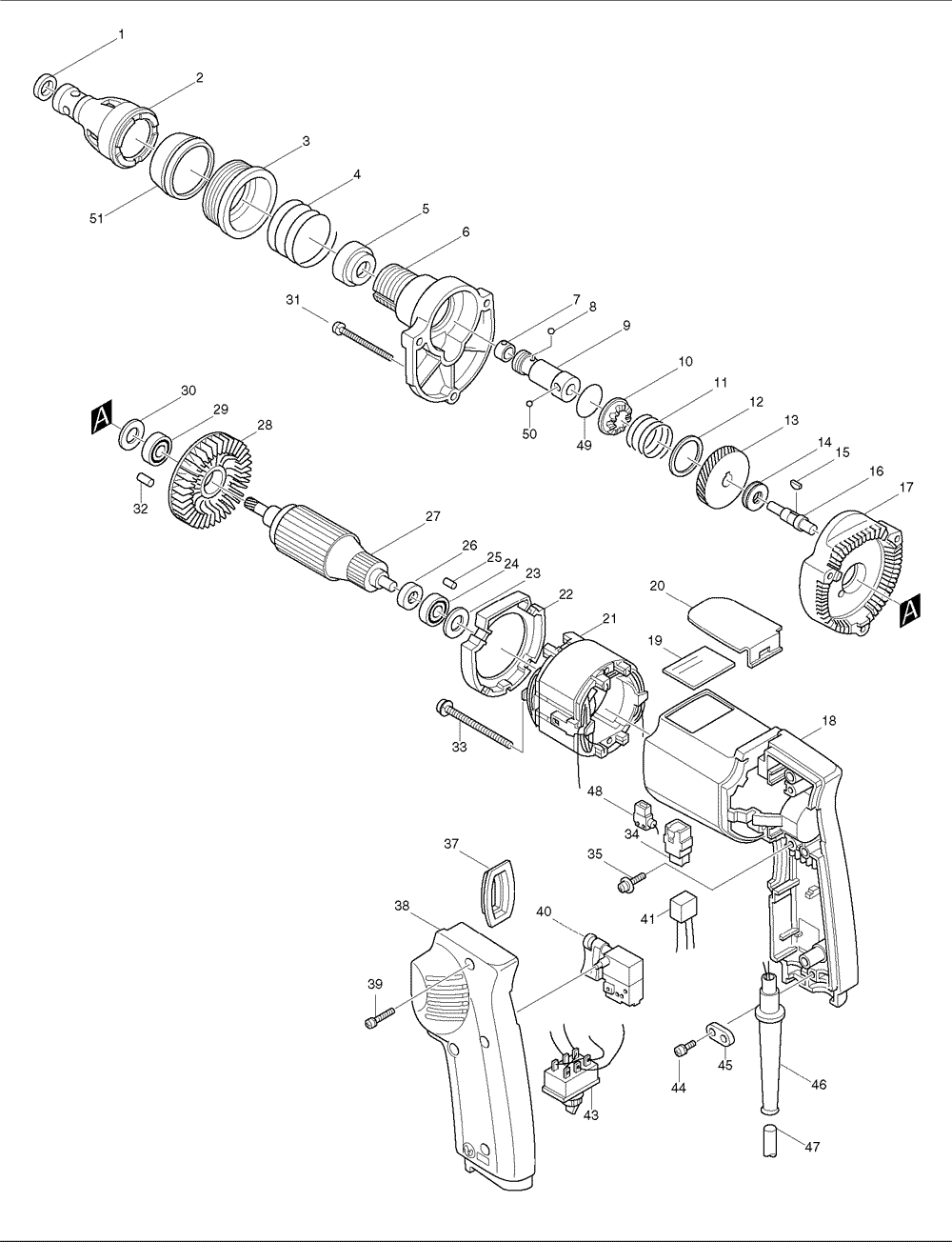

Makita 6820V Electric Screwdriver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
21 633361-9 FIELD, 6302 $27.04
1 261058-6 SPONGE WASHER 11, 6820V $1.01
2 122450-0 LOCATOR ASSEMBLY, 6820V $16.60
27 511836-7 ARMATURE ASS'Y 115V, 6302H,6303H $71.80
3 415199-2 LOCK RING, 6820BV - T2 $4.49
4 231280-9 COMP. SPRING 32, 6820V $2.07
5 421315-6 FLINGER, 6820V $1.63
6 157727-4 GEAR HOUSING, 6820V $16.81
7 232050-9 LEAF SPRING, 6820V $1.48
8 216001-0 STEEL BALL 3.5, 6800DBV $0.53
9 134436-2 SPINDLE, 6820V $33.55
10 223075-4 CLUTCH CAM, 6820V $13.18
11 231434-8 COMP. SPRING 22, 6820V $1.63
12 253341-5 T. WASHER 22, 6820V $1.63
13 221753-0 HELICAL GEAR 46, 6820V $19.01
14 212057-1 T.N. BEARING 1023, 6801DBV $7.46
15 254031-3 WOODRUFF KEY 3, 6801DBV $1.26
16 322142-3 GEAR SHAFT, 6820V $12.19
17 157726-6 GEAR HOUSING COVER, 6820V $10.76
18 157725-8 MOTOR HOUSING, 6820V $27.59
19 855890-4 NAME PLATE, 6820V $1.12
20 343407-0 HOOK, 6820V $4.49
21 633361-9 FIELD, 6302 $27.04
22 414594-3 BAFFLE PLATE, 6302H,6303H $1.63
23 253192-6 F. WASHER 14, HR2400 $1.63
24 211028-5 B. BEARING 627LB, 6510LVR $8.78
25 263014-2 RUBBER PIN 4, 9217SPC $1.19
27 511836-7 ARMATURE ASS'Y 115V, 6302H,6303H $71.80
28 241881-5 FAN 52, 6904VH $4.16
29 211031-6 BALL BEARING 608LLB, 9227C $10.98
29 211033-2 B. BEARING 608LB, 5091D $8.78
30 253192-6 F. WASHER 14, HR2400 $1.63
31 911173-3 P.H. SCREW M4X45, 6906 $1.19
32 263002-9 RUBBER PIN 4, 5007NK $0.86
33 911581-8 PAN HEAD SCREW M4X55, 6820V $1.48
34 195005-4 CARBON BRUSH 401, NHP1310 $11.53
35 911124-6 P.H. SCREW M4X14, 6402 $0.86
37 411852-8 SWITCH COVER, 6805BV $1.63
38 150621-9 HANDLE COVER, 6820V $10.32
39 911153-9 P.H. SCREW M4X28, JR3000V $0.86
44 911133-5 P.H. SCREW M4X18, N9501B $0.86
45 687002-9 STRAIN RELIEF, 9217SPC $0.97
46 682502-4 CORD GUARD 8-85, HP2010N $2.51
46 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
47 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
47 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
48 686015-7 RECEPTACLE SLEEVE, 6820V $0.75
49 213008-7 O RING, 3901 $0.86
49 421392-8 RING 20, 6820V $0.97
50 216008-6 STEEL BALL 4.0, 5007NK $0.53
51 421445-3 ADJUST SLEEVE COVER, 6820V-T2 $3.06
401 784807-9 MAGNETIC BIT HOLDER, 6820V $9.20
900 421144-7 DUST COVER, 6510LVR $3.06
